Summary of Contents for Miele professional PW 5105 Vario LP

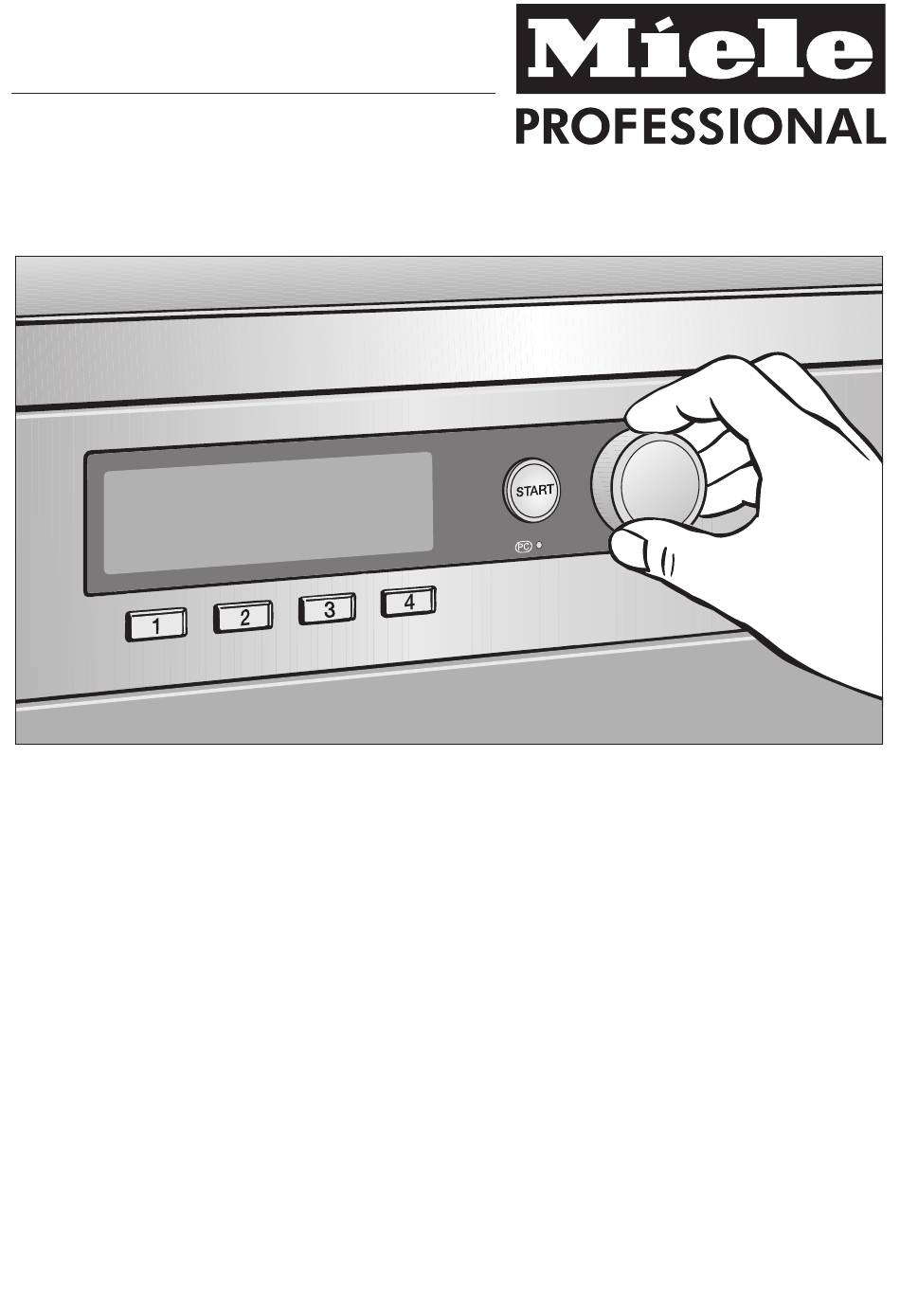

- Page 1 Commissioning the machine, Program chart, Settings PW 5105 Vario LP en - US To prevent accidents and machine damage read these instructions before installation or use. M.-Nr. 09 146 020...
-
Page 2: Table Of Contents
Contents Commissioning the machine ........4 Program chart . - Page 3 Contents Water plus ............42 Save .
-
Page 4: Commissioning The Machine
Commissioning the machine Before using for the first time Before commissioning the machine, ensure that it is correctly installed and connected. Please follow the operating and installation instructions. Commissioning must be completed to determine the settings for daily operation. Certain settings can only be altered during the commissioning process. - Page 5 Commissioning the machine To set the time of day The time may already have been set at the factory. If it has, and is correct, you can skip this section. It is possible to alter the time at any stage via the Settings menu. Settings 24 h clock...
- Page 6 Commissioning the machine Determining target groups By selecting target groups, you are determining the program range of the washer-extractor. You can see which programs are assigned to each target group under "Program chart" later in this booklet. Settings § Fire service Target groups ~ Professional cleaners ~ Special programs...
- Page 7 Commissioning the machine Each of these settings must now be See the paragraph "Water confirmed (and altered if required). connection" in the "Installation and More details about the settings are connection" section of the Operating given at the end of this booklet. and installation instructions.
- Page 8 Commissioning the machine Supervisor level code Serial interface RS 232 for Interface The Settings/Supervisor level can be card 6 is active in coin operation locked with a code to prevent it being mode (an IK6 module must be fitted). accessed by unauthorized personnel (the Language J setting can still be RS 232 altered).
- Page 9 Commissioning the machine Transport struts A message will appear in the display to remind you to remove the transport struts. ^ Remove them (if this has not already been done by your fitter). Then press the multi-function selector to confirm that this has been done.
- Page 10 Commissioning the machine Cottons Uni. 60°C Program selection... 2 Minimum iron 40°C Settings F... 3 Delicates 40°C 03:00 4 Woollens H 30°C To finish the commissioning process completely, a first wash program must be started. If the power to the machine is switched off before the first wash program is started (e.g.
-
Page 11: Program Chart
Program chart Basic programs Cottons Hygiene 158°F - 203°F (70°C - 95°C) Max. load 22 lbs (10 kg) Fabric type Cotton, linen or cotton mix fabrics, e.g. bed linen, baby clothing, underwear. Extra options Pre-wash, Starch stop, Rinse hold, Intensive*, Water plus* Detergent Universal detergent Cottons Uni. - Page 12 Program chart Woollens / Cold to 104°F (40°C) Max. load 8.8 lbs (4 kg) Fabric type Machine-washable or hand-washable wool or wool blend fabrics. Note Max. spin speed 1000 rpm Extra option Rinse hold Detergent Liquid detergent for machine-washable woollens Starch Cold to 104°F (40°C) Max.
- Page 13 Program chart Silks / Cold to 86°F (30°C) Max. load 6.6 lbs (3 kg) Fabric type Silks and other handwashable fabrics with no wool content Place socks, tights, bras etc. in a washing bag. Note Max. spin speed 600 rpm Extra options Rinse hold, Water plus* Detergent Liquid detergent for delicates...
- Page 14 Program chart Outerwear Cold to 104°F (40°C) Max. load 11 lbs (5 kg) Fabric type Outerwear made from microfiber. Tips – Zip up jackets before washing. – Do not use fabric conditioner. Extra option Rinse hold Detergent Liquid detergent for delicates or fabric specific specialist detergent Proofing 86°F - 104°F (30°C - 40°C)
-
Page 15: Household
Program chart Household Dark garments Cold to 104°F (40°C) Max. load 11 lbs (5 kg) Fabric type Dark garments made from cotton or mixed fiber. Wash inside out. Note Max. spin speed 1000 rpm Extra option Rinse hold Detergent Liquid detergent for colored fabrics Denim Cold to 104°F (40°C) Max. -
Page 16: Hotel
Program chart Hotel Kitchen linen 140°F - 203°F (60°C - 95°C) Max. load 22 lbs (10 kg) Fabric type Kitchen linen made from cotton and linen fabrics, e.g. chef's whites, catering uniforms, serving cloths, cleaning cloths. Select Pre-wash for stubborn soiling. Use a detergent containing enzymes for the pre-wash. -
Page 17: Bedding
Program chart Bedding Pillows 104°F - 203°F (40°C - 95°C) 1-2 pillows Items Pillows with feather, down or synthetic fillings. Note A spin cycle is carried out after water is first added in order to deflate the pillows. Extra option Rinse hold Detergent Liquid detergent... -
Page 18: Disinfection
Program chart Disinfection Therm.DIS 15 min 185°F (85°C) Max. load 22 lbs (10 kg) Fabric type Cotton, linen or cotton mix fabrics. Notes – Thermal disinfection. – The wash cycle is followed by a disinfection phase at 85°C, with a holding time of 15 minutes. –... -
Page 19: Hygiene
Program chart Hygiene Hygiene No laundry Hygiene will appear in the display if the last program selected used a temperature below 55°C or if the Spin program is selected. You should then run a program that uses a temperature of at least 60°C or the Hygiene program. To select the Hygiene program: –... -
Page 20: Bakers/Butchers
Program chart Bakers/Butchers Flour 104°F - 203°F (40°C - 95°C) Max. load 22 lbs (10 kg) Flour+ 104°F - 203°F (40°C - 95°C) Fabric type Overalls, jackets, hats and cloths made from cotton or mixed fiber. – Use a detergent containing enzymes. –... -
Page 21: Beauty Salons/Health Spas
Program chart Beauty salons/Health spas Towels 104°F (40°C) Max. load 15.4 lbs (7 kg) Towels+ 104°F - 176°F (40°C - 80°C) Fabric type Lightly soiled cotton towels Tips – For dark colored fabrics use a detergent for colored fabrics. – Select the Towels+ program for heavy soiling. Extra option Rinse hold Detergent... -
Page 22: Fire Service
Program chart Fire service Masks 10min 158°F (70°C) Max. load 7 masks Masks 20min 140°F (60°C) Masks 30min 104°F (40°C) Items Breathing masks with head straps Tips – Chemo-thermal disinfection programs with different temperatures and holding times, for washing and disinfecting breathing masks. - Page 23 Program chart Protective clothing 140°F (60°C) Max. load 11 lbs (5 kg) Items Protective clothing (e.g. as used by the fire brigade), overalls, jackets, trousers Tips Do not use to wash items lined in pure wool. Notes – Program with pre-wash –...
-
Page 24: Professional Cleaners
Program chart Professional cleaners WetCare sensitive 77°F (25°C) 11 - 13.2 lbs (5 - 6 kg) Clothing such as suits and jackets marked with the w or h Fabric type symbols Notes – After wet cleaning, items are treated in a finishing bath. –... -
Page 25: Special Programs
Program chart Special programs You can create 5 special programs and name these. Enter their details in the table below: – For example: – – EXTRA+ – – Pre-wash intensive – – Main wash intensive 203°F (95 °C) – – Rinse 1 –... -
Page 26: Relay Control For External Dispensing System
Relay control for external dispensing system This washer-extractor is fitted with an adapter for an external dispensing system. The external pumps are controlled by relays in the washer-extractor. The dispensing containers must be filled with the correct detergent or chemical agents in the order specified. - Page 27 Relay control for external dispensing system Pre- Main wash Main wash Finishing wash 1st signal 2nd signal Sport Indoor sportswear Outdoor sportswear Hotel Kitchen linen Table linen Curtains Bed linen Bedding Pillows Down duvets Synthetic duvets Natural fiber blankets Disinfection Th.
- Page 28 Relay control for external dispensing system Pre- Main wash Main wash Finishing wash 1st signal 2nd signal Bakers/Butchers Flour (+) Grease and fat (+) Workwear (+) Beauty salons/Health spas Towels (+) Capes Fire service Masks 10 min R 5* Masks 20 min R 5* Masks 30 min R 5*...
- Page 29 Relay control for external dispensing system Pre-wash Main wash Block start "normal"/ "gentle" "normal"/ "gentle" "final "Finishing" "intensive" "intensive" rinse" Special programs S.prog.1 R 2 + R 5 S.prog.2 R 2 + R 5 S.prog.3 R 2 + R 5 S.prog.4 S.prog.5 R 1 = Relay 1 = Pre-wash...
-
Page 31: Changing Default Settings
Changing default settings Default settings can be altered to adapt the machine to different requirements. Depending on the programmable status, the Settings/Supervisor level menu can be locked with a code to prevent it being accessed by unauthorized personnel (the Language J setting can still be altered). –... -
Page 32: Settings Menu J
Settings menu J To open the Settings menu If the Settings menu is not locked (Code not required), some of the settings may be changed. Cottons Uni. 60°C Program selection... 2 Minimum iron 40°C Settings F... 3 Delicates 40°C 15:00 4 Woollens H 30°C ^ Select Settings J from the entry menu and confirm your... -
Page 33: Settings/Supervisor Level Menu
Settings/Supervisor level menu To open the Settings/Supervisor level menu The Settings menu can be locked against unauthorized use (except for the Language option). It will then only be able to be accessed at Supervisor level by entering a code. To select a setting Settings Back A Language F... - Page 34 Settings/Supervisor level menu To confirm the code Confirm code Back A ^ Confirm the code you have entered. Code accepted Menu opened You are now in Supervisor level. You can alter the code if you want to prevent it being accessed by unauthorized personnel (see Settings Supervisor level).
-
Page 35: Language J
Settings/Supervisor level menu Language J Sort languages The display can be set to appear in You can select the order that you one of several different languages. want the languages available to appear in in the display if you have To select the language you want, go to first selected the International or the Languages J sub-menu. -
Page 36: Time Of Day
Settings/Supervisor level menu Time of day Supervisor level First select whether you want the You can alter the access code to the clock displayed as a 24 hour or 12 supervisor level. hour clock, or to not display it at all. ^ Enter the old code. -
Page 37: Standby
Settings/Supervisor level menu Standby Memory To save energy, the display goes out If an extra option has been selected after 10 minutes and the Start button for a program, or the recommended flashes slowly. temperature or spin speed has been altered, the machine will store the Operating the multi-function selector or changes in memory at the start of a... -
Page 38: Special Programs
Settings/Supervisor level menu Special programs You can create 5 special programs and save these as favorite programs with their own names. The special programs are pre-programmed with basic settings. – Wash temperature: cold – Spin speed: without spin – Wash block: Main wash: short –... - Page 39 Settings/Supervisor level menu ^ Confirm Delete again until the symbols you wish to delete have been removed. Save program name: EXTRA+ _ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 / Delete Continue...
- Page 40 Settings/Supervisor level menu 2. Program creation menu You can choose the program's features by changing the basic settings. Enter the names of your special programs and their basic settings into the "Special programs" table in the "Program chart". EXTRA+ Back A Temperature Spin speed Wash block...
-
Page 41: Favorites
You can configure the 12 programs You can choose whether to have the in the basic menu for machine variant "Miele Professional" logo or one of Shortcut keys + Logo (only in your own in the display. (The control conjunction with Controls setting option Shortcut keys + Logo has to Shortcut keys + Logo). -
Page 42: Intensive Water Plus
Settings/Supervisor level menu Intensive water plus Save You can choose whether you want You can choose whether you want the Intensive and Water plus extra the Save option to appear in the main options to be available for selection menu. The save function is required in the Extras menu. -
Page 43: Main Wash Water
Settings/Supervisor level menu Main wash water Low water pressure You can select hot or cold water for This setting can be activated to the main wash. Hot water can only be ensure problem free water intake only taken in if the wash temperature where the water pressure is is above 30°C. -
Page 44: Standard Finish
Settings/Supervisor level menu Standard finish Water level Cottons This option is visible in the display You can increase the water level for but not available on this machine! the main wash in the Cottons hygiene and Cottons universal programs. The machine is delivered with the Block parameters option selected (the water Disinfection finish level will be controlled according to the... -
Page 45: Pw Duration Cottons
Settings/Supervisor level menu PW duration Cottons Target groups The pre-wash duration can be You can extend your choice of changed in the Cottons hygiene and programs by activating target group Cottons universal programs. programs. The machine is delivered with the Block The target group programs selected parameters option selected (the wash will be added to the basic programs. -
Page 46: Pre-Wash
Settings/Supervisor level menu Pre-wash Pre-rinse Cottons You can choose for pre-wash to be A pre-rinse can be carried out in the carried out with every Cottons Cottons hygiene and Cottons hygiene, Cottons universal and universal programs. Minimum iron program or to select it The machine is delivered with this each time via the Extras menu. -
Page 47: Coin Mechanism Lock
Settings/Supervisor level menu Coin mechanism lock Demo program If your machine is fitted with a This can be used by dealers to payment system, you can activate demonstrate the machine in their the lock immediately after the start of showrooms. the program, or three minutes after it When On is selected, the machine can has started. -
Page 48: Controls
Settings/Supervisor level menu Controls Shortcut keys + Logo (special version for laundry salons). You can change the way the machine To configure programs for the basic is used with this setting. menu on variant Shortcut keys + Logo go to Favorite programs. You can use your own logo. -
Page 49: Settings Which Can Only Be Changed During The Commissioning Process
Settings/Supervisor level menu Settings which can only be Supervisor level code changed during the The Settings/Supervisor level menu commissioning process can be locked with a code to prevent If you wish to change any of these it being accessed by unauthorized personnel (the Language J setting settings at a later stage, please contact the Miele Service Department. - Page 52 Alteration rights reserved/4611 M.-Nr. 09 146 020 / 00 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
