Summary of Contents for Miele professional PW 5105 Vario

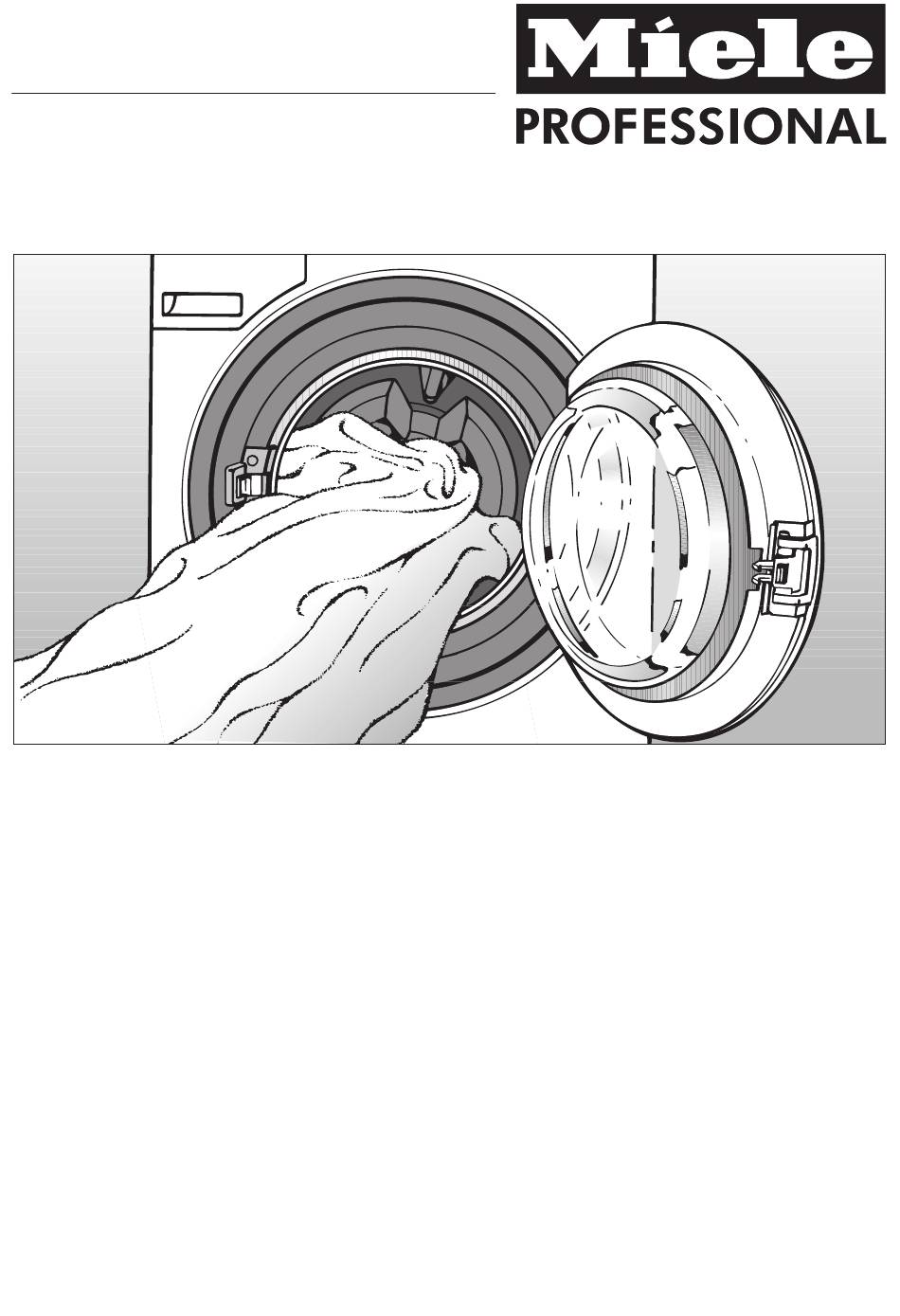

- Page 1 Operating and Installation Instructions PW 5105 Vario en - US To prevent accidents and machine damage read these instructions before installation or use. M.-Nr. 09 145 970...
-
Page 3: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS....... . . 5 Guide to the Washer ..........10 Control panel . - Page 4 Contents Cleaning and care ..........34 Cleaning the machine .
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Do not allow children to play on or in WARNING - To reduce the risk of the appliance. Close supervision is fire, electric shock or injury to necessary when the appliance is used persons while using your appliance near children. - Page 6 IMPORTANT SAFETY INSTRUCTIONS Technical safety Before connecting the machine, ensure that the connection data on the Check the packaging, the washer data plate (fusing, voltage and and accessories for any signs of frequency) match the main electrical damage. Do not use a damaged supply.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS Do not repair or replace any part of If the power cord is damaged it the appliance or attempt any servicing must only be replaced by a Miele Ser- unless specifically recommended in vice technician with a genuine Miele these operating instructions.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS Safety Ensure that no foreign objects are left in pockets (e.g. nails, coins, paper Textiles which have been clips, etc.) this can cause damage to pre-treated in solvent based cleaning clothes and the machine. agents must be thoroughly rinsed in clean water before being washed in this Proper dosing of the detergent will machine.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS Chlorine and component Anti-chlorine treatment damage Anti-chlorine treatment has to be carried out immediately after chlorine Notes on using chlorine bleach and bleach has been used. The use of perchlorethylene hydrogen peroxide or an oxygen based cleaning or bleaching agent is Frequent use of chlorine increases recommended and the laundry should the risk of component damage.
-
Page 10: Guide To The Washer
Guide to the Washer Control panel a Display d PC / Optical interface See the following pages for more Allows a service technician to check information. and update the wash programs b Direct select buttons e Jog shuttle To select a wash program directly. Turn to select menus You can also save a "Favorite"... -
Page 11: Display
Guide to the Washer Display Main menu Cottons Uni. 60°C Program selection... 2 Minimum iron 40°C Settings F... 3 Delicates 40°C 10:00 4 Woollens H 30°C When the machine is switched on, the main menu (with four favorite programs listed) appears and Program selection is highlighted. - Page 12 Guide to the Washer Program selection menu Program Cottons Hygiene selection Cottons Uni. Minimum iron Delicates You can use the jog shuttle to select any program. The highlighting will move up or down depending on the direction the jog shuttle is turned in. The HV arrows on the right of the display, indicate further options.
-
Page 13: Operating The Washer
Guide to the Washer Operating the washer The appearance of the main menu will vary depending on the "Control" setting selected. The machine is operated either with the direct select buttons D, E, F, G or the jog shuttle. WS direct select buttons, basic Cottons Uni. -
Page 14: Tips
Tips 1. Sort the laundry ^ Sort the laundry. General tips – Dark fabrics often bleed the first few times they are washed. They should be washed separately several times before being included in a mixed load. – Remove any lead weights or strips from curtains before washing. -
Page 15: Load The Drum
Tips 2. Load the drum Make sure that no items are ^ Switch the machine on with the K caught between the door and the On/Off button. drum. ^ To open the drum door pull on the ^ Close the drum door. Press the door handle. -
Page 16: Wash Care Label Symbols
Wash care label symbols Washing Ironing The number shown in the bucket is The number of dots indicates the the maximum temperature the ironing temperature garment can be washed at. The Hot iron (max sole plate temp. number of bars under the symbol approx. -
Page 17: Quick Guide
Quick guide Be sure to read both the "Tips" and "Wash care label symbols" sections before starting a wash load. a Sort the laundry b Load the drum ^ Turn on the machine. Make sure that no items are caught between the door and the drum. - Page 18 Quick guide c Select a program Coin mechanism ^ Select the most appropriate program If a coin mechanism operates the for the load being washed. machine, please regard the displayed request to pay. See the separate booklet supplied with the machine "Commissioning the If the door is opened after a machine / Program chart / Settings"...
- Page 19 Quick guide d Adding detergent Use detergent according to the laundry soiling and water hardness. Too little detergent may cause: – Laundry not getting properly clean, and with time may become grey and hard to the touch. – Greasy particles clinging to laundry. –...
- Page 20 Quick guide e Starting a program f At the end of a program "Start" flashes when a program can be "Finish" will appear in the display. started. ^ Open the drum door. ^ Press the "Start" button. ^ Remove the laundry. The "Start"...
-
Page 21: Select A Program
Select a program Selecting/changing a program Main menu Cottons Uni. 60°C Program selection... 2 Minimum iron 40°C Settings F... 3 Delicates 40°C 03:00 4 Woollens H 30°C ^ Press direct select button D. Main menu Cottons Uni. 60°C 1100 rpm Duration: 0:53 h Extras Timer Y... - Page 22 Select a program Note: If you do not make a selection in the sub-menu within approx. 15 seconds, the display will revert to the main menu. – Temperature selection Cottons Uni. °C 1100 rpm Temperature from Cold - 60°C ^ Select the desired temperature with the jog shuttle and confirm.
-
Page 23: Favorites
Favorites The washer has the option to save the most used wash programs on the direct select buttons. The option "Save" must be selected in "Settings - Supervisor level" before the direct select buttons can be programmed. Saving a favorite program Main menu Cottons Uni. -
Page 24: Extras
Extras The basic wash programs can be enhanced with "Extras". Accessing the submenu "Extras" Cottons Uni. 60°C 1100 rpm Duration: 0:53 h Extras Timer Y Back A ^ Press direct select button D. The submenu "Extras" shows. Select an Extra option(s) Cottons Uni. -
Page 25: Rinse Hold
Extras Rinse hold The washer stops after the last rinse, the laundry remains soaking in water. This will prevent wrinkles if the laundry is not removed immediately at the end of the wash program. Intensive* For laundry with normal to heavy soiling or stains. The total time for the wash program will be extended. -
Page 26: Timer
Timer The timer option allows you to select the program end time. The program start can be delayed from 30 minutes to 24 hours. Select the submenu Timer Cottons Uni. 60°C 1100 rpm Duration 0:53 h Extras Timer Y Back A ^ Press the direct select button E. -
Page 27: Spin Speed
Spin speed Maximum final spin speed Without final spin ^ Select "Rinse hold" from the submenu The maximum final spin speed will vary depending on the program chosen. "Extras". The laundry is not spun and remains soaking in water. This will The final spin speed can be reduced. -
Page 28: Changing The Program Sequence
Changing the program sequence Payment system Changing a program – After starting a program you can If a program is canceled after it has change the spin speed at any time started you can lose your credit up until the final spin commences (depending on how the machine and you can select or deselect the was set up). -
Page 29: Detergent
Detergent Water hardness Detergent dispensing Hardness Water Water Water Please follow the detergent level quality hardness hardness manufacturer's instructions. in gpg in mmol/l (also German hardness in Only use laundry detergent formulated °d) for front loading washing machines. soft 0 - 7 0 - 1.3 For wool and wool blend fabrics use a moderate... -
Page 30: Washing With Several Components
Detergent Washing with several Dye removers / Fabric dyes components Do not use dye removers in this If you wash using several components washer. (e.g. special application detergents), it is recommended to dispense the ^ When dying fabrics in the washer, agents into compartment j in the adhere to the manufacturer’s following order:... -
Page 31: Fabric Softeners / Liquid Starch
Detergent Fabric softeners / liquid starch Separate fabric softener ^ Dispense according to the amount ^ Add fabric softener to the § compartment. specified on the packaging. ^ Select the "Extra rinse" program. Automatic dispensing of fabric ^ Press "Start". softener or liquid starch Separate starch ^ Prepare and dispense the amount of... -
Page 32: External Dispensing System
Detergent External dispensing system The machine is fitted with an adapter for an external dispensing system. Up to six dispensing hoses (not supplied) can be connected to the machine. The external pumps are controlled by relays in the machine. Each relay is turned on for 2 minutes at a time. - Page 33 Detergent If a Disinfection program is running the following message is displayed: Fault Container empty The program will be canceled. ^ Press direct select button D, to delete the message in the display. Refill the container. ^ Start the program again. If the container is empty for a disinfection program, it can be assumed that disinfection has not taken place.
-
Page 34: Cleaning And Care
Cleaning and care Cleaning the drum and drainage Before cleaning the appliance, system disconnect the power supply by The drum and drainage system can be unplugging the unit or manually cleaned if necessary. tripping the circuit breaker. ^ Start the "Maintenance program". Never clean the machine or near its ^ At the end of the program check the vicinity with a water or high pressure... - Page 35 Cleaning and care Cleaning the detergent dispenser drawer Detergent residue should be cleaned out regularly. There is a yellow tool behind the detergent drawer fascia panel. ^ Pull the detergent drawer out as far it will go. 1. Then press the safety catch down using the tool as illustrated.
- Page 36 Cleaning and care Cleaning the niche of the detergent drawer ^ Clean the siphon tube. 1. Remove the siphon from ^ Using a bottle brush remove any compartment § and rinse under detergent or lime deposits from the warm running water. Clean the water inlet valves at the top of the siphon tube in the same way.
-
Page 37: Cleaning The Inlet Hose Filter
Cleaning and care Cleaning the inlet hose filter Slowly turn on the water supply and The washer has two water inlet filters to check for leaks. If water leaks, protect each inlet valve. Check and tighten the hose connection. clean these filters every 6 months. This may have to be done more frequently To clean the filter in the water inlet with some water supplies. -
Page 38: Frequently Asked Questions
Frequently asked questions Repairs to electrical appliances must only be carried out by a qualified and trained person in accordance with local and national safety regulations. Repairs and other work by unqualified persons could be dangerous. The following section will help you avoid placing a service call by identifying issues you may encounter while operating the machine: The program does not start Problem... -
Page 39: A Fault Message Appears In The Display
Frequently asked questions A fault message appears in the display Message Possible cause Solution * Water intake fault The water intake is Check whether Open the water blocked or restricted. – the water supply is supply and opened enough. check the intake hose. -
Page 40: General Problems
Frequently asked questions General problems Problem Possible cause Solution The machine feet are not Level the machine, see The machine shakes during the spin cycle. level. "Installation and connection". The pump makes This is not a fault. These noises occur at the end of a strange noises. -
Page 41: Poor Wash Results
Frequently asked questions Poor wash results Problem Possible cause Solution Liquid detergent Liquid detergents – Use powder detergent does not give the usually contain no containing bleach. required result. bleaching agents. They (Be sure this is suitable do not remove fruit, according the fabric care coffee and tea stains. -
Page 42: The Door Will Not Open
Frequently asked questions The door will not open Possible cause Solution The door is locked after For safety reasons the drum door cannot be opened a program has been if the suds temperature is higher than 50°C. Wait canceled. until the machine has cooled down. The door will not open at Press against the door handle, turn the machine off the end of a wash... -
Page 43: Opening The Door During A Power Failure Or When The Drain Is Blocked
Frequently asked questions Opening the door during a Drain the machine. power failure or when the drain If the main drain hose is clogged, water is blocked will be retained in the machine (up to 35 liters). Disconnect the machine from the power supply. -
Page 44: Cleaning The Drainage System
Frequently asked questions Once the flow of water stops: Make sure the lint trap is securely tightened. Otherwise there is a risk of water leakage during use. Machines with a drain valve ^ Remove the lint trap lid completely. Cleaning the drainage system ^ Clean the lint trap thoroughly. -
Page 45: Opening The Drum Door
Frequently asked questions Opening the drum door Always make sure that the drum is stationary before reaching into the machine to remove laundry. Reaching into a moving drum is extremely dangerous. ^ Insert a suitable screwdriver (approx. 4 mm blade) into the opening next to the door lock and use it to release the catch. -
Page 46: After Sales Service
After sales service Repairs PC Update In the event of a fault which you cannot The indicator marked PC allows a easily fix yourself, please contact technician to make use of new technical service using the information technology. When, for example, new on the back of this manual. -
Page 47: Installation Instructions
Installation Instructions To prevent accidents and machine damage read these instructions before installation or use. -
Page 48: Installation
Installation Front view a Water intake hose (cold water) f Drum door with handle b Water intake hose (hot water) g Access to drain filter, drain pump or drain valve and emergency door c Power cord release d Control panel h Height adjustable feet e Detergent dispenser drawer... -
Page 49: Rear View
Installation Rear view a Power cord g Drain hose (for machines with drain pump) b W-LAN communication module h Shipping struts c Valve for recycled water i Drain pipe for machines with drain d Water intake hose (hot water) valve e Water intake hose (cold water) j Restraining clip for intake hose and f Adapter for external dispensing... -
Page 50: Side View
Installation Side view Installing the machine ^ Transport the machine to its View from above installation site. Ensure the machine is stable during transportation. Do not lift the machine by the drum door. This machine is not suitable for building under a worktop. -
Page 51: Installation On A Raised Plinth
Installation Installation on a raised plinth Coin mechanism The machine can be installed on a steel This machine can be fitted with a plinth base (available open or closed) payment system.* or on a concrete plinth. The payment system can be set up by the Miele technician or authorized If the machine is installed on an dealer when the machine is... -
Page 52: Installation Surface
Installation Installation surface Removing the shipping struts Do not install the machine near or directly above an open gully or floor drain. Moisture from these can penetrate the machine and damage the electric components. Ensure that the machine feet and the floor are dry to prevent the machine from slipping during the spin cycle. -
Page 53: Re-Fitting The Shipping Struts
Installation To avoid the risk of injury the holes for the shipping struts must be covered after the shipping struts have been removed. ^ Release the catch and turn the right hand shipping strut counterclockwise by 90°. ^ Plug the holes with the plastic caps supplied. -
Page 54: Leveling The Machine
Installation Leveling the machine To ensure smooth operation the washer must be level. Failure to level the machine can result in increased water and energy consumption as well as the washer "banging" during the spin cycle or "walking" across the floor during use. The machine must stand perfectly level on all four feet to ensure safe and proper operation. -
Page 55: Plumbing
Installation Plumbing Maintenance Replace the water hoses only with Cold water connection genuine Miele hoses. A water faucet with " threat must be provided on-site. If none is available the Extension hoses machine must be connected to a water Extension hoses (8’ 2" or 13’ [2.5 m or line by a qualified plumber. -
Page 56: Recycled Water Connection
Installation Hot water connection The program times may be Connecting the machine to a hot water extended. supply will lead to low electrical consumption during hot water ^ Unscrew the hot water intake hose operation. The hot water temperature at (red mark). -
Page 57: Drainage
Installation Drainage If necessary the drain hose can be extended up to 16’ 5" (5 m). The hose There are two drainage extras for this extension can be purchased from your machine: Miele dealer or Miele. Drain valve The drain pump must be replaced for drain heights over 3 ft (1 m). -
Page 58: Electrical Connection
Installation Electrical connection If the machine is disconnected This installation should be from the electricity supply ensure performed by an experienced and adequate measures are taken to qualified technician, in accordance ensure that the machine cannot be with local codes and regulations. reconnected to the electricity supply until all work has been carried out. -
Page 59: Technical Data
Technical data Height 40 3/16" (1020 mm) Width 27 9/16" (700 mm) Depth 32 9/16" (827 mm) Depth with door open 49 7/8" (1267 mm) Weight 326 lbs (148 kg) Max. load bearing in operation 2750 Newton (approx. 606 lbs/. 275kg) Capacity 22 lbs (10 kg) dry laundry Voltage... -
Page 60: Help Protect Our Environment
Help protect our environment Disposal of the packing Disposal of an appliance material Old appliances may contain materials that can be recycled. Please contact The cardboard box and packing your local recycling center about the materials protect the appliance during possibility of recycling these materials. - Page 64 Alteration rights reserved/4611 M.-Nr. 09 145 970 / 00 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
