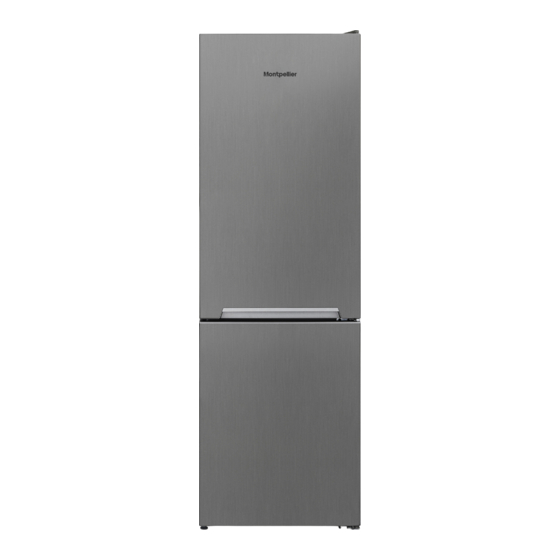

186cm Tall No Frost Fridge Freezer
MNF1860W/X White/Inox
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Installation and Operating Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MNF1860X
Summary of Contents for montpellier MNF1860X
- Page 1 THE PERFECT BALANCE OF FUNCTION AND STYLE THE PERFECT BALANCE OF FUNCTION AND STYLE LAUNDRY - DISHWASHING - COOKING - COOLING LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Installation and Operating Instructions 186cm Tall No Frost Fridge Freezer MNF1860W/X White/Inox Please read these instructions carefully before attempting to install or use this appliance.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation warnings .......................8 1.3 Electrical information (For UK type plug) ................9 1.4 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............11 2.1 Dimensions ........................12 3 USING THE APPLIANCE ................13 3.1 Information about New Generation Cooling Technology ..........13 3.2 Thermostat Setting .......................13 3.3 Temperature Settings Warnings ...................14... -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Make sure that the appliance is left to stand for a minimum of 4 hours before being turned on for the first time. WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. - Page 5 If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive.
- Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...
-
Page 8: Installation Warnings
1.2 Installation warnings • Do not cover the body or top of fridge freezer with lace. This will affect the Before using your fridge freezer for the performance of your fridge freezer. first time, please pay attention to the • Clearance of at least 150 mm is required following points: at the top of your appliance. -
Page 9: Electrical Information (For Uk Type Plug)
1.3 Electrical information (For 1.4 During Usage UK type plug) • Do not connect your fridge freezer to the mains electricity supply using an extension lead. Warning! This appliance must be earthed. • Do not use damaged, torn or old plugs. The mains lead of this appliance has been •... - Page 10 Notes: Old and Out-of-order Fridges • Please read the instruction manual • If your old fridge or freezer has a lock, carefully before installing and using your break or remove the lock before appliance. We are not responsible for the discarding it, because children may get damage occurred due to misuse.
-
Page 11: Description Of The Appliance
2. DESCRIPTION OF THE APPLIANCE This appliance is not intended to be used as a built-in appliance. Lamp cover Thermostat knob A) Refrigerator compartment B) Freezer compartment Refrigerator shelves Crisper cover Crisper Freezer upper basket Freezer middle basket Freezer bottom basket Levelling feet Bottle shelf Door shelf... -
Page 12: Dimensions
2.1 Dimensions Overall dimensions Overall space required in use 1860,0 981,6 595,0 1168,5 600,0 the height, width and depth of the appliance including the handle, the height, width and depth of the plus the space necessary for free appliance without the handle. circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle... -
Page 13: Using The Appliance
3 USING THE APPLIANCE 3.2 Thermostat Setting 3.1 Information about New The thermostat automatically regulates the temperature inside the cooler and freezer Generation NoFrost Cooling compartments. Refrigerator temperatures Technology can be obtained by rotating the knob to higher numbers; 1 to 3, 1 to 5 or SF Fridges with new-generation cooling (Maximum numbers on the thermostat technology have a different operating... -
Page 14: Temperature Settings Warnings
3.3 Temperature Settings Warnings Super switch • Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. -
Page 15: Ice Tray
3.4 Ice Tray 3.5 Freezer Box The freezer box allows food to be accessed • Fill the ice tray with water and place in the more easily. freezer compartment. • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes. -
Page 16: Food Storage
4 FOOD STORAGE • Do not put food in front of the air flow passage. 4.1 Refrigerator Compartment • Consume packaged foods before the recommended expiry date. • To reduce humidity and avoid the • Do not allow food to come into contact consequent formation of frost, always with the temperature sensor, which is store liquids in sealed containers in the... -
Page 17: Freezer Compartment
• Do not put hot food in the refrigerator • Do not purchase frozen food if the immediately, wait for the temperature packaging shows signs of humidity to pass outside. Hot foods increase the and abnormal swelling. It is probable degree of your refrigerator and cause that it has been stored at an unsuitable food poisoning and unnecessary spoiling... - Page 18 Maximum storage time Meat and fish Preparation (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast Wrap in foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat...
-
Page 19: Cleaning And Maintenance
Maximum storage time Vegetables and Fruits Preparation (months) Cooked fruits Add 10 % of sugar to the container Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time Thawing time at room Thawing time in oven (months) temperature (hours) (minutes) -
Page 20: Shipment And Repositioning
Replacing LED Lighting • It is possible to change the opening direction of the door on models with To replace any of the LEDs, please handle on the side of the door or without contact the nearest Authorised Service handles. Centre. -
Page 21: Tips For Saving Energy
Bubbling noise and splash occurs: Due Recommendations to the flow of the refrigerant in the tubes of the system. • If the appliance is switched off or Water flowing noise occurs: Due to water unplugged, wait at least 5 minutes before flowing to the evaporation container. -
Page 22: Technical Data
For the EU QR code it directs you to the EU EPREL database. For the UK QR code it directs you to the product page on the Montpellier web site and all relevant and downloadable information that is required can be found there. - Page 23 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 24 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
