Web interface user guide

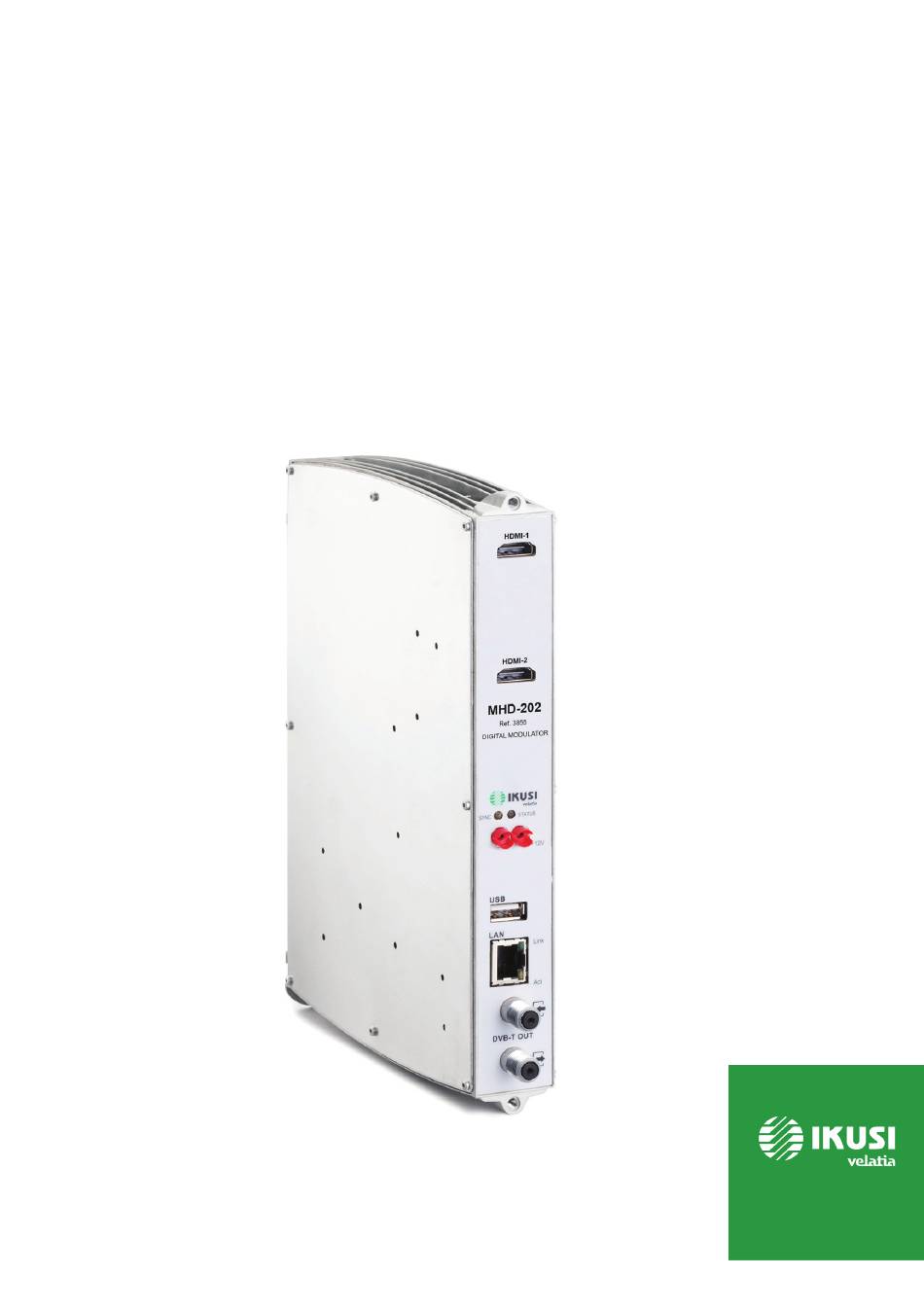

MHD-202
REF. 3855
Dual HDMI input modulator
DVB-T and IP output

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHD-202 and is the answer not in the manual?

Questions and answers

Summary of Contents for IKUSI MHD-202

  • Page 1 Web interface user guide MHD-202 REF. 3855 Dual HDMI input modulator DVB-T and IP output...
  • Page 3 Index Introduction About this Manual Product Description Web interface connection Ethernet configuration by application IKUSI HEADEND DISCOVERY Ethernet manually configuration General Configuration Main Menu Identification Local configuration Network settings Web access password Save/Restore configuration Upgrade Reboot Settings Services Input settings...
  • Page 4: About This Manual

    (please see www.customerarea.ikusi.tv for the manual). Product Description The MHD-202 is a standalone modulator that can process different Video and Audio for- mats, to create a high-definition COFDM or in IP channel. This product offers a solution to video signal distribution requirements in residential installa- tions, hotels, special buildings or security video monitoring installations with COFDM digital TV modulation.
  • Page 5: Web Interface Connection

    Web Interface Connection Web Interface Connection Ethernet Connection The web user interface can be used to configure all the MHD-202 unit’s settings, using an Ethernet connection and a web browser. NOTE To view the graphics provided in the unit’s configuration programme correctly, we recommend installing Mozilla Firefox 1.5 or later (www.mozilla.com) on the...
  • Page 6 Access the PC’S TCP/IP Settings and configure the following parameters: * PC’S /IP Address: 192.168.1.1 * Subnet Mask: 255.255.255.0 Connect the PC to the LAN port (RJ-45) of the MHD-202 unit (position 1 in the diagram below). NOTE The MHD-202 Ethernet Connector (position 1 in the diagram above), has two...
  • Page 7: General Settings

    General Settings General Settings Main menu 1-Main menu 2-Submenus 3-Work area 4-Language selection 5-Save configuration To explore the different menus, select each option in the menus area (position 1 in the dia- gram above). Depending on the options available in each menu, there will be one or various submenus (position 2 in the diagram above).
  • Page 8: Local Settings

    Select the GENERAL menu and then the CONFIGURATION submenu. Access the LOCAL CONFIGURATION tab. This section is used to set the date, time and standard time zone of the MHD-202 modula- tor. COUNTRY: Select the country in which the unit is operating.
  • Page 9: Network Settings

    Access the PASSWORD tab. The PASSWORD configuration tab allows you to change the current password for acces- sing the web interface of the MHD-202 unit (see web interface connection section, page 5). OLD PASSWORD: Enter the current password. NEW PASSWORD: Enter the new password.
  • Page 10: Save/Restore Configuration

    General Settings Once you have configured the data, you can save your changes by clicking on SAVE in the lower part of the tab. Save/Restore configuration Select the GENERAL menu and then the SAVE/RESTORE menu. All the configuration data established in the unit and accessible through the menus, sub- menus and web interface tabs can be stored in a backup file.
  • Page 11 To execute and load the new firmware click on the UPDATE button. NOTE The firmware update file has to be stored on the PC’s hard drive (it can be down- loaded from http://customerarea.ikusi.tv).
  • Page 12 Select the GENERAL menu and then the REBOOT submenu. Click on the REBOOT button. The REBOOT configuration file can now be used to restart the MHD-202 unit. Once you have restarted the unit, the home page will appear again. MHD-202...
  • Page 13 Settings Settings Services Select the SETTINGS menu and then the SERVICES submenu. Specify the parameters inside the SELECTION submenu: INPUT TYPE: Specify input type. INPUT ASPECT RATIO: 16/9 or 4/3...
  • Page 14 Settings Within the OUTPUT SETTINGS submenu, specify the following parameters: INTENSITY: Allows you to set the video image’s sharpness, by selecting one of va- rious preset values. CODIFICATION: Allows you to select the encoding standard for the digital audio and video signal, from among the following options: MPEG2, MPEG4 and DEFAULT (if the input signal is SD, the default encoding standard will be MPEG2;...
  • Page 15 Settings significant decrease in terms of codification efficiency and images (with much move- ment) quality. PIDs BLOCKING: To block any of the PIDs of each service, click to tick the correspon- ding selection box. NAME: Tells you the name of each service SID: Allows you to modify the SID value (can be modified).
  • Page 16 Settings DVB-T Output Select the SETTINGS menu and then the DVB-T OUTPUT submenu. Specify the following parameters in the DVB-T submenu: CHANNEL: Allows you to select and modify the output channel. FREQUENCY: States the output frequency of the current radiofrequency carrier and allows you to modify its value.
  • Page 17 Settings Select the ADJUSTMENTS menu and then the DVB-T submenu. Specify the following parameters within the NETWORK SETTINGS submenu: NETWORK NAME: Allows you to assign a name to the network. PROVIDER: Allows you to specify the name of the service provider. NID: Allows you to assign a value to the network identifier.
  • Page 18 USB player SERVICES NUMBER: Tells you the services number. MIN FREE: Tells you the minimum percentage of binary data at output. CURRENT FREE: Tells you the current percentage of binary data at output. OUTPUT BITRATE: Tells you the speed of the binary data at the unit’s output. IP Output Select the SETTINGS menu and then the IP OUTPUT submenu.
  • Page 19 Status SECONDS: Introduce the time interval, in seconds, at which the transmitted program- mes guide will refresh. STATUS: Tells you the status of the output services NUMBER OF SERVICES: Reports the number of services. OUTPUT BITRATE: Tells you the speed of the binary data at the unit’s output. USB Player Select the SETTINGS menu and then the USB PLAYER submenu.
  • Page 20 Status Status Select the STATUS menu. The STATUS tabs provide all the information on the statuses of the inputs and outputs, and the other general parameters of the unit (alarms, temperature, services, etc). Access the INPUT tab. INPUT 1 AND INPUT 2: VIDEO: shows whether there is a valid video signal at the input.
  • Page 21 Reports Access the GENERAL tab. GENERAL: AVAILABLE VALUES: OK/ERROR TIME WORKING: Displays an error message if a hardware problem has been detected. HW STATUS: Displays an error message if an HD input has been inserted in the SD input. IN STATUS: Displays an error message if there is any problem at the DVB-T out- put, such as an overflow.
  • Page 22 Status Reports Settings Select the REPORTS menu and then the SETTINGS submenu. The general report provides information on the general configuration of the unit, as perfor- med in the following submenu tabs:...
  • Page 23 Status...
  • Page 24 Status...
  • Page 25 Status Logs Select the REPORTS menu and then the SYSTEM LOGS submenu.
  • Page 26 Ángel Iglesias, S.A. Paseo Miramón, 170 20009 San Sebastián, Spain Tel. +34 943 44 88 00 Fax +34 943 44 88 20 ikusi@ikusi.com www.ikusi.com...
