MAW-201
(3031)
MULTISTANDARD VHF/UHF TV MODULATOR
GENERAL DESCRIPTION
• The MAW-201 modulator generates double sideband, mono sound TV channels of the
systems B/G/D/K/I/L/M/N/Australia.
• Appropriate use with TV satellite receivers, VCR's and video cameras.
• Possible connection of stereo sound sources. L and R signals are
summed by the modulator itself.
• Panel potentiometers for audio modulation and RF output level settings.
• Indoor mounting.
12
9
8
10
11

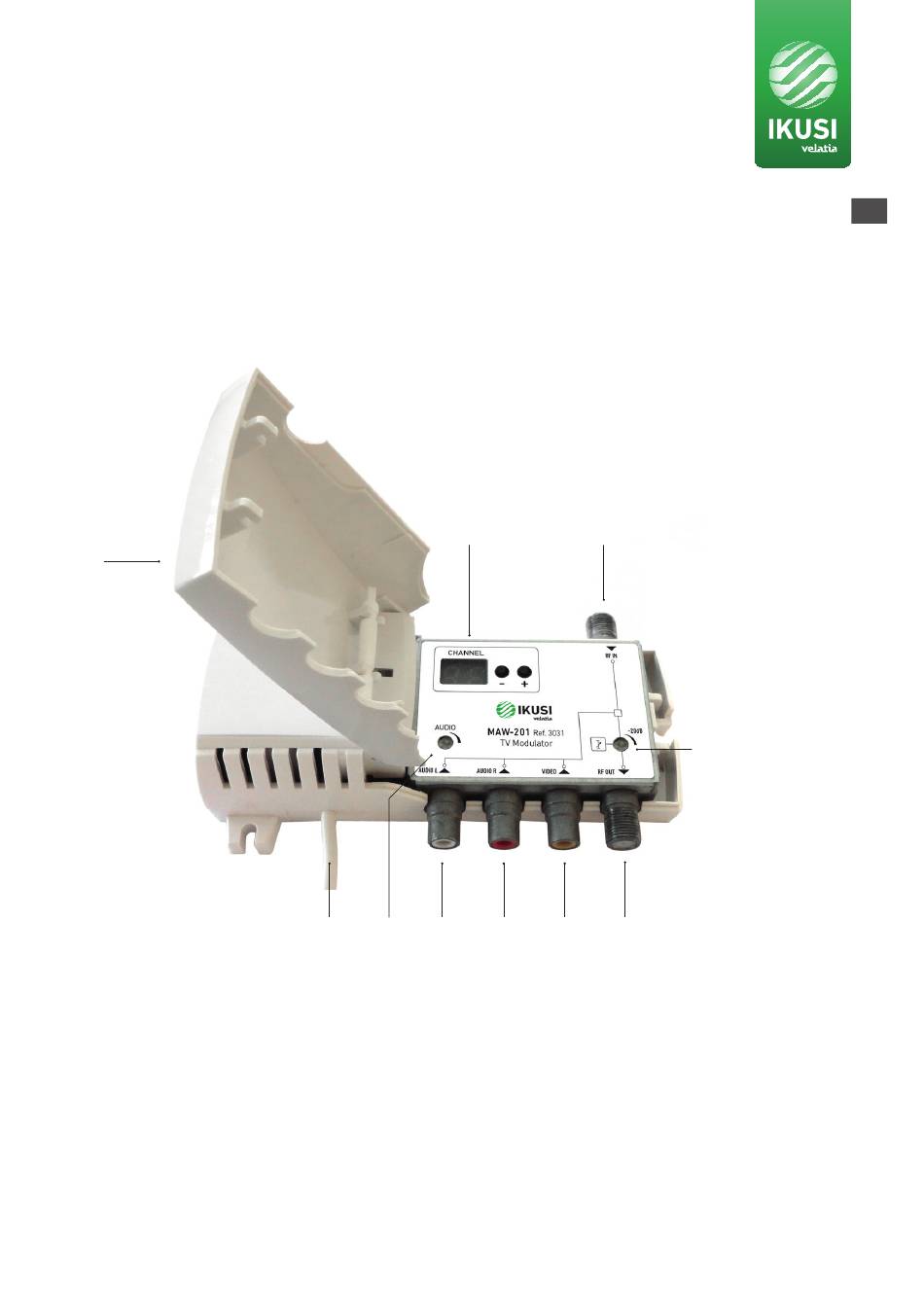

1.
AUDIO L - audio left channel signal input connector (RCA type)
2.
AUDIO R - audio right channel signal input connector (RCA type)
3.
VIDEO - video signal input connector (RCA type)
4.
RF OUT - RF signal output connector (F type)
5.
RF IN - RF signal input connector (F type)
6.
RF OUT - RF output signal level regulator
7.
Two-digit LED display
8.
Supply voltage indicator
9.
Accessory to act on potentiometers
10. Power cord
11. AUDIO - sound subcarrier deviation regulator
12. Exterior lid (open by hand)
7
5
1
2
3
6
4
EN
4
Advertisement
Table of Contents
Related Manuals for IKUSI MAW-201
Summary of Contents for IKUSI MAW-201
- Page 1 (3031) MULTISTANDARD VHF/UHF TV MODULATOR GENERAL DESCRIPTION • The MAW-201 modulator generates double sideband, mono sound TV channels of the systems B/G/D/K/I/L/M/N/Australia. • Appropriate use with TV satellite receivers, VCR’s and video cameras. • Possible connection of stereo sound sources. L and R signals are summed by the modulator itself.
-
Page 2: Main Features
MAIN FEATURES MODEL MAW-201 REF. 3031 Frequency range 20 Hz - 6 MHz Video input 1 ±0.1 V / 75 Ω Level / Impedance Frequency range 20 HZ - 15 Hz Audio input Level adjustment 0 ... 7 dB Level / Impedance / Deviation * 2x 775 mV RMS / 10 kΩ... -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS - Read the safety instruction first. - To change the modulator settings, open the plastic cover. - If RF IN connector on the modulator is not used, connect the 75 Ω load supplied. - When modulators are cascading, space between channels must be no less than two (for example 21, 24, 27 and etc.). - Fix the box on the wall using two screws through the internal holes. - Page 4 CANALES VHF BANDA I, III / VHF BAND I, III CHANNELS / CANAUX VHF BANDE I, III TV system setting Table 1 Table 2 TV system Displayed Audio subcarrier Video standard SYSTEM: B, G Band Channel Displayed Vision C. Audio C. 5.5 MHz 45,25 50,75...
- Page 5 Table 5 Table 6 SYSTEM: L, France SYSTEM: B, Australia Band Channel Displayed Vision C. Audio C. Band Channel Displayed Vision C. Audio C. BIII 176,00 182,50 57,25 62,75 64,25 69,75 184,00 190,50 BIII 175,25 180,75 192,00 198,50 182,25 187,75 200,00 206,50 189,25...
- Page 6 CANALES UHF BANDA IV Y BANDA V / UHF BAND IV AND BAND V CHANNELS / CANAUX UHF BANDE IV ET BANDE V Table 9 Table 10 SYSTEM: B, Australia SYSTEMS: M, N Band Channel Displayed Vision C. Audio C. Channel Vision C.
- Page 7 AJUSTE FINO / FINE TUNING / RÉGLAGE FINE Table 11 Table 12 Table 13 SYSTEMS: I, G, H, K, L Band Channel Vision C. Audio C. Audio C. Audio C. Displayed Shift, MHz Displayed Audio level Stand.G,H Stand.I Stand.K,L mV/dB 471.25 476.75 477.25...
- Page 8 INSTRUCCIONES DE SEGURIDAD SAFETY INSTRUCTIONS INSTRUCTIONS DE SÉCURITÉ...
-
Page 9: Ec Declaration Of Conformity
EC-Declaration of Conformity marking We, Manufacturer Ikusi Electrónica S.L. Paseo Miramón, 170 20014 San Sebastián, Spain declare that the product Stand-alone analogic modulator MAW-201 (4485) ROHS are in conformity with are in conformity with are in conformity with RoHS 3. Directive 2015/863/EU... - Page 10 Pº Miramón, 170 · 20014 San Sebastián · SPAIN Ikusi declara que este producto es conforme con la directiva 2014/53/UE Tel.: +34 943 44 88 00 · Fax: +34 943 44 88 20 Ikusi declares that this product is in accordance with 2014/53/UE directive Ikusi déclare que ce produit est conforme à...
