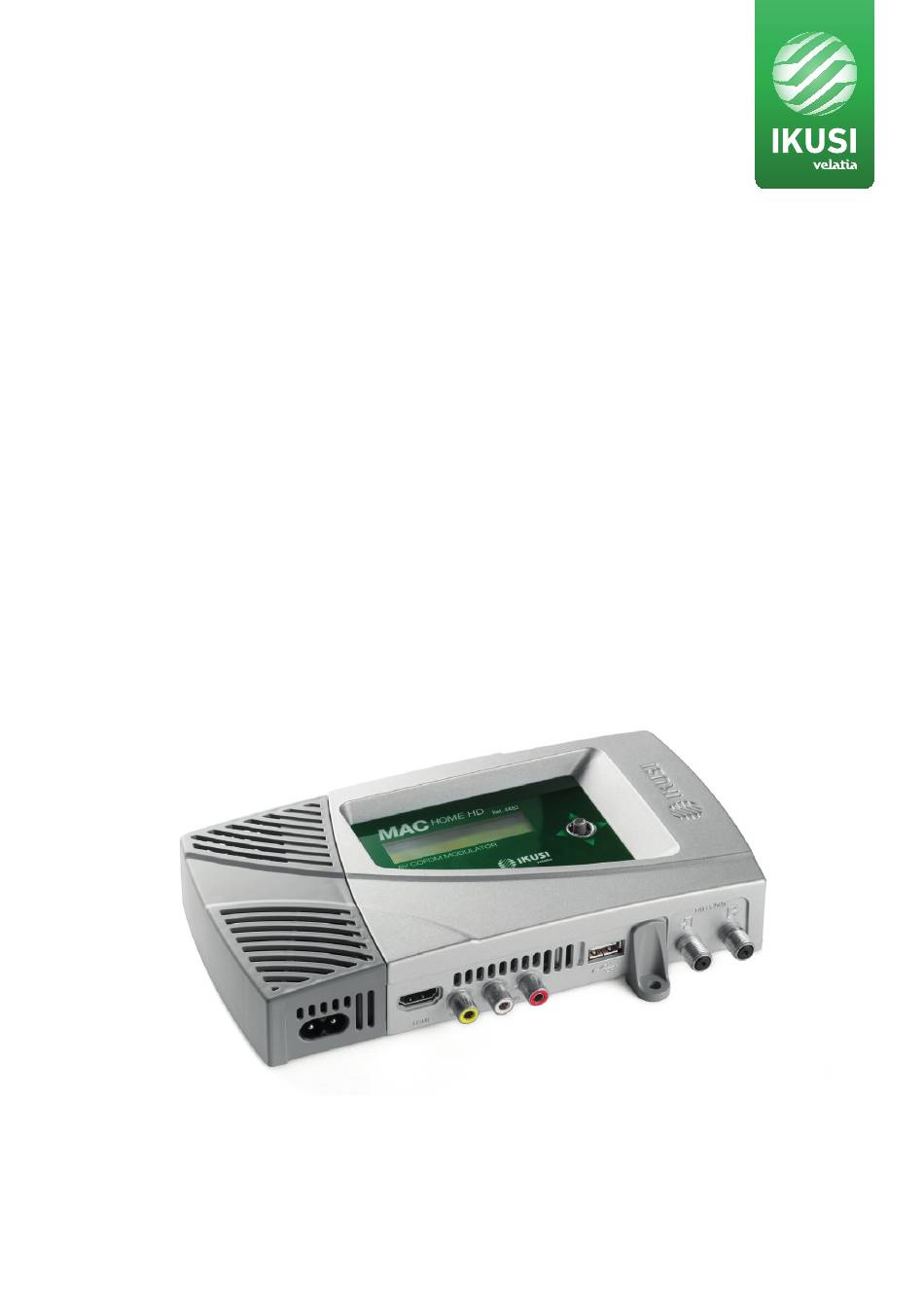

- Page 1 User manual MAC-HOME HD REF. 4482 High Definition Standalone Modulator DVB-T / DVB-C Outputs CVBS . HDMI Inputs...
- Page 2 MAC HOME HD modulator guide...
-
Page 3: Table Of Contents
MAC HOME HD modulator guide Contents General safety instructions Types of notices Introduction General description Main features General use of the unit Unit installation and configuration Module assembly and connectorising Cascade installation Power supply connection Display Menus Quick-guide Initial configuration Advanced mode General Block LCD and joystick/control button... -
Page 4: General Safety Instructions
MAC HOME HD modulator guide General safety instructions Read this entire user manual carefully before plugging in the unit. Keep these instructions to hand during unit installation. Follow all the instructions and safety notices when handling the unit. Types of notices The safety notices used in this manual and their meanings are described below: DANGER OF DEATH OR INJURY This safety notice indicates a potential hazard to people’s lives and/or health. - Page 5 MAC HOME HD modulator guide DO NOT HANDLE ANY OF THE UNIT’S INTERNAL PARTS This notice indicates that users should not handle any internal parts that could affect its working order or warranty. DO NOT DISPOSE OF UNIT AS NORMAL DOMESTIC URBAN WASTE This type of notice indicates that the unit should not be disposed of as unselected domestic urban waste.
-
Page 6: Introduction

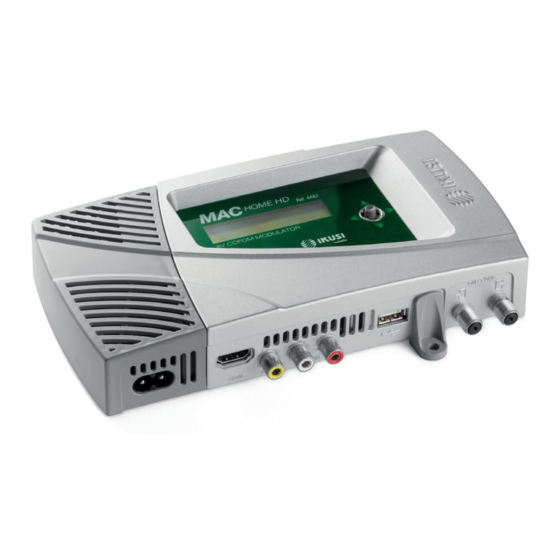

MAC HOME HD modulator guide Introduction General description LEGEND 1 Removable power source 2 Screen (LCD) 3 Control button for configuration 4 Network connector 5 HDMI input connector 6 CVBS video input connector 7 L and R audio analogue inputs 8 USB input for video playback and fir- mware upgrade 9 Loop-through for combination of exter-... - Page 7 MAC HOME HD modulator guide Programming: • User interface with LCD screen and control button for basic configuration. • All adjustments are stored automatically. • Reprogrammable as often as necessary. • Easily configurable. Signal processing: • CVBS video and mono/stereo audio input. •...
-
Page 8: General Use Of The Unit
MAC HOME HD modulator guide General use of the unit The following sections describe how to operate the unit using the control button and how to in- terpret the visual prompts displayed on the LCD screen. The programme comprises a main menu made up of submenus that can be selected to modify the unit’s basic operation settings. -
Page 9: Unit Installation And Configuration
MAC HOME HD modulator guide Unit installation and configuration The unit can be adjusted with just the LCD screen and control button. Follow the steps indicated below to install the unit and configure the different parameters accessible from the user interface in the LCD screen. -
Page 10: Cascade Installation
MAC HOME HD modulator guide Cascade installation Several MAC HOME HD units can be cascaded in order to increase services capacity. To do this, connect the RF output of the preceding unit to the TV input (loop-through) of the next unit (see assembly example). - Page 11 MAC HOME HD modulator guide Fast menu guide IKUSI MAC-HOME HD V2.25 MAC Starting ... CH 21 SYSTEM OK >INPUT >OUTUPT TYPE DVB-T/C OUTPUT 1 HD/SD HDMI 1 SD CVBS OUTPUT CHANNEL INPUT >DVB-T/C OUTPUT ATTENUATION 0.0 dB COUNTRY SPAIN...
-
Page 12: Initial Configuration
MAC HOME HD modulator guide Initial configuration NOTE. To enter a digit or character sequence on screen, use the vertical control button to change the value of the current digit or character, and the horizontal control button to move between digits or characters. Position the cursor to the right of the current value and use the vertical control button to increase or decrease the current value. -
Page 13: Restoring Factory Settings
Firmware upgrade 1) Locate and select the UPDATE option. >UPDATE a) Download the FIRMWARE from the website (www.ikusi.tv) b) Decompress and enter it in the root directory of a flash-memory. ** CAUTION ** c) Insert the flash-memory in the USB port. -
Page 14: Configuration Of Carrier Services
MAC HOME HD modulator guide f) Locate and select the option AUDIO BITRATE (CVBS, HDMI). AUDIO BITRATE The unit can be configured for an input data encoding speed 384 Kbits/s of 96; 128; 160; 192; 224; 256; 320 and 384 Kbits/s. LOW LATENCY h) Locate and select the LOW LATENCY option. -
Page 15: Network Configuration
Locate and select the NID option. Configure the network PROVIDER identifier value. IKUSI d) Locate and select the TSID option. Configure the TS or trans- port current identifier value. 00001 e) Locate and select the ONID option. Configure the original network identifier. - Page 16 MAC HOME HD modulator guide Status of the unit >STATUS NOTE. The unit shows its status in detail, along with the MODULE INFO existence of active alarms in the module. CH1: V: 0 A: x 1) Locate and select the STATUS option. STATUS: a) Locate and show STATUS.
-
Page 17: Video Playback
Video playback Once the pendrive is inserted in the USB connector of the MAC-HOME HD modulator, playback will start automatically after a few seconds without having to access the menu; if the file is not correct, the system will continue as a modulator (the application manual can be found at www. -
Page 18: Technical Specifications
MAC HOME HD modulator guide Technical specifications MAC HOME HD model (4482) Input CVBS, HDMI Video standard PAL/NTSC/SECAM/B&W Audio input 1 (mono and stereo) Video MPEG2 MP@ML, H.264/MPEG4 AVC MP L4.1 SD, HD (480i, 576i, 480P, 576P, 720p50, Video quality 720p, 1080i50, 1080i60, 1080p50, 1080p60) Maximum resolution 1080p60... - Page 19 MAC HOME HD modulator guide LCN processing OFF,Europe,Independent Television Comision (UK), LCN modes Nordig mode V1, Nordig mode V2, Generic Mode Mains voltage VAC 230 - 240 Firmware upgrade Yes, web or USB interface Flujo de salida IP CBR / VBR Direccionamiento IP Unicast / Multicast Protocolos...
- Page 20 Warranty Notwithstanding any complaints made to the direct vendor of the product, IKUSI offers unit users a two-year warranty as of the invoice date, which shall become valid on presenting the receipt of purchase. During the warranty period, IKUSI is responsible for any faults arising due to material or manufacturing defects and shall repair the receiver or replace it for another corresponding to the state of technology at that time.
-
Page 21: Characters Table
CE Certificate EC-Declaration of Conformity EC-Declaration of Conformity marking marking We, Manufacturer We, Manufacturer IKUSI, Angel Iglesias, S.A. IKUSI, Angel Iglesias, S.A. Paseo Miramón, 170 Paseo Miramón, 170 E-20009 San Sebastián, Spain E-20009 San Sebastián, Spain declare that the product declare that the product HDMI, AV ... -
Page 22: Safety Instructions
MAC HOME HD modulator guide Safety instructions... - Page 23 MAC HOME HD modulator guide...
- Page 24 Pº Miramón, 170 20014 San Sebastián - SPAIN Tel.: +34 943 44 88 00 - Fax: +34 943 44 88 20 television@ikusi.com - www.ikusi.tv MAC HOME HD (EN)
