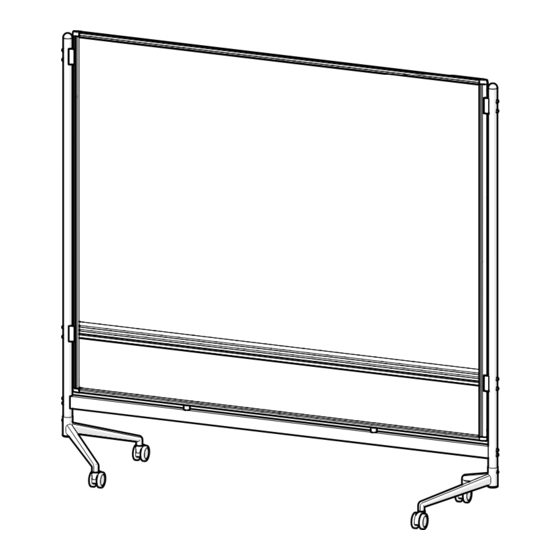

- Page 1 All manuals and user guides at all-guides.com DOC Partition Part Numbers: 661AX-XX, 661DG-LX ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 07/13/2021 1 of 7...
- Page 2 All manuals and user guides at all-guides.com Parts List Hardware P1 - Panel A - Screw M5 x 8mm A1 - Screw M5 x 50mm P2 - Crossbrace A2 - Screw M6 x 55mm B - Bumper P3 - Post C - Locking Caster P4 - Leg Base D - Mounting Bracket...
- Page 3 All manuals and user guides at all-guides.com WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions...
- Page 4 All manuals and user guides at all-guides.com STEP 1 Insert two Screw Blocks into slot of side extrusion on both sides of panel. To do this, tilt Screw Blocks at a 45 degree angle and drop into place. STEP 2 Attach two Mounting Brackets on both sides of panel.
- Page 5 All manuals and user guides at all-guides.com STEP 3 Install upright Post by inserting allen screws into Mounting Brackets and tightening into Screw Blocks (pictured in Step 1). Repeat for second Post. STEP 4 Insert Bumpers in Crossbrace. UPDATED AS OF: 07/13/2021 5 of 7...
- Page 6 All manuals and user guides at all-guides.com STEP 5 Slide in Crossbrace between Posts. Secure to Posts with allen screws. Repeat on both sides of Crossbrace. STEP 6 Install Leg Base to bottom of Post and secure with allen screws as shown. Repeat for second Leg Base. UPDATED AS OF: 07/13/2021 6 of 7...
- Page 7 All manuals and user guides at all-guides.com STEP 7 Push in Casters to feet of Leg Base. Repeat for second Leg Base. NOTE: If installing multiple units, optional Plastic Gangers may be used to link 2 - 4 units together. THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 07/13/2021 7 of 7...
