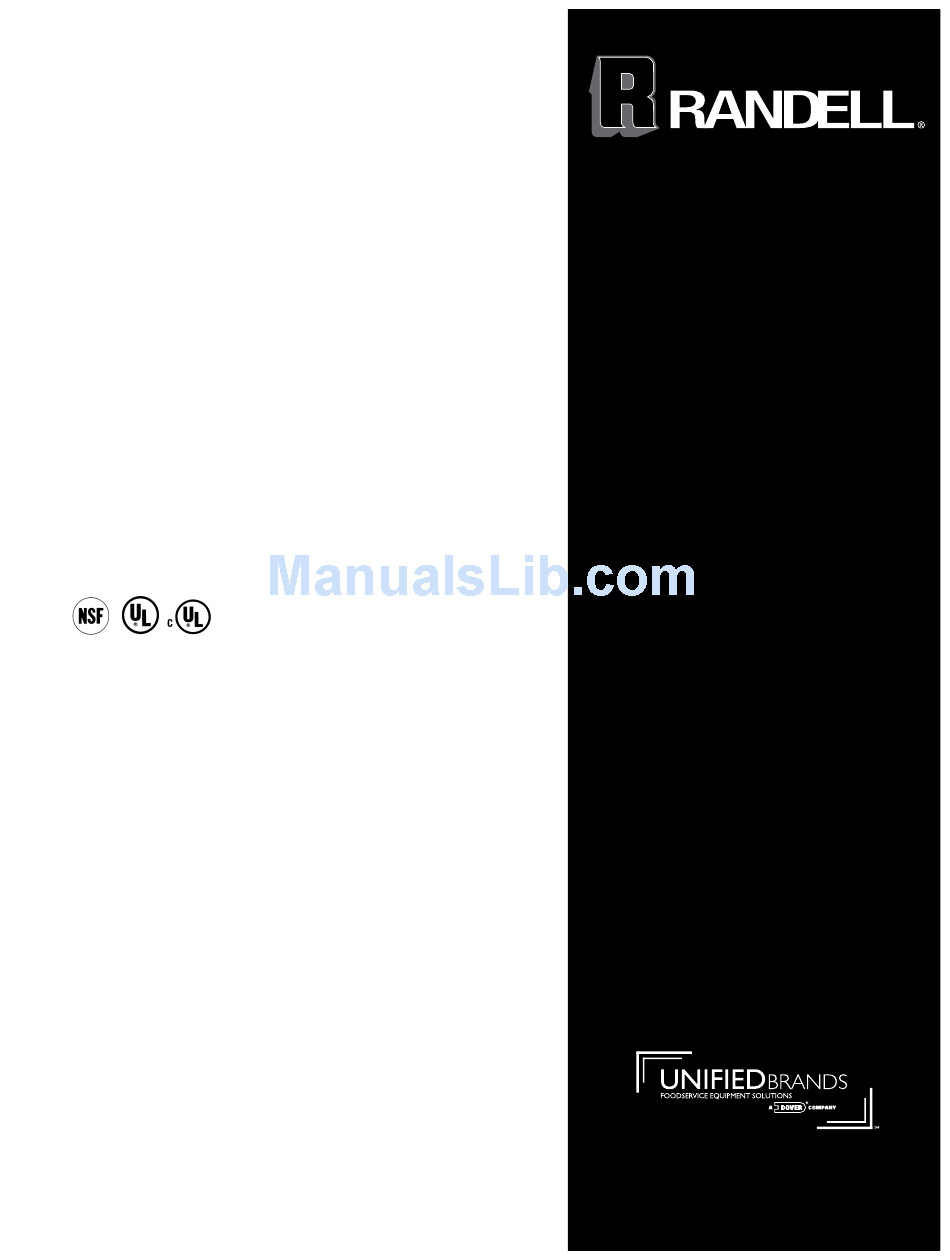

OPERATORS MANUAL
This manual provides information on
Installation, operating, maintenance,
trouble shooting & replacement parts for
CURVED GLASS
DISPLAY CASE
NOTIFY CARRIER OF DAMAGE AT ONCE.
It is the responsibility of the consignee to inspect the
container upon receipt of same and to determine
the possibility of any damage, including concealed
damage. Randell suggests that if you are suspi-
cious of damage to make a notation on the delivery
receipt. It will be the responsibility of the consignee
to file a claim with the carrier. We recommend that
you do so at once.
Information contained in this document is known to be
current and accurate at the time of printing/creation.
Unified Brands recommends referencing our product line
websites, unifiedbrands.net, for the most updated product
information and specifications.
OMANUAL_CGDC-8/23/04
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
randell.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Randell 4137REA
Summary of Contents for Randell 4137REA
- Page 1 Randell suggests that if you are suspi- cious of damage to make a notation on the delivery receipt. It will be the responsibility of the consignee to file a claim with the carrier.
-
Page 2: Safety Procedures
15 ... Troubleshooting page 16... Replacement Parts Congratulations on your recent purchase of Randell food service equipment, and welcome to the growing family of satisfied Randell customers. Our reputation for superior products is the result of consistent quality craftsman- ship. - Page 3 Retain this manual for future reference. NOTICE: Due to a continuous program of product improvement, Randell Manufacturing reserves the right to make changes in design and specifica- tions without prior notice. NOTICE: Please read the entire manual carefully before installation.
-
Page 4: Warranty Policies
2. Free ground freight to customer specified location for all in warranty parts within continental U.S. 3. 3 months (90 days) labor reimbursement for any repairs that are caused by Randell’s use of defective material or workmanship (Reasonable geographic and industry rates do... - Page 5 (Reasonable geographic EXTENSION POLICY APPLIES and industry rates do apply) Randell offers both 1 and 2 year extensions. Labor exten- sions begin at the end of our standard warranty and extend out 9 months to 1 calendar year or 21 months to 2 calendar years from date of purchase.
-
Page 6: Installation
Dealer penalty clauses, on their purchase order or contractually agreed to between the dealer and their clients are not binding on Randell. Randell does not accept orders sub- ject to penalty clauses. This agreement supersedes any such clauses in dealer purchase orders. - Page 7 UNIT SPECIFICATIONS FOR: CURVED GLASS SELF-CONTAINED 4100SCA Model Display area shelves sq. ft. 4137SCA 37" 34.5" 46" 16.2 4149SCA 49" 34.5" 46" 22.6 4161SCA 61" 34.5" 46" 4173SCA 73" 34.5" 46" 35.2 NEMA VOLT SHIP WT. 5-15P 5-15P 5-15P 5-20P randell.com...
- Page 8 4100REA Model 4137REA 4149REA 4161REA 4173REA 888-994-7636 UNIT SPECIFICATIONS FOR: CURVED GLASS REMOTE Display area shelves sq. ft. 37" 34.5" 46" 16.2 49" 34.5" 46" 22.6 61" 34.5" 46" 73" 34.5" 46" 35.2 NEMA VOLT SHIP WT. 5-15P 5-15P 5-15P...
- Page 9 4100DR Model Display area shelves sq. ft. 4137DR 37" 34.5" 46" 16.2 4149DR 49" 34.5" 46" 22.6 4161DR 61" 34.5" 46" 4173DR 73" 34.5" 46" 35.2 UNIT SPECIFICATIONS FOR: CURVED GLASS AMBIENT SHIP WT. randell.com...
- Page 10 4100DT Model 4137DT 4149DT 888-994-7636 UNIT SPECIFICATIONS FOR: CURVED GLASS DUAL TEMP Display area shelves sq. ft. 37" 35" 46.5" 16.2 49" 35" 46.5" 24.3 SHIP WT.
-
Page 11: Unit Installation
Burn out of a condensing unit due to exceeding voltage limits will void the warranty. DOOR INSPECTION 1. Check doors to ensure that they are sealing properly. 2. Check doors for proper alignment. 3. Check doors to ensure that they open and shut freely. randell.com... -
Page 12: Installation Checklist
INSTALLATION CHECKLIST 888-994-7636 Unit Installation (cont.) After the final location of the display merchandiser has been determined refer to the fol- lowing checklist prior to start up: 1. Check all exposed refrigeration lines to ensure that they are not kinked, dented or rubbing together. -
Page 13: Unit Operation
PREVENTIVE MAINTENANCE Randell strongly suggests a preventive maintenance program which would include the following Monthly procedures: 1. Cleaning of all condenser coils. Condenser coils are a critical component in the life of the compressor and must remain clean to assure proper air flow and heat transfer. - Page 14 888-994-7636 PREVENTIVE MAINTENANCE (cont.) RECOMMENDED CLEANERS FOR YOUR STAINLESS STEEL INCLUDE THE FOLLOWING: Cleaning Agent Routine cleaning Soap, ammonia, detergent medallion Fingerprints & Smears Arcal 20, Lac-O-Nu, Ecoshine Stubborn stains and Cameo, Talc, Zud, First discoloration Impression Grease, fatty acids, blood Easy-off, Degrease It, and burnt on foods Oven Aid...
- Page 15 1. Replace or turn up 2. Call service agency 1. Remove any obstruction 2. Adjust or replace spring 3. Replace hinges 1. Clean evaporator pan and clear drain 2. Inspect and replace if necessary 3. Level unit 4. Tighten or reconnect hose randell.com...
-
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST UNIT 4137 Cold Control HD CNT200 Light Bulb EL TUB018 Light Fixture EL LGT037 Top Shelf HD SHL2132 Bottom Shelf HD SHL2632 Shelf Pilaster RH HD SHL202 Shelf Pilaster LH HD SHL203 RH Door HD DOR037R LH Door HD DOR037L Door Lock HD LCK026...
