Randell 4137DR Specifications

Display Merchandiser Refrigerated Curved Glass
model
self-contained
remote
dry

Description:

Self-contained refrigerated curved glass display case with
insulated, self-closing doors, adjustable display shelves,
insulated glass front, and fluorescent illumination. R-134a forced
air refrigeration system with high capacity evaporator coil and
thermostatic control. Foamed in place, "CFC free" insulation
and cordset for 115V operation. Stainless steel exterior finish is
standard. Available as a remote or dry unit.

Specifications:

CABINET EXTERIOR: Exterior base features stainless steel finish
with louvered panel to provide proper air flow to condensing unit.
Unit sides to be stainless steel - standard, (laminate ends are
optional). Unit top features 15 1/2" wide, full length stainless steel
shelf / work area. Fixed curved glass front to be tempered for safety,
and insulated to prevent condensation. Glass perimeter heated to
prevent condensation.
CABINET INTERIOR: Interior to have stainless steel bottom with
adjustable wire shelving supports. Each unit comes complete with
a full complement of heavy gauge, powder coated wire shelves
easily removable for cleaning. 3 shielded, full length, fluorescent
lights are provided. One light is permanently mounted to interior
top, while the other two are removable, and supported by the
shelving set-up. Mirrored plastic interior ends are standard. Unit
insulated with CFC free, foamed in place urethane insulation.
DOORS: (2) removable, insulated glass sliding glass doors are
self-closing on ball bearings riding in nylon track for smooth
operation. Rubber wiper between doors to minimize air loss,
and vinyl frame to reduce condensation. Door locking system is
standard. Doors are easily removed for cleaning.
REFRIGERATION: CFC free, HFC-134a refrigeration system with
condensing unit, high capacity evaporator blower coil, condensate
evaporator, and thermostatic control for operator adjustability.
Unit totally prewired and to be supplied with 8' cordset (NEMA
5-15P) for 115V plug-in operation. (Cordset can be accessed
thru either end of unit, thru openings in base).
Remote Models Same as above, except condensing unit to be
provided by others.
Dry Models Ambient room temperature display case.
4137SCA 4149SCA
4137REA 4149REA
4137DR 4149DR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-266-5244
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
4161SCA 4173SCA
4161REA 4173REA
4161DR 4173DR

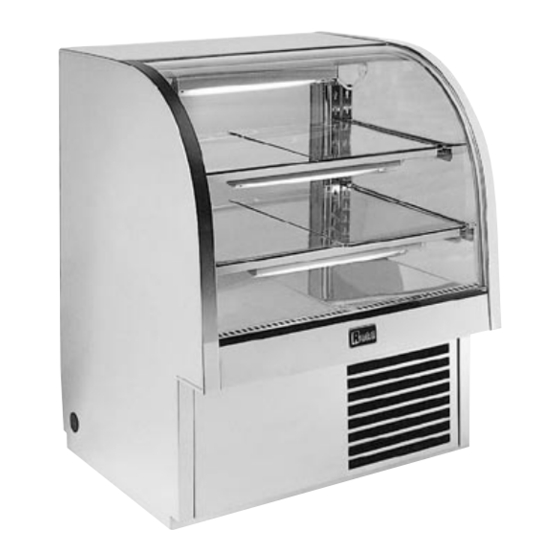

model 4137SCA shown
(shown with optional glass shelves &
mirrored stainless steel trim)

Standard Features:

• Self-contained, forced air refrigeration system with
thermostatic control, system utilizes "CFC free", R-134a refrigerant
• Available as a remote or dry unit
• Insulated glass sliding glass doors are removable,
self-closing, riding in nylon track, with lock
• Tempered / insulated curved glass front
• Complete adjustable shelving & light system
• Foamed in place "CFC free" urethane insulation
• Available in stainless steel finish (standard), or any optional
standard laminate
• Cord & Plug for 115V operation
• Mirrored interior ends
• (3) light fixtures
• Hot gas condensate evaporator
Randell Display Merchandiser, Page 6a
models 4100A
Revised 07/06
