Custom Open Base Utility Stand
model
11318
11360
Description:
Open base utility stand with 16 gauge reinforced stainless top,
and integral backsplash with 45˚ return. Reinforced stainless
steel storage shelves. 6" high adjustable and movable legs.
Specifications:
UNIT TOP: Top to be one piece of die formed 16 gauge stainless
steel with 2 5/8" nosing. Backsplash to be coved cornered,
with 45˚ return at top and overall height of 6 3/4". Ends at top
fitted with recessed heavy duty steel bars for field bolting units
together, producing a hairline seam. Top reinforced with (2) full
length channel braces.
UNIT BODY: Body ends to be die formed stainless steel, finished
and polished on the inside, with corrosion resistant exterior.
Shelves to be 22 gauge stainless steel with marine edge at front,
6 5/8" removable coved cornered turn up at rear, and integrally
welded channel bracing. Legs to be 6" high stainless steel with
adjustable bullet foot. Legs mounted to full length channel frame
assembly which is integrally welded to bottom of body assembly.
Legs can be moved left to right to avoid floor obstacles during
installation.
NOTE: Multiple units may be built under a common top to get to
longer lengths.
Standard Features:
• Available under one piece top with other modular
equipment up to 16' in length
• 6" high legs—adjustable and movable
• 45˚ integral stainless backsplash is standard. 90˚
stainless backsplash is optional.
Options & Accessories:
Sliding doors
Hinged doors
Urn trough
Depth modification
Casters
11324
11330
11366
11372
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-266-5244
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
models 11000
11336
11342

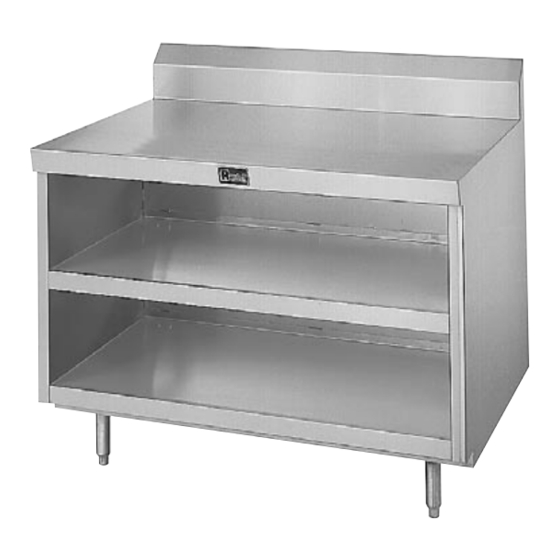

Shown with optional finished end.
11348
11354
Randell Custom, Page 1
Revised 09/04
