Randell 40048A Operator's Manual

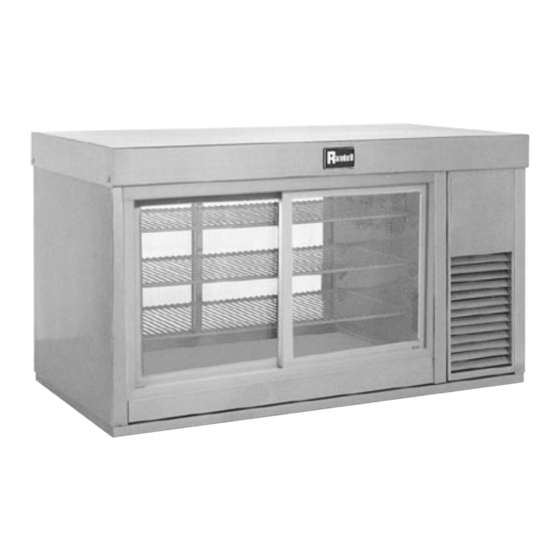

Countertop display case
Hide thumbs

Advertisement

Quick Links

OPERATOR'S MANUAL
This manual provides information on
installation, operating, maintenance,
trouble shooting & replacement parts for
COUNTERTOP
DISPLAY CASE
40048A
40048SSA
NOTIFY CARIER OF DAMAGE AT ONCE.
It is the responsibility of the consignee to inspect the
container upon receipt of same and to determine the
possibility of any damage, including concealed
damage. Randell suggests that if you are suspicious
of damage to make a notation on the delivery receipt.
It will be the responsibility of the consignee to file a
claim with the carrier. We recommend that you do so
at once.
525 South Coldwater Road • Weidman, MI 48893
888-994-7636 • Fax 888-864-7636 • unifiedbrands.net
8/26/2008
PP MNL0023 Rev B (8.2008)

Advertisement

loading

  Also See for Randell 40048A

  Related Manuals for Randell 40048A

  Summary of Contents for Randell 40048A

  • Page 1 Randell suggests that if you are suspicious of damage to make a notation on the delivery receipt. It will be the responsibility of the consignee to file a claim with the carrier.
  • Page 3 20-21…………………………….……..Replacement Parts Congratulations on your recent purchase of Randell food service equipment, and we welcome you to the growing family of satisfied Randell customers. Our reputation for superior products is the result of consistent quality craftsmanship. From the earliest stages of product design to successive steps in fabrication and assembly, rigid standards of excellence are maintained by our staff of designers, engineers, and skilled employees.
  • Page 4 In addition, all Randell food service equipment is backed by some of the best warranties in the food service industry and by our professional staff of service technicians. Retain this manual for future reference. NOTICE: Due to a continuous program of product improvement, Randell reserves the right to make changes in design and specifications without prior notice.
  • Page 5: Warranty Policies

    Any work performed by a non-ASA will not be honored by Randell. Please consult Randell Technical Support for a complete listing of ASAs. A complete listing of ASAs may also be found on the Randell page of our web site at www.unifiedbrands.net. Warranties are effective from date of shipment, with a thirty day window to allow for shipment, installation and setup.
  • Page 6 2. Provide repair at the manufacturing facility by requiring that the defective unit be sent back to Randell freight prepaid. Perform repair at the expense of Randell and ship the item back to the customer freight collect. 3. Furnish complete condensing unit freight collect in exchange for the return of the defective compressor sent back freight prepaid.
  • Page 7 Verbal quotations are provided for customer convenience only and are considered invalid in the absence of a written quotation. Written quotations from Randell are valid for 30 days from quote date unless otherwise specified. Randell assumes no liability for dealer quotations to end-users.
  • Page 8: Returned Goods

    (www.doriandrake.com), Randell’s export management organization. *FOOTNOTES IN REFERENCE TO PARAGRAPHS ABOVE 1. Herein called Randell. 2. NET means list price less discount, warranty, labor policy, freight, Randell delivery and other miscellaneous charges. CASH DISCOUNTS WILL BE CALCULATED ON NET ONLY.
  • Page 9: Unit Specifications

    Model 40048A 48" 26.5" 25" Dbl. Serve 40048SSA 48" 26.5" 25" Single Serve Unit Specifications 40048A shown Storage Style H.P. Cu. Ft. Ship Volts Amps NEMA 5-15P 5-15P unifiedbrands.net...
  • Page 10: Unit Installation

    SELECTING A LOCATION FOR YOUR NEW UNIT The following conditions should be considered when selecting a location for your unit: Floor and Countertop Load: The area on which the unit will rest must be level, free of vibration, and suitably strong enough to support the combined weights of the unit plus the maximum product load weight.
  • Page 11 ELECTRICAL SUPPLY: The wiring should be done by a qualified electrician in accordance with local electrical codes. A properly wired and grounded outlet will assure proper operation. Please consult the data tag attached to the compressor to ascertain the correct electrical requirements. Supply voltage and amperage requirements are located on the serial number tag located inside the mechanical housing.
  • Page 12: Unit Operation

    Randell has preset the cold control to ensure that your unit runs at an optimum temperature, but due to varying ambient conditions, including elevation, food product as well as type of operation, you may need to alter this temperature. It is strongly recommended that the doors be kept closed when the unit is not in use and between rush periods.
  • Page 13: Preventive Maintenance

    Randell strongly suggests a preventive maintenance program which would include the following Monthly procedures: 1. Cleaning of all condenser coils. Condenser coils are a critical component in the life of the compressor and must remain clean to assure proper air flow and heat transfer.
  • Page 14 Door Installation: 1. Locate inside door (sticker to identify door in lower corner of door) 2. Place black spring closure tab at rear top of door. 3. Pick up on door 4. Insert lower part of door in to track when door is 3” open 5.
  • Page 15: Cleaning Agent

    These services often offer guarantees as well as the flexibility in scheduling or maintenance for your convenience. Randell believes strongly in the products it manufactures and backs those products with one of the best warranties in the industry. We believe with the proper maintenance and use, you will realize a profitable return on your investment and years of satisfied service.
  • Page 16: Troubleshooting Guide

    SYMPTOM POSSIBLE CAUSE Unit doesn't run 1. No power to unit 2. Temperature control turned off 3. Temperature control faulty 4. Compressor overheated 5. Condenser fan faulty 6. Overload protector faulty 7. Compressor relay faulty 8. Compressor faulty Unit short cycles 1.
  • Page 17: Electrical Diagram

    Electrical Diagram unifiedbrands.net...
  • Page 18 40048A/40048SSA Exploded View Countertop Display Case 800-621-8560...
  • Page 19 40048A/40048SSA Exploded View Countertop Display Case unifiedbrands.net...
  • Page 20: Replacement Parts

    Coil, Evaporator, 4" x 6" x 13.75" Refrigeration Package Assy, Prior to 11/2005 Refrigeration Package Assy, After 11/2005 Refrigeration Temperature Control Filter Drier, Double Inlet Cap Tubing w/ Drier, .050 x 132" 800-621-8560 40048A/40048SSA Countertop Display Case Part # 40048A HD TRK3563 HD GLS134 RP TOP4048...
  • Page 21 Item Description Compressor, 1/3HP, AEA4440YXA Cond. Fan Motor w/ Blade & Guard, After 11/2005 Condensing Unit, 1/3HP, AEA4440YXA, After 11/2005 Power Switch, Light Accumulator Part # 40048A 40048SSA RF CMP020-134P RF ASY0101P RF CON0110 EL SWT0502 RF ACM005 unifiedbrands.net...
