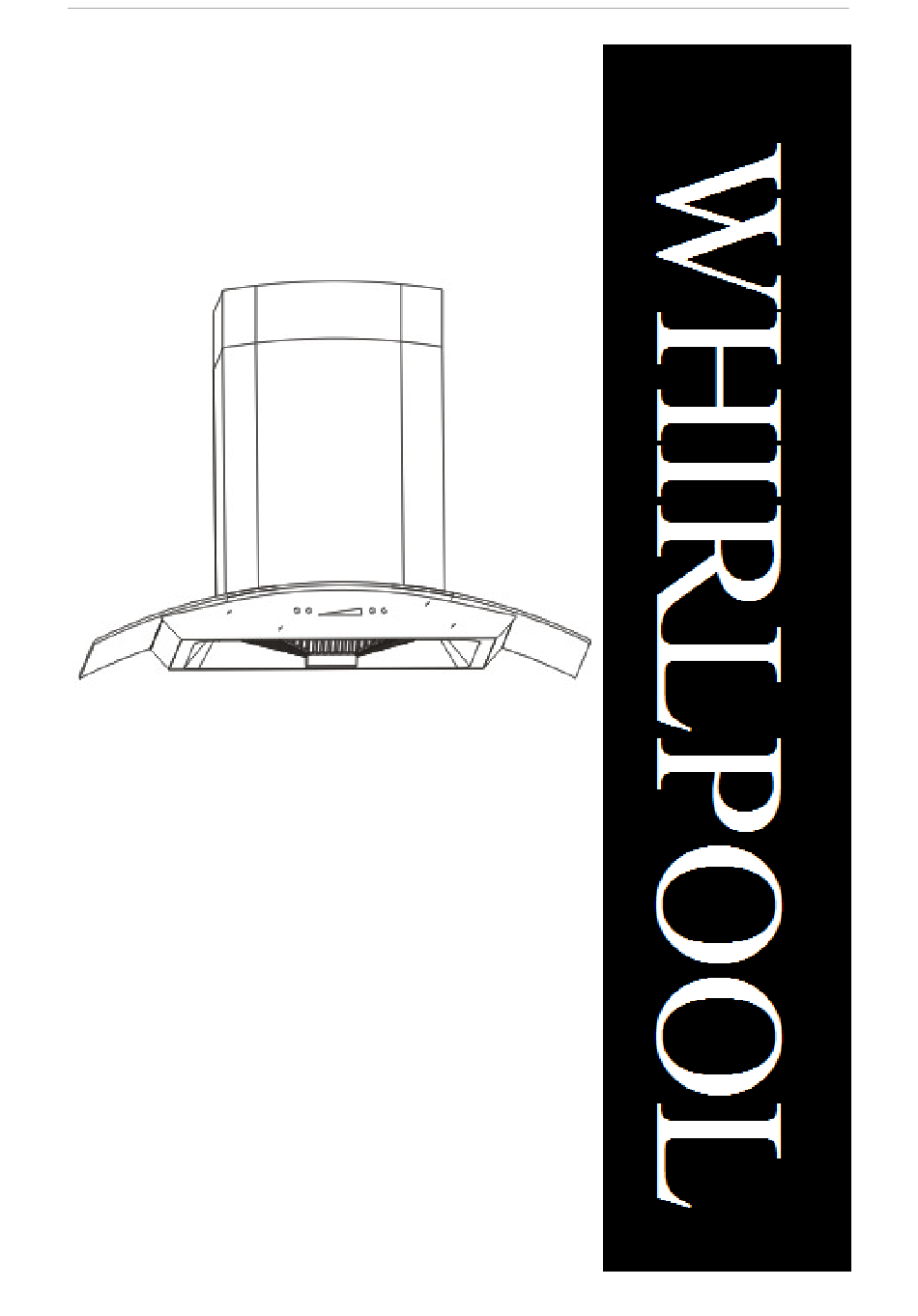

- Page 1 INSTRUCTION MANUAL CURVED GLASS HOOD AKR914CIXM...
- Page 2 Manual, our appliance will give you constant high performance and will remain efficient for many years to come. CONTENTS RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION & USE MAINTENANCE Product Specification & Technical Parameters AKR914CIXM Model Rated Voltage 220-240V ～ Rated Power Frequency 50Hz Light Power 2x1.5W...
- Page 3 * Only a qualified and trained service technician can undertake the work of installation and servicing. * This appliance can not use extend cord. * Check that the mains voltage corresponds to the one indicated on the rating plate fixed inside the hood. * Check that the domestic power supply guarantees adequate earthing.
- Page 4 * The hood should not be used by children or person not instructed on its correct usage. MAINTENANCE * Proper maintenance of the Range Hood will assure proper performance of the unit. * Disconnect the hood from the main supply before carrying out any maintenance work.
- Page 5 supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. * There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
- Page 7 COMPONENTS Components 1pcs grease filter 1pcs Charcoal filter 1pcs Hood body 2pcs steel bolt 3pcs Cross self-drill bolt 1pcs Exhaust 1pcs Exterior chimney 1pcs Inner chimney 2pcs Cross discal thread bolt 1pcs Fixing frame 2pcs Cross discal bolt-big head 2pcs Flat rubber band 2pcs Plastic distensible sleeve...
- Page 8 3. When the appliance has been adjusted, fix the hood using the screws A. For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with the product, kindly check the screws are suitable for the type of wall in which the hood is to be fixed.
- Page 9 Fig.4 Fig.5 DUCT FIXING Caution: reduce risk fire, recommend use aluminum ductwork. Attach an adequate length of φ150mm round duct into the recessed area of the air outlet adapter. The duct has to be secured using two screws from two sides of the air outlet adapter.
- Page 10 A straight, short duct run will allow the hood to perform most efficiently. Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
- Page 11 OPERATION OF CONTROLS Commands pattern: A = ON/ OFF B = TIMER C = DIGITAL DISPLAY D = SLIDER BAR SENSOR TOUCH SWITCH E = FAN ON/ OFF F = LIGHT SPEED SETTING When activate key A, the light will go on, key C will be flashing from max to min.
- Page 12 MAINTENANCE Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. GREASE FILTER * The grease filters should be cleaned frequently (every two months of operation, or more frequently for heavy use). Use a warm detergent solution.
- Page 13 *The filters may also be washed in the dishwasher. * Please take note that the aluminum panels may alter in color after several washes. HOOD CLEANING Glass and aluminum are two of the easiest materials to keep clean. Occasional care will help preserve its fine appearance. Cleaning tips: * Hot water with soap or detergent is all that is usually needed.
- Page 14 the problem S.No. Status Reasons Solutions Lamp doesn’t Power supply not Check if the power work connected cord is properly connected or not Lamp is damaged Call consumer service for support Hood gives out Filter not Remove and refit loud noise properly fitted the filters in its place...
