INSTRUCTION MANUAL
Telescopic Hood
AKR6152IXDS-C / AKR9152IXDS-C

Advertisement

loading

  Summary of Contents for Whirlpool AKR6152IXDS-C

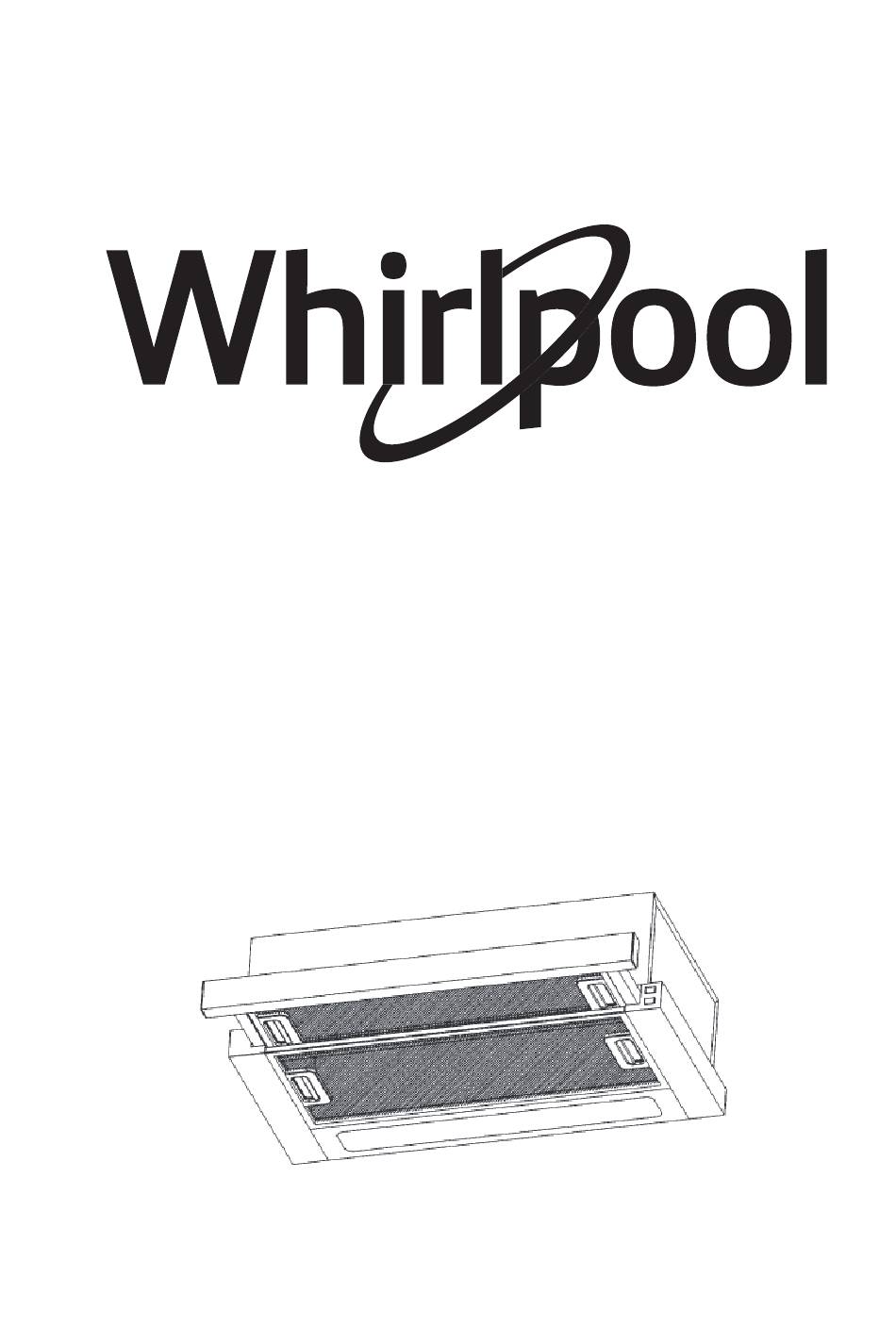

  • Page 1 INSTRUCTION MANUAL Telescopic Hood AKR6152IXDS-C / AKR9152IXDS-C...
  • Page 2: Table Of Contents

    Contents For Your Safety ����������������������������������������������������������������������� 3 Safety Precautions ������������������������������������������������������������������� 3 Before connecting to the electricity network: ���������������������������� 3 WARNINGS! ����������������������������������������������������������������������������� 3 Use and Care �������������������������������������������������������������������������� 4 Incandescent Globe(Light bulb) ����������������������������������������������� 5 Controls ������������������������������������������������������������������������������������ 5 Mechanical Switch ������������������������������������������������������������������� 6 Cleaning your hood ������������������������������������������������������������������ 6 Troubleshooting ������������������������������������������������������������������������...
  • Page 3: For Your Safety

    For Your Safety Carefully read the following important information regarding installation safety and maintenance� Keep this information booklet accessible for future reference� The appliance has been designed for use in a Recirculation/Ducted installation� Safety Precautions Take care when the Hood is operating simultaneously with an open fireplace or burner that depend on natural ventilation as the Hood removes air from the room which, a burner or fireplace may need for combustion.
  • Page 4: Use And Care

    and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety� ● Children should be supervised to ensure that they do not play with the appliance� ● There shall be adequate ventilation in the room when the Range Hood is used at the same time as appliances burning gas or other fuels�...
  • Page 5: Incandescent Globe(Light Bulb)

    detergent� Incandescent Globe(Light bulb) The light globe is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the light notably reduces the life of the bulb� To replace the light globe remove the anti-grease filters. Reach under the glass diffuser and unscrew the globe (See Fig�...
  • Page 6: Mechanical Switch

    Mechanical Switch Commands Pattern: (Fig�3) A= LIGHT B= SPEED II C=OFF D= SPEED I E= LIGHT F=OFF Fig�3 Cleaning your hood The proper function of the hood requires regular maintenance operations. The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance�...
  • Page 7: Troubleshooting

    The filters may also be washed in the dishwasher. Before removing the filters, you should remove the outside filter first, then pull the slide-out shell to the farthest distance position prior to removing the inside filter. When installing the filters, install the inside filter first with the slide out shell in the farthest distance position, and then install the outside filter.
  • Page 8: Disposal

    Disposal By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product� The symbol on the product indicates that this product may not be treated as household waste.
  • Page 9: Dimensions

    An omnipolar switch with a minimum aperture of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network� Dimensions AKR9152IXDS-C AKR6152IXDS-C Fig�4...
  • Page 10: Lnstrudions For Installation

    lnstrudions for Installation Install range hoods in accordance with the manufacturer's instructions� The range hood clearance should ha ve a minimum 650mm to 700mm from the top of the cooking surface to the underside of the Hood� WARNING: DO NOT penetrate any screws into the range hood as this may result in electrical hazards.
  • Page 11 Fig�6 Fix the appliance to the wall and align it in horizontal position to the wall cupboards. When the appliance has been adjusted, fix the hood using the screws (A)� For various installation types, use screws and screw anchors suited to the type of wall (e�g�...
  • Page 12: Warranty

    Warranty...

This manual is also suitable for:

Akr9152ixds-c
