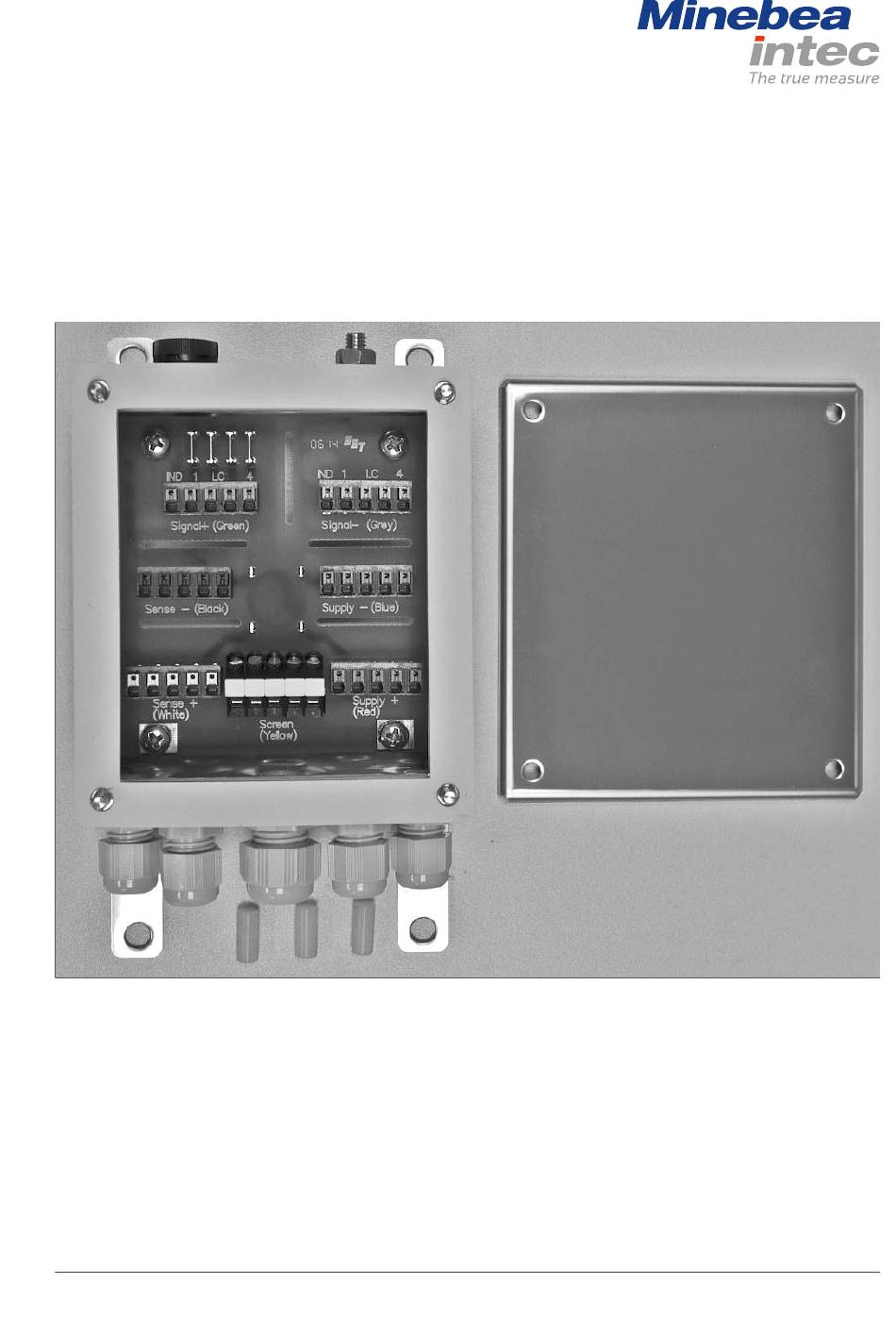

- Page 1 Installation Manual Cable Junction Box PR 6130/35S Translation of the Original Installation Manual 9499 053 03500 Edition 3.4.0 01/20/2020 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualiied personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
Cable Junction Box PR 6130/35S Table of contents Table of contents Introduction............................3 Read the manual................................. 3 This is what operating instructions look like ......................3 This is what lists look like............................3 This is what menu items and softkeys look like..................... 3 This is what the safety instructions look like...................... - Page 4 Cable Junction Box PR 6130/35S Table of contents Cleaning ..................................17 Disposal ............................. 18 Appendix ............................19 Certiicates................................. 19 EN-2 Minebea Intec...
-
Page 5: Introduction
1 Introduction Cable Junction Box PR 6130/35S Introduction Read the manual Please read this manual carefully and completely before using the product. This manual is part of the product. Keep it in a safe and easily accessible location. This is what operating instructions look like 1. -
Page 6: Hotline
Cable Junction Box PR 6130/35S 1 Introduction NOTICE Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. -
Page 7: Safety Instructions
2 Safety instructions Cable Junction Box PR 6130/35S Safety instructions General notes CAUTION Warning of personal injury. The product was in perfect condition with regard to safety features when it left the factory. To maintain this condition and to ensure safe operation, the user must follow the instructions and observe the warnings in this manual. -
Page 8: Initial Inspection
General information Repairs are subject to inspection and must be carried out at Minebea Intec. In case of defect or malfunction, please contact your local Minebea Intec dealer or service center for repair. When returning the device for repair, please include a precise and complete description of the problem. -
Page 9: Speciications
3 Speciications Cable Junction Box PR 6130/35S Speciications Equipment supplied Description Cover Box incl. electronics Sealing ring for M16 Locking pin 6 mm (3×) Cable gland M16 Cable gland M12 (4×) Sealing ring for M12 (4×) Gasket Jumpers for corner correction resistors... -
Page 10: Technical Data
Cable Junction Box PR 6130/35S 3 Speciications Technical Data Protection classes per DIN EN 60529 IP68, IP69: Dust-proof and leak-proof against water, with harmful efects when immersed, (0.5 m water depth, 1,000 h) and water jets (high pressure and temperature). -
Page 11: Dimensions
3 Speciications Cable Junction Box PR 6130/35S Dimensions all dimensions in mm Minebea Intec EN-9... -
Page 12: Installation And Connection Information
Cable Junction Box PR 6130/35S 4 Installation and connection information 4 Installation and connection information General information Only use the cable glands provided by the manufacturer. Install the junction box so that the cable glands are on the bottom. Do not open the junction box when connected to the voltage supply. -
Page 13: Connecting Load Cells With A 6-Wire Cable
4 Installation and connection information Cable Junction Box PR 6130/35S Terminal contact - sense (connection cable) Sense + white Terminal contacts + sense (load cells) 1–4 Terminal contact + sense (connection cable) Supply + Terminal contacts + supply voltage (load cells) 1–4... -
Page 14: Cable Gland
Cable Junction Box PR 6130/35S 4 Installation and connection information Cable gland The cable glands each have one sealing ring. The cables have to be fed into the device via glands to ensure leak-tightness. The following cable diameters are suitable: 5…10 mm for gland M16 and 3…6 mm for cable gland M12. -
Page 15: Cable Connections
5 Cable connections Cable Junction Box PR 6130/35S Cable connections General information In order to use the junction boxes for load cells with 4-wire cables, jumpers J1 and J2 must be soldered in; see Chapter 4.2. Cable entry must be from below. -
Page 16: Equipotential Bonding Conductor
Cable Junction Box PR 6130/35S 5 Cable connections Equipotential bonding conductor NOTICE It is especially important that the ground is connected correctly to the components and the cable junction box. You must also ground the device separately and ensure the power supply is properly shielded against the efects of lightning. -
Page 17: Electronic Corner Correction
Electronic corner correction 5.5.1 General information Minebea Intec load cells are produced according to high quality standards and have precisely adjusted output values. Nonetheless, mechanical imbalances can cause impermissible corner load errors to arise, which will need to be ofset by soldering in resistors. -
Page 18: Procedure
Cable Junction Box PR 6130/35S 5 Cable connections NOTICE Loss of calibration accuracy An unstable signal can arise due to contact problems. This results in luctuating zero points, which lead to the loss of calibration accuracy. Do not use a potentiometer. -
Page 19: Maintenance/Repairs/Soldering Work/Cleaning
Repairs Repairs are subject to inspection and must be carried out at Minebea Intec. In case of defect or malfunction, please contact your local Minebea Intec dealer or service center for repair. When returning the device for repair, please include a precise and complete description of the problem. -
Page 20: Disposal
Cable Junction Box PR 6130/35S 7 Disposal Disposal If the packaging is no longer required, please take it to your local waste disposal facility and/or a reputable disposal company or collection point. The packaging largely consists of environmentally friendly materials which can be used as secondary raw materials. -
Page 21: Appendix
8 Appendix Cable Junction Box PR 6130/35S Appendix Certiicates Ser. no. Description Document no. EU-Declaration of Conformity MEU17042 Declaration of Conformity MDC17005 Minebea Intec EN-19... - Page 24 (bg) čeština (Мs) dansk (da) Prohlпšenъ o shoНě Overensstemmelseserklæring ή ή 1έ εoНel výrobku ή čъslo výrobku ή platnц pouгe 1έ 1. Produktmodel / produktnummer / gælder kun μ pro čъslo projektuμ for projektnummer: 2έ 2. Jméno a adresa výrobce (2.1) a jeho 2.
- Page 25 eesti keel (et) français (fr) hrvatski (hr) Vastavusdeklaratsioon Déclaration de conformité Izjava o sukladnosti 1. Tootemudel / tootenumber / kehtib vaid 1. Modèle / numéro de produit / valable 1. Model proizvoda / broj proizvoda / vrijedi järgmise projekti puhul: uniquement pour le numéro de projet: samo za broj projekta: 2έ...
- Page 26 latviešu valoНa (lv) malti (mt) nederlands (nl) Atbilstības НeklarāМija ϊikjaraггjoni ta’ konformitр Conformiteitsverklaring 1. Produkta modelis / produkta numurs ή Нerīgs 1. Mudell tal-prodott / numru tal-prodott / validu 1. Productmodel / productnummer / uitsluitend biss għan-numru tal-proġettμ tikai projektam Nr.: geldig voor projectnummer: 2έ...
- Page 27 slovenčina (sk) slovenščina (sl) suomi (fi) Vyhlásenie o zhode Izjava o skladnosti Vaatimustenmukaisuusvakuutus 1έ εoНel výrobku ή čъslo výrobku ή platnц len pre 1έ εoНel proiгvoНa ή serijska številka proiгvoНa ή 1. Tuotemalli / tuotenumero / koskee vain čъslo projektuμ veljavno samo гa številko projektaμ...
- Page 30 Published by Minebea Intec GmbH | Meiendorfer Strasse 205 A | 22145 Hamburg, Germany Phone: +49.40.67960.303 | Email: info@minebea-intec.com www.minebea-intec.com...
