Installation manual

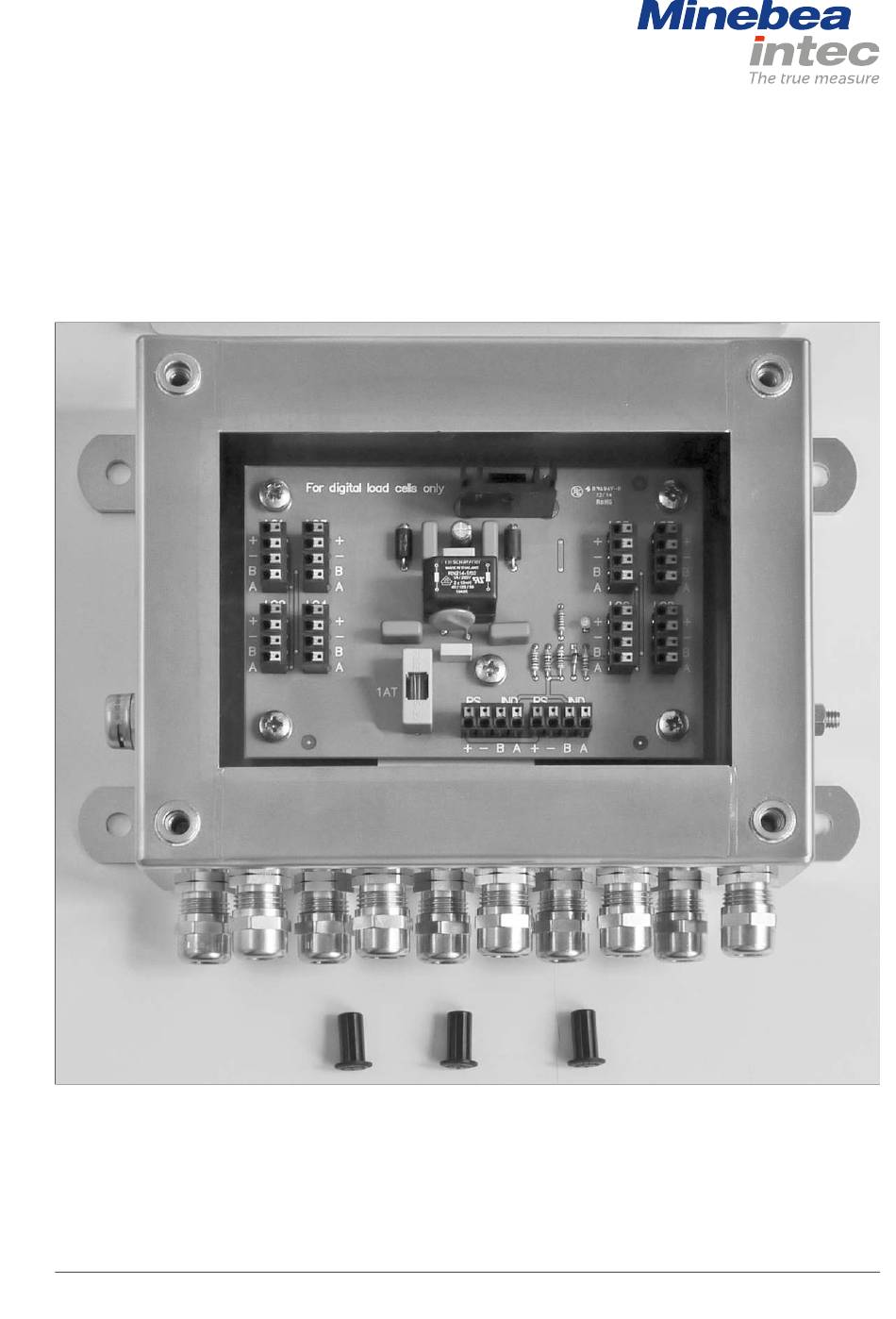

Cable junction box for digital load cells PR 6024/68S
Translation of original installation manual
9499 053 46900
Edition 3.5.0
01/17/2020
Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany
Phone: +49.40.67960.303 Fax: +49.40.67960.383

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR 6024/68S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minebea Intec PR 6024/68S

Summary of Contents for Minebea Intec PR 6024/68S

  • Page 1 Installation manual Cable junction box for digital load cells PR 6024/68S Translation of original installation manual 9499 053 46900 Edition 3.5.0 01/17/2020 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
  • Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualiied personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.

  • Page 3: Table Of Contents

    Cable junction box for digital load cells PR 6024/68S Table of contents Table of contents Introduction............................3 Read the manual................................. 3 This is what operating instructions look like ......................3 This is what lists look like............................3 This is what menu items and softkeys look like..................... 3 This is what the safety instructions look like......................
  • Page 4 Cable junction box for digital load cells PR 6024/68S Table of contents Cleaning ..................................19 Disposal .............................20 Appendix ............................21 Certiicates/safety instructions ..........................21 EN-2 Minebea Intec...

  • Page 5: Introduction

    1 Introduction Cable junction box for digital load cells PR 6024/68S Introduction Read the manual Please read this manual carefully and completely before using the product. This manual is part of the product. Keep it in a safe and easily accessible location.

  • Page 6: Hotline

    Cable junction box for digital load cells PR 6024/68S 1 Introduction NOTICE Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions.

  • Page 7: Safety Instructions

    2 Safety instructions Cable junction box for digital load cells PR 6024/68S Safety instructions General notes CAUTION Warning of personal injury. The product was in perfect condition with regard to safety features when it left the factory. To maintain this condition and to ensure safe operation, the user must follow the instructions and observe the warnings in this manual.

  • Page 8: Initial Inspection

    General information Repairs are subject to inspection and must be carried out at Minebea Intec. In case of defect or malfunction, please contact your local Minebea Intec dealer or service center for repair. When returning the device for repair, please include a precise and complete description of the problem.

  • Page 9: Speciications

    3 Speciications Cable junction box for digital load cells PR 6024/68S Speciications Equipment supplied Description Cover Box incl. electronics Ex-zone locking pin 6 mm (3×) Cable gland M16 (10×) Pressure compensation element The following items are not shown: Drilling template...

  • Page 10: Technical Data

    Cable junction box for digital load cells PR 6024/68S 3 Speciications Technical Data Protection classes per DIN EN 60529 IP68, IP69: Dust-proof and leak-proof against water, with harmful efects when immersed, (0.5 m water depth, 1,000 h) and water jets (high pressure and temperature).

  • Page 11: Electromagnetic Compatibility (Emc)

    3 Speciications Cable junction box for digital load cells PR 6024/68S Electromagnetic Compatibility (EMC) All data in compliance EN 61326 industrial section Housing High frequency electromagnetic ields EN 61000-4-3 10 V/m (80…3000 MHz) Electrostatic discharge (ESD) EN 61000-4-2 6/8 kV...

  • Page 12: Dimensions

    Cable junction box for digital load cells PR 6024/68S 3 Speciications Dimensions all dimensions in mm EN-10 Minebea Intec...

  • Page 13: Installation And Connection Information

    4 Installation and connection information Cable junction box for digital load cells PR 6024/68S 4 Installation and connection information General information The safety instructions in Chapter must be followed! Only use the metal EX EMC cable glands provided by the manufacturer.

  • Page 14: Led

    Cable junction box for digital load cells PR 6024/68S 4 Installation and connection information The green LED (1) lights up when the supply voltage U = 24 V. 4.4 Fuses The power supply is protected by a time-delayed 1.0 A fuse (2) in a fuse holder with protection against contact.

  • Page 15: Cable Gland

    4 Installation and connection information Cable junction box for digital load cells PR 6024/68S When a fuse has tripped: Disconnect the junction box from all power sources. Determine and eliminate the cause of the error. Replace the fuse. Make sure that fuses are replaced only using fuses of the same type, see Chapter 3.2.
  • Page 16 Cable junction box for digital load cells PR 6024/68S 4 Installation and connection information Unscrew the sleeve screw cap (1). 2. Slide the cap (1) and plastic cone (3) onto the cable (2). 3. Guide the cable (5) through the gland (6).

  • Page 17: Cable Connections

    PR 6024/68S junction box. Data and supply cables The PR 6124/xxD data cable must be used to connect the PR 6024/68S cable junction box to the device, max. length: 300 m. The PR 6124/xxP power cable must be used to connect the PR 6024/62S power supply to the PR 6024/68S cable junction box, max.
  • Page 18 Cable junction box for digital load cells PR 6024/68S 5 Cable connections Connecting 8 load cells to the PR 5510/04 interface card EN-16 Minebea Intec...
  • Page 19 5 Cable connections Cable junction box for digital load cells PR 6024/68S Connecting 12 load cells to the PR 5510/04 interface card Minebea Intec EN-17...

  • Page 20: Equipotential Bonding Conductor

    Cable junction box for digital load cells PR 6024/68S 5 Cable connections Equipotential bonding conductor NOTICE It is especially important that the ground is connected correctly to the components and the cable junction box. You must also ground the device separately and ensure the power supply is properly shielded against the efects of lightning.

  • Page 21: Maintenance/Repairs/Soldering Work/Cleaning

    Repairs Repairs are subject to inspection and must be carried out at Minebea Intec. In case of defect or malfunction, please contact your local Minebea Intec dealer or service center for repair. When returning the device for repair, please include a precise and complete description of the problem.

  • Page 22: Disposal

    Cable junction box for digital load cells PR 6024/68S 7 Disposal Disposal If the packaging is no longer required, please take it to your local waste disposal facility and/or a reputable disposal company or collection point. The packaging largely consists of environmentally friendly materials which can be used as secondary raw materials.

  • Page 23: Appendix

    8 Appendix Cable junction box for digital load cells PR 6024/68S Appendix Certiicates/safety instructions Ser. no. Description Document no. EU-Declaration of Conformity MEU17054 Declaration of Conformity MDC17005 Manufacturer's Certiicate SWT 12 ATEX004 X Safety instructions 65835-790-16 Minebea Intec EN-21...
