Single-family hands-free colour video kit with video door phone answering service
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Mod.
1722
DS 1722-010C
LBT 8546

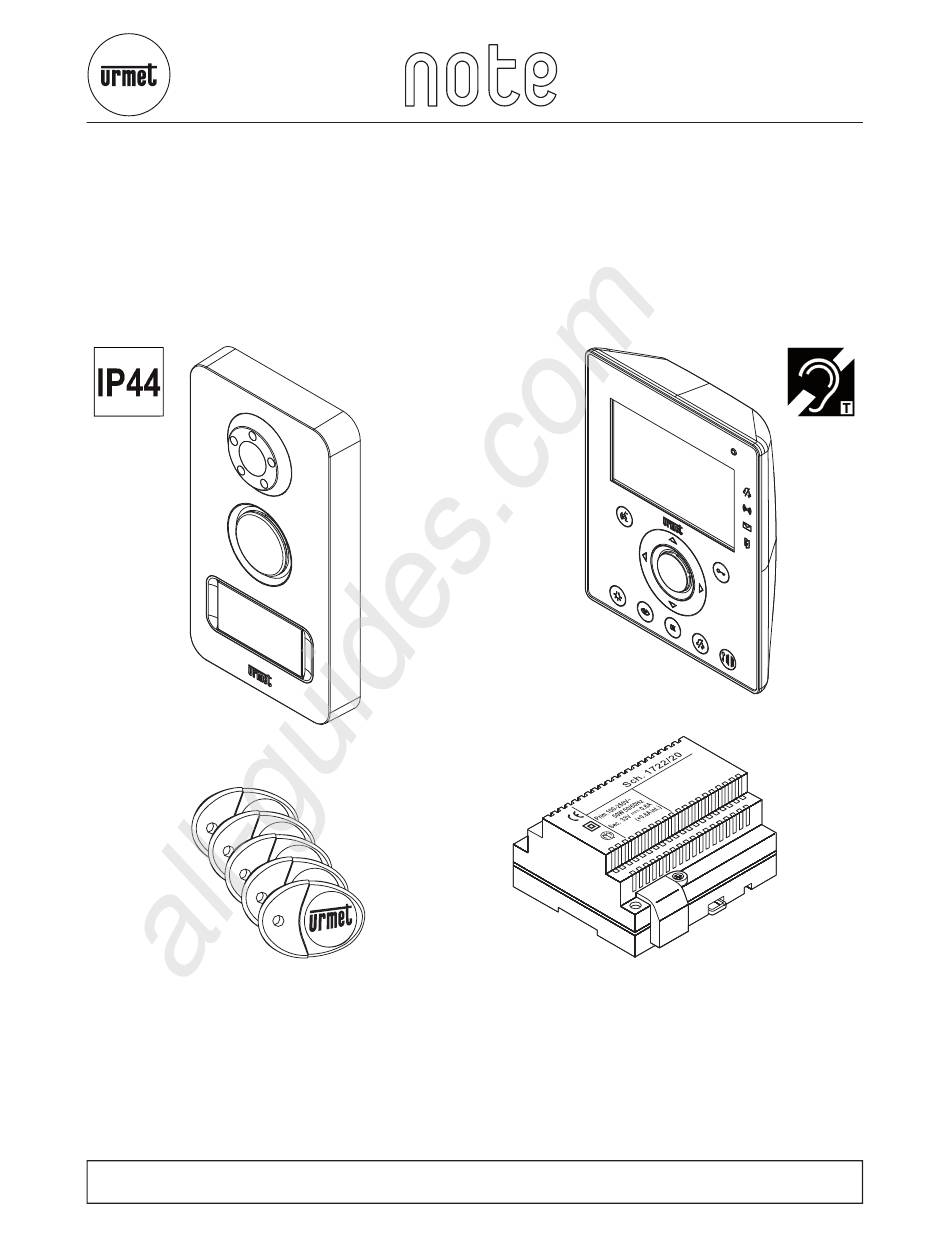

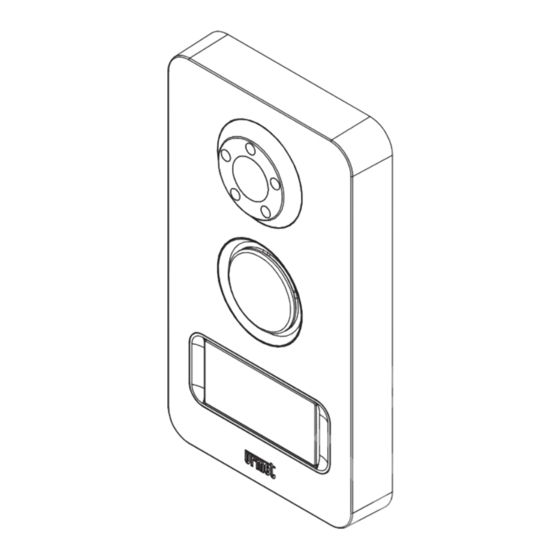

SINGLE-FAMILY HANDS-FREE COLOUR VIDEO KIT WITH
VIDEO DOOR PHONE ANSWERING SERVICE
Ref. 1722/71
USER HANDBOOK
The CD supplied contains the handbook full version with traslation into Italian, English, French, German, Spanish and Polish.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Note 1722/71 and is the answer not in the manual?

Questions and answers

Related Manuals for urmet domus Note 1722/71

Summary of Contents for urmet domus Note 1722/71

  • Page 1 All manuals and user guides at all-guides.com Mod. 1722 DS 1722-010C LBT 8546 SINGLE-FAMILY HANDS-FREE COLOUR VIDEO KIT WITH VIDEO DOOR PHONE ANSWERING SERVICE Ref. 1722/71 USER HANDBOOK The CD supplied contains the handbook full version with traslation into Italian, English, French, German, Spanish and Polish.

  • Page 2: General Description

    All manuals and user guides at all-guides.com GENERAL DESCRIPTION The Ref. 1722/71 video door phone kit is particularly easy to install as only two non-polarised wires are required for interconnection between the power supply unit and video door phone and between the video door phone and call station. System modularity permits implementation of various functions in addition to basic features including, for example, video surveillance, presence control, activation of loads, etc.
  • Page 3 All manuals and user guides at all-guides.com PROGRAMMING AND FUNCTIONING DESCRIPTION OF THE FRONT PANEL OF THE vIDEO DOOR PHONE display microphone ringer muted indicator (Mute) presence control active indicator video door phone answering service status and message in memory indicator door open and automatic door opener active indicator door opener button OSD menu navigation buttons...

  • Page 4: Programming Tree

    All manuals and user guides at all-guides.com PROGRAMMING TREE With the video door phone in idle status, press the key to access the following programming menu: PLAY Display videos in memory PLAY RECORDED VIDEOCLIPS Play back audio messages in memory VOICE MESSAGE PLAYING Record audio message in memory...

  • Page 5: Volume Control

    All manuals and user guides at all-guides.com GENERAL SETTINGS OF THE vIDEO DOOR PHONE 2.3.1 Adjustment of the time and date • Press the key to switch on the video and access the main menu; • Scroll the menu with the keys to highlight the icon , then press SETTINGS...

  • Page 6: Fast Access Menu

    All manuals and user guides at all-guides.com § If no key is pressed within 1 minute from the call, the video door phone returns to idle status. Following a call, the operations listed below can be carried out on the “Master” video door phone: •...
  • Page 7 All manuals and user guides at all-guides.com adjustment of image contrast adjustment of image colour The following commands are also available in the screen page: RESET restores the factory-set values of loudspeaker volume, brightness, contrast and colour exit. accesses the on-line help which describes the main functions present in the screen page. §...
  • Page 8 All manuals and user guides at all-guides.com The following commands are available in the lower part: selects the previous video. starts display of the video; during display, a counter of the seconds of the video is started and the icon changes to with which it is possible to suspend display.

  • Page 9: Access Control

    All manuals and user guides at all-guides.com 2.8.2 Playback To listen to messages left by other users: • Press the key to switch on the video and access the main menu; • Scroll the menu with the keys to highlight the icon , then press VOICE MESSAGE PLAYING...

  • Page 10: Auto-On Function

    All manuals and user guides at all-guides.com 2.10 AUTO-ON FUNCTION Pressing the button, the image of the TV camera of the main call station can be displayed on the video door phone. If the system comprises a second call station, pressing the key again, the images of the TV camera of the additional call station are displayed. TV camera TV camera call station 1 call station 2 “Master” video door phone “Slave” video door phones Available on: ¸ ¸ 2.11 CALL TONE MUTING To mute the call tone, press the key.
  • Page 11 All manuals and user guides at all-guides.com • Scroll the menu with the keys to highlight the icon , then press VIDEO DOORPHONE SETTINGS • Scroll the menu with the keys to highlight the icon , then press DEFAULT • A screen page is displayed in which the user is requested to confirm restore of the factory settings by positioning the cursor on YES or NO and then confirming with • Following confirmation, the video door phone asks the user to select the language (see the full manual).
  • Page 12 All manuals and user guides at all-guides.com DS 1722-010C LBT 8546 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmetdomus.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmetdomus.it Fax +39 011.24.00.300 - 323 Designed by Urmet Made in P.R.C.
