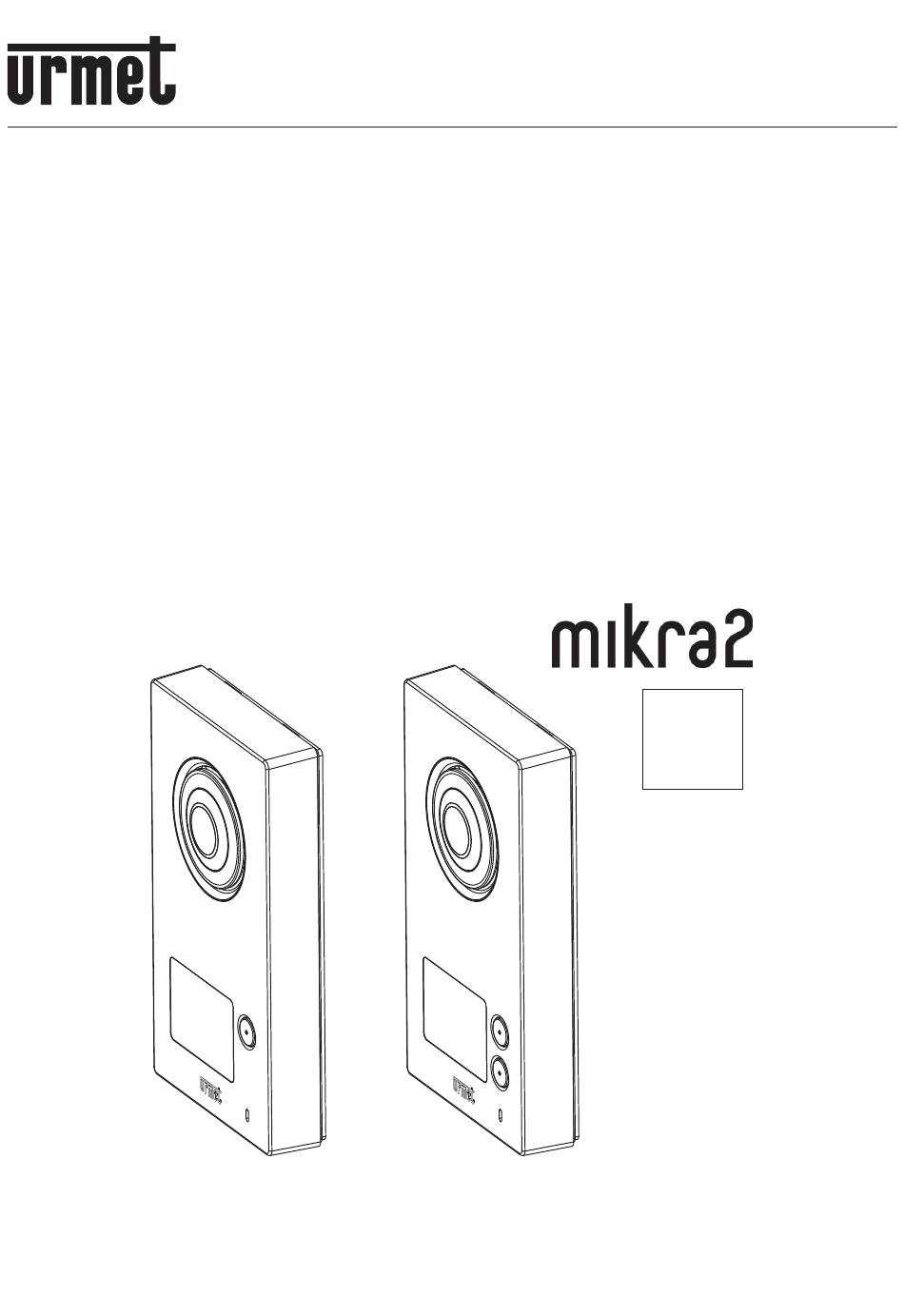

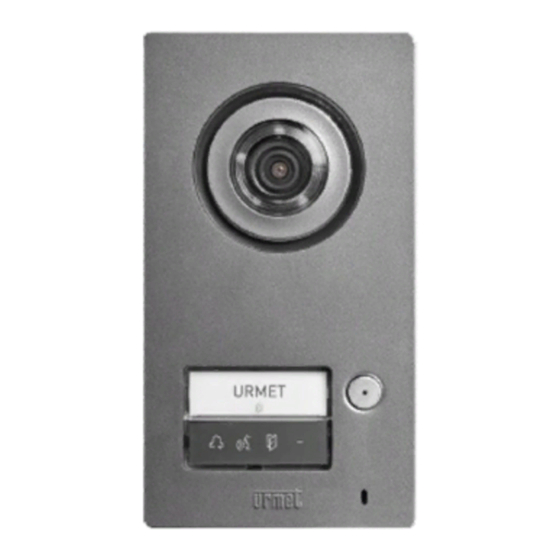

  • Page 1 Mod. 1722 DS 1722-117 LBT 20700 ONE- AND TWO-FAMILY PANEL FOR KIT 1722/95 - 1722/96 Sch./Ref. 1722/115 - 1722/116 IP55 IK07...
  • Page 2 2.6 SPEAKER SOUND LEVEL ADJUSTMENT ..................11 3 TECHNICAL SPECIFICATIONS ....................... 11 4 KEY TO SYMBOLS ..........................11 DESCRIPTION The one- and two-family panels ref. 1722/115 and ref. 1722/116 have the following main features: • Vandal-proof panel with weatherproof zama front (IP55). •...
  • Page 3 FRONT VIEW Panel with 1 calling button Panel with 2 calling buttons Ref. 1722/115 Ref. 1722/116 (present only in (present only in one-household kit Ref. 1722/95) two-household kit Ref. 1722/96) INSIDE Speaker Camera lighting LED Camera Name tag(s) Calling button(s)
  • Page 4 2.2 INSTALLATION METHOD • Install the panel at the indicated heights checking that the caller is framed by the camera. • Connect the wires to the terminal boards. • Fit the name tags on the front. • Program the device. •...
  • Page 5 2.3 DESCRIPTION OF THE TERMINALS Hall button terminals for pedestrian electric lock Hall button terminals for garage gate lock Garage gate opener operation dry contact - maximum switch 1 A @ 30 V BUS line Pedestrian electric lock operation - maximum switch 12 V~ 15 VA 2.4 PEDESTRIAN GATE ELECTRIC LOCK ACTIVATION TIME SETTING The pedestrian gate electric lock activation time can be adjusted using the dip switches present in the...
  • Page 6 2.6 SPEAKER SOUND LEVEL ADJUSTMENT Volumes are calibrated by default so not to require adjustments in most cases. Use a screwdriver to adjust the speaker volume, if required. Do not change the position of this trimmer TECHNICAL SPECIFICATIONS Maximum consumption: ........................300 mA Stand-by (basic configuration): ......................50 mA Working power: ..........................max 10.4 W Dimensions (LxDxH): ......................100 x 180 x 28 mm Name tag dimensions: ........................48 x 15 mm Tag and button light: ........................
