Summary of Contents for aidapt VP181S

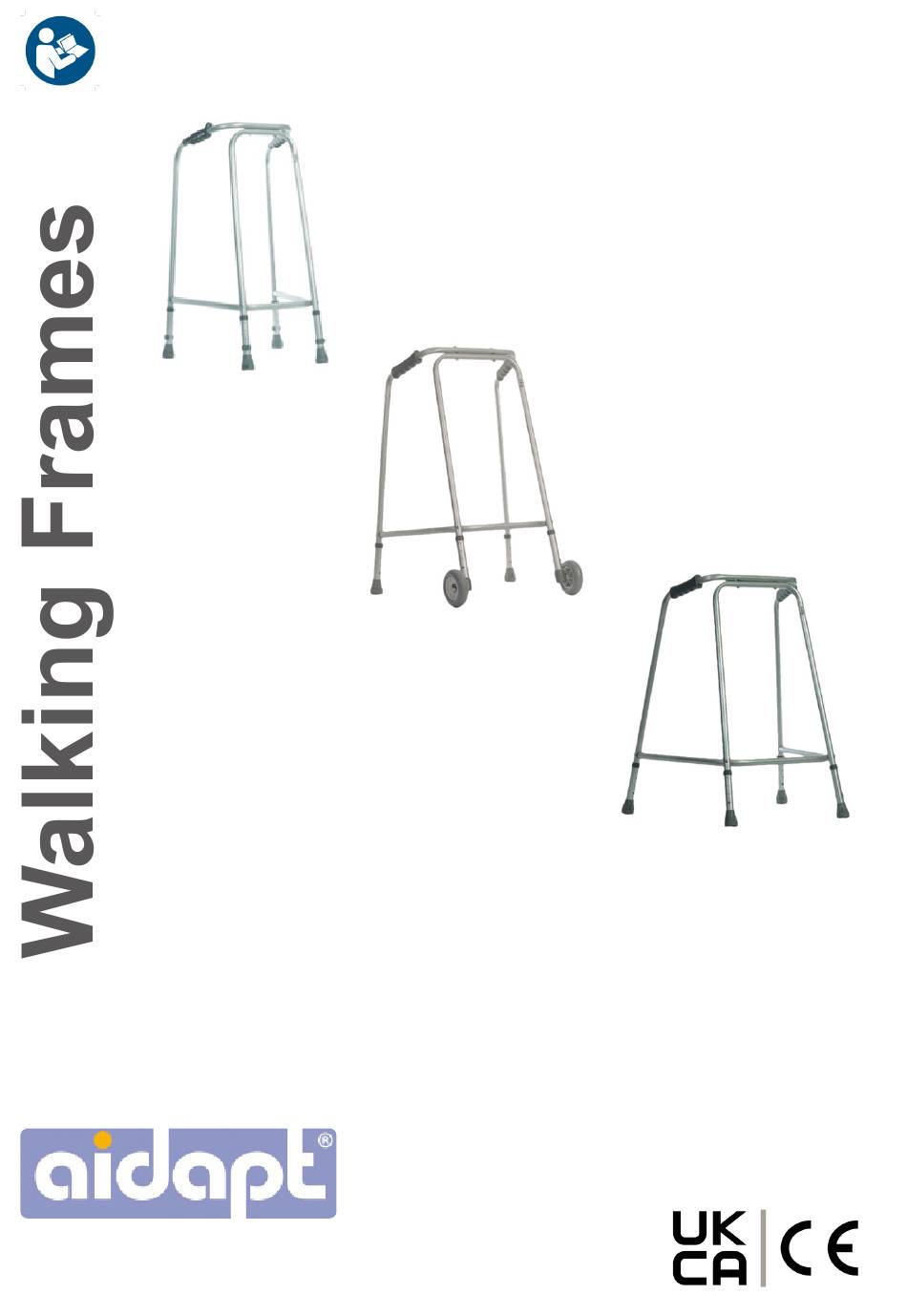

- Page 1 This user manual contains essential information in relation to safe use and should be re- tained with the walking frame for reference User Manual Aluminium Walking Frame (non-foldable) Aidapt Bathrooms Limited Lancots Lane Sutton Oak St Helens Merseyside WA9 3EX UK...
-
Page 2: Table Of Contents
Contents Symbols used in this manual 2.0 Introduction Intended Use 2.2 Contraindications Manufacturer 2.4 EU Authorised Representative Compliance Marking 2.6 Device Life Expectancy Safety Warnings Using the Walking Frame Pre-use Checks Height Adjustment Care and Maintenance Maintenance & Re-issue 5.2 Cleaning & Disinfection 6.0 Technical Specification Dimensions 6.2 End of Life Recycling/Disposal 6.3... -
Page 3: Introduction
2.0 Introduction Thank you for purchasing this Aidapt Walking Frame. This user manual has been created to ensure that you are in possession of the knowledge to safely use and maintain your walking frame. Correct and appropriate use of this device will reduce the risks associated with manual patient handling. All lifting /transferring tasks should be assessed and planned by a competent person. This manual contains essential safety information, it must be thoroughly read and understood prior to use. The manual should be retained with the walking frame and made available to all users. This manual contains various Warnings, Cautions and Notes. These should be regarded as follows;... -
Page 4: Compliance Marking
0044 (0)1744 745020 sales@aidapt.co.uk www.aidapt.co.uk 2.5 European Authorised Representative This walking frame has been placed on the EU market by: Aidapt BV Algolweg 22 3821BH Amersfoot Netherlands 2.6 Compliance Marking Your walking frame has been designed and tested in compliance with the requirements of International Standard BS EN ISO 11199-1, the EU Medical Device Regulations 2017/745 and the UK Medical Devices Reg- ulations. The device carries UKCA and CE marks to demonstrate compliance with the relevant Regulations. -
Page 5: Safety Warnings
3.0 Safety Considerations Please ensure that you read and fully understand all of the below safety considerations prior to use of the . 3.1 Assembly This device is supplied fully assembled and requires no assembly. 3.2 Safety Warnings WARNING SWL The safe working load (SWL) is the maximum user weight. Exceeding the listed weight capacity could put the user at risk. The maximum safe working load is clearly identified on each walking frame unit. This must not be exceeded, if you are over the specified weight capacity please contact the product specifier or your Occupational Therapist and do NOT use the walking frame. 180kg (28 stone) weight limit VP181S, VP128, VP129 Standard walking frame with wheels VP180S, VP122, VP123 Standard walking frame without wheels VP126, VP126S, VP127 Ultra narrow walking frame with wheels VP124, VP124S, VP124T Ultra narrow walking frame without wheels VP125K, VP125M, VP125T XL walking frame with wheels VP125B, VP125D, VP125F XL walking frame without wheels VP128T Paediatric standard walking frame with wheels... -
Page 6: Pre-Use Checks
CAUTION Ensure that the frame is stowed with care when transporting in a car boot. Damage can occur due to impact with car boot door. WARNING The walking frame must only be used on firm, level ground. Avoid wet floors and be aware of outdoor hazards such as wet leaves and ice. Walking frames must NEVER be used to negotiate steps or stairs. WARNING Wear flat, supportive shoes. WARNING Take special care if carrying a bag or similar package CAUTION Do not store this product in temperatures below freezing. 4.0 Use of the Walking Frame Please ensure that you have thoroughly read and understood all of the instructions and safety considerations in this User Manual. -
Page 7: Care And Maintenance
4.3 Using the Walking Frame Prior to use please ensure that you have read and understood all of the safety considerations in Section 3 of this manual. Getting into and out of chairs WARNING Never use the walking frame to pull you up into a standing position. The walking frame is NOT a transfer aid. Position the frame in front of the chair. Get up by pushing on the arms of the chair and transfer hands to frame when fully standing. To sit, using the frame walk back until you feel the chair at the back of your legs. Place hands gently on the chair arms, bend slightly forwards and sit gently. 5.0 Care and Maintenance 5.1 Maintenance &... -
Page 8: Technical Specification
6.0 Technical Specification 6.1 Dimensions All dimensions are in mm. Lightweight Aluminium Walking Frame (Non-Wheeled) A Lightweight Aluminium Walking Frame with a wide base for maximum stability, ideal for home use. • Lightweight aluminium walking frame is the ideal rehabilitation aid for use around the home • Non slip rubber ferrules ensure safe use on most surfaces • 6 height adjustment settings to suit most users • Ergonomic hand grips for extra comfort Part Nr Description Height to Width Depth Net Weight handgrip (kg) VP122 Standard walking frame 180kg 770-870 28st VP123... - Page 9 Net Weight handgrip (kg) VP128 Standard walking frame 180kg 800-900 28st VP129 Standard walking frame 180kg 870-970 28st VP181S Standard walking frame 180kg 750-850 28st VP126 Ultra narrow walking frame 180kg 780-880 28st VP126S Ultra narrow walking frame 180kg 690-790...
-
Page 10: End Of Life Recycling/Disposal
12. Warranty Your Aidapt walking frame carries a 12 month warranty from the date of purchase, subject to the following: 1. Should you experience any problems with your product within the first 12 months period please contact your point of purchase. 2. The product will be replaced during the warranty period free of charge, provided the product has been used strictly in accordance with the guidelines set out in this user guide. 3. Our warranty does not cover replacements, adjustments or repairs which may be required as a result of normal wear and tear, wilful or accidental damage, misuse, neglect or any other cause which is beyond the control of Aidapt Bathrooms Limited. 4. Modifications and repairs made to this product by unauthorised persons will render the warranty void. 5. Only parts manufactured or approved by Aidapt Bathrooms Limited shall be used to repair this product. Use of unauthorised parts will invalidate all warranties and remove all liability from Aidapt Bathrooms Limited for the safety of this product. 6. Aidapt Bathrooms Limited shall in no event be liable for any damages, costs or expenses arising from any claim made under this warranty (save for any legal liability of Aidapt Bathrooms Limited for death or personal injury resulting from the company’s negligence in respect of its products). 7. This warranty does not affect your statutory consumer rights. -
Page 11: Declaration Of Conformity
9.0 Declaration of Conformity 9.1 UKCA Marking... -
Page 12: Ce Marking
9.2 CE Marking... -
Page 13: Important Informtion
10.0 Important Information The information given in this instruction booklet must not be taken as forming part of or establishing any contractual or other commitment by Aidapt Bathrooms Limited, Aidapt (Wales) Ltd or its agents or its sub- sidiaries and no warranty or representation concerning the information is given. Please exercise common sense and do not take any unnecessary risks when using this product; as the user you must accept liability for safety when using the product. Please do not hesitate to contact the person who issued this product to you or the manufacturer (detailed below) if you have any queries concerning the assembly/use of your product. - Page 14 Manufactured by: Aidapt Bathrooms Limited Lancots Lane St Helens Merseyside, WA9 3EX 01744 745020 Overseas enquiries 00441744 745020 sales@aidapt.co.uk www.aidapt.co.uk Aidapt BV Algolweg 22 3821BH Amersfoot Netherlands Copyright (c) Aidapt Bathrooms Limited. The design of the product shown in this manual is vested in Aidapt Bathrooms LImited and should not be copied or reproduced in any way whatsoever without the express permission in writing byAidapt Bathrooms LImited. Issue 1.0 Published by Aidapt Bathrooms Limited May 2023...
