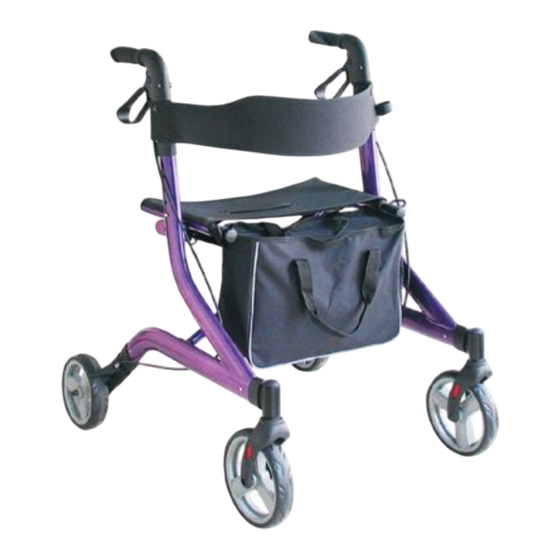

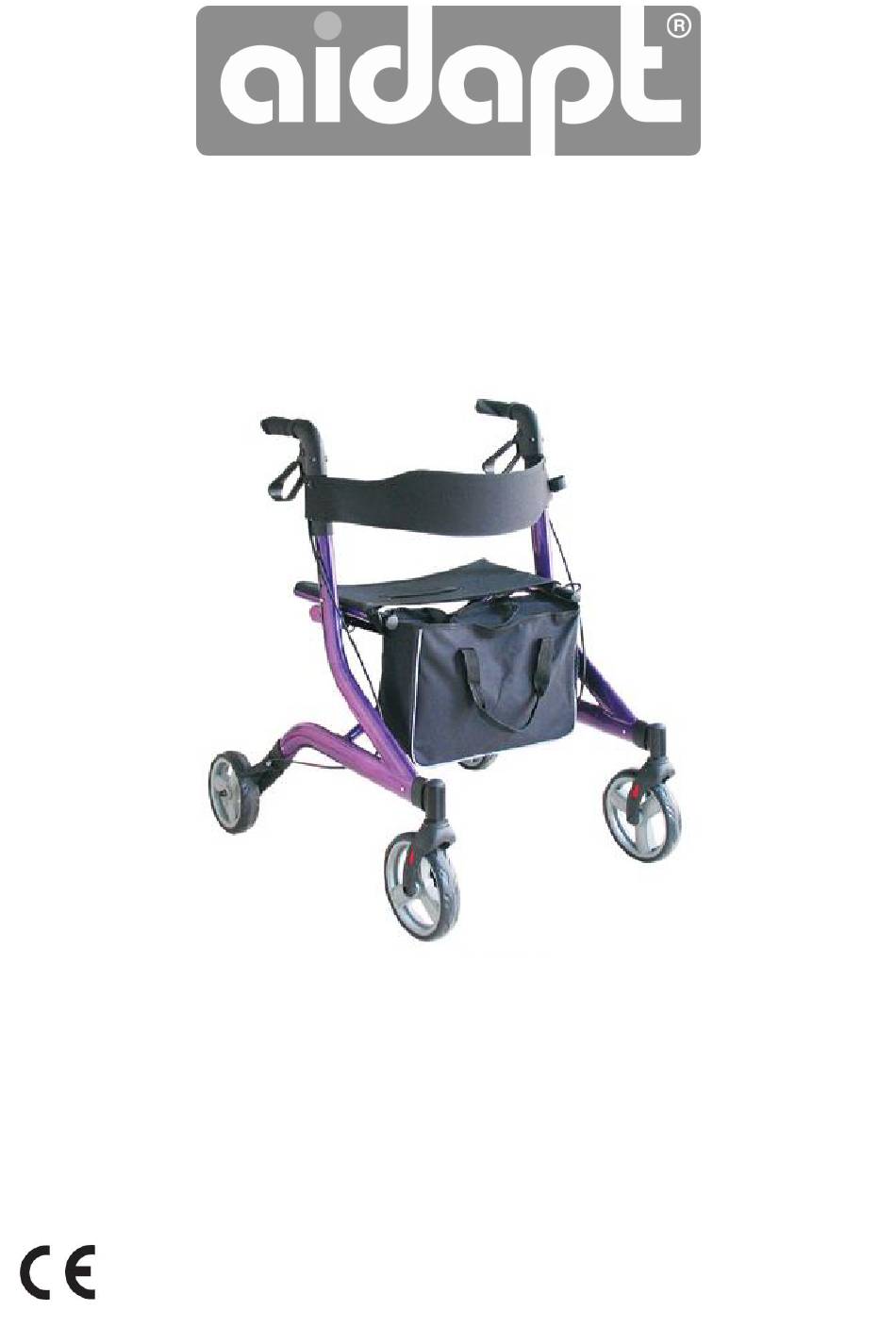

- Page 1 Aluminium 4-Wheeled Rollator VP183WHITE/PURPLE Usage and Maintenance Instructions...
-
Page 2: Before Use
Aidapt Rollator. Do not use or combine bags and/ or baskets from other manufacturers. When not in use, you can simply fold the Aidapt Rollator and store away until you require it next. The Aidapt range of tri-walkers and rollators are designed to be used both inside and outside the home. - Page 3 ASSEMBLY INSTRUCTIONS Carefully remove all packaging, including the cardboard tubes covering the knurled tube part of the brake assembly. Check the product thoroughly for damage or obvious faults. If you suspect the unit to be faulty, please do not use, but contact your supplier immediately for service.
- Page 4 Step 1: Install front wheel into receptacle located on the front of the frame whilst pressing the front wheel buttons. The buttons pop up when the wheel is securely in place. Repeat for second front wheel. (Figure 1). Step 2: Install rear wheel into receptacle located on the front of the frame whilst pressing the front wheel buttons.
- Page 5 Step 4: Attach the backrest by sliding the backrest hooks down into the receptacles located on the front of the frame. Step 5: Attach the bag to the hook of the seat frame. The shopping bag can be despatched easily when using. (Figure 5) Step 6: Unfold the rollator by pressing down on both sides of the seat frame.
-
Page 6: Operating The Brakes
To stop, gently apply a gripping pressure to both brakes simultaneously (Fig. 8), this will slow down and stop your rollator. The brakes on your Aidapt Rollator have a park option (Fig. 9). To operate the park option, push downwards on both brakes simultaneously. You will feel the brake make a very slight click. -
Page 7: Brake Adjustment
BRAKE ADJUSTMENT Your Aidapt Rollator brake system will require periodic adjustment. Figure 11 To adjust the brakes loosen Nut B and then screw/unscrew Nut A. When adjusted re- tighten Nut B. If further adjustment is required then loosen the Locking Screw and then using a pair of pliers pull the cable down by approximately a millimetre. -
Page 8: Maintenance
CARE AND MAINTENANCE & YOUR OBLIGATION Only use your Aidapt Rollator for the purpose for which it intended, which is as an aid to walking. It is intended your rollator is only used on standard pavements or at home. It should not be used on rough terrain or pot-holed surfaces. - Page 9 The information given in this instruction booklet must not be taken as forming part of or establishing any contractual or other commitment by Aidapt Bathrooms Limited, Aidapt (Wales) Ltd or its agents or its subsidiaries and no warranty or representation concerning the information is given.
