QUICK START USER GUIDE

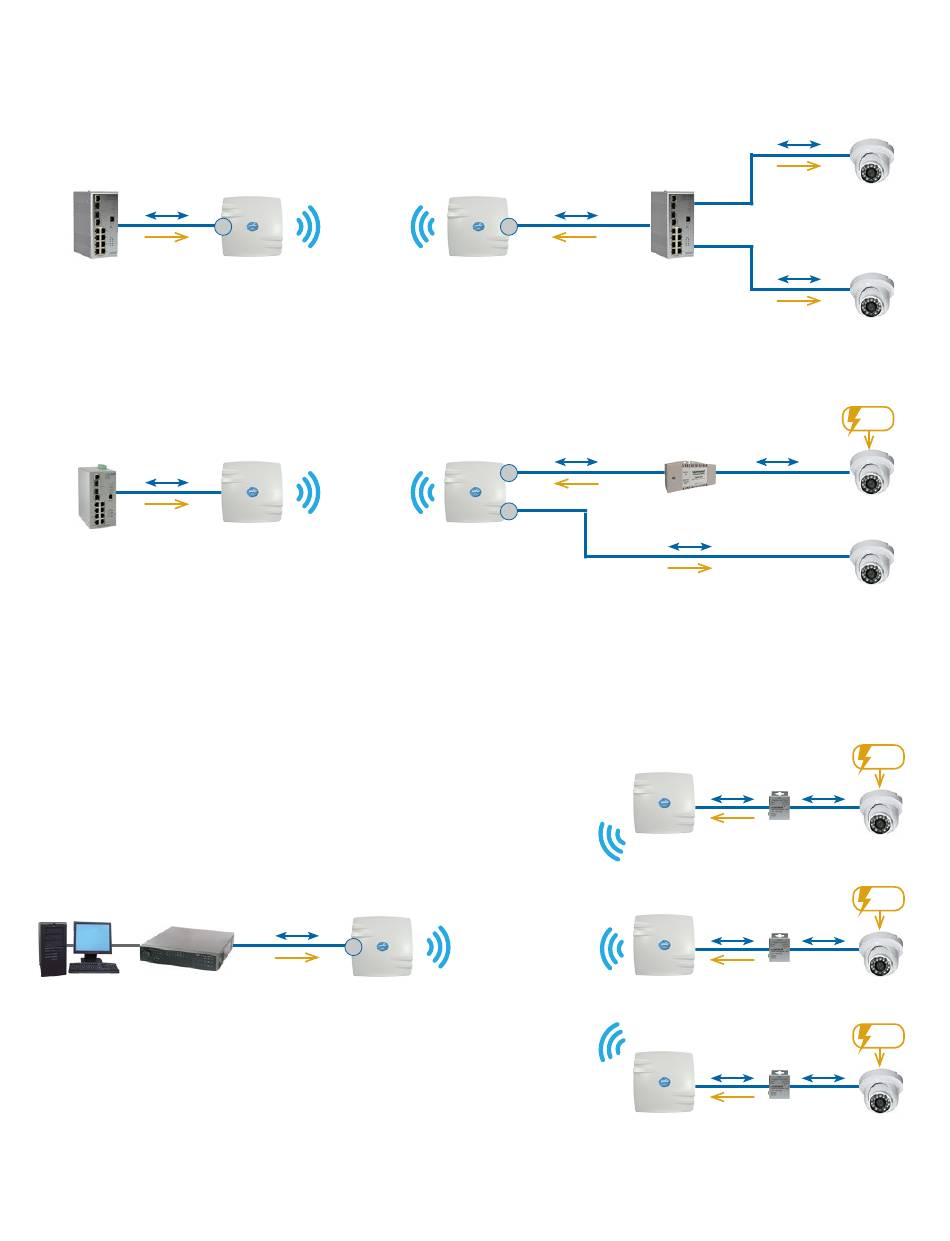

TYPICAL POINT-TO-POINT CONFIGURATIONS
1Gbps
Ethernet
P1
PoE
ComNet Gigabit
Managed Switch
providing 30W PoE
Connected to Network
1Gbps
Ethernet
PoE
ComNet Managed
Switch with 30W PoE
Connected to Network
TYPICAL POINT-TO-MULTIPOINT CONFIGURATION
NOTE: NW10 and NW10E Multipoint nodes will need to have the Wireless Mode set to either AP or Client (default is Client).
And the IP addresses will need to be all set to different addresses (default address is 192.168.10.101). Once this is
done, all the clients will connect to the multipoint AP with all other settingst kept at default.
PC NVR
TECH SUPPORT: 1.888.678.9427
NW10
(Access Point)
NW10
(Access Point)
1Gbps
Ethernet
P1
PoE
NW10/IA870
(240 Mbps
Access Point)
NW10
(Client)
1Gbps
Ethernet
P1
PoE
ComNet Gigabit
Managed Switch
providing 30W PoE
NW10
(Client)
Ethernet
P1
PoE
P2
NW1 (Client)
NW1 (Client)
NW1 (Client)
NW10[E]
Ethernet
PoE
Ethernet
PoE
CNGE1IPS or
any PSE device
Ethernet
Ethernet
PoE
PIM or other
PSE device
Ethernet Ethernet
PoE
PIM or other
PSE device
Ethernet Ethernet
PoE
PIM or other
PSE device
Ethernet Ethernet
PoE
INS_NW10_NW10E_QS_REV– 07/7/15 PAGE 7
PoE Camera
. .
. .
. .
PoE Camera
Power
IP Camera
PoE Camera
Power
IP Camera
Power
IP Camera
Power
IP Camera
