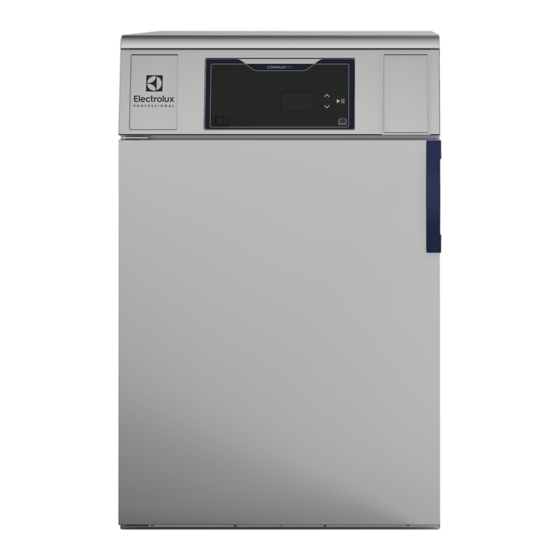

- Page 1 Installation manual Tumble dryer TD6–10 Compass Pro Type N1190.. 438917562/GB, IE Original instructions 2023.02.06...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 Additional safety precautions for gas heated tumble dryer .............7 General safety information......................7 Commercial use only........................7 Copyright ..........................7 Symbols............................7 2 Warranty terms and exclusions......................8 3 Technical data.............................9 Drawing ............................9 Technical data .........................10 Connections ..........................10 Machines with heat pump ......................11 3.4.1 Drawing ......................... - Page 4 Contents The manufacturer reserves the right to make changes to design and component specifications.
-
Page 5: Safety Precautions
Installation manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • The machine is not to be used if industrial chemicals have been used for cleaning. •... - Page 6 Installation manual • Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire.
-
Page 7: Additional Safety Precautions For Gas Heated Tumble Dryer
The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.4 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional company. 1.5 Symbols Caution... -
Page 8: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 9: Technical Data
Installation manual 3 Technical data 3.1 Drawing B(c) B(a) B(b) fig.W00896A Operating panel Door opening, ⌀ 400 mm Electrical connection Gas connection Exhaust connection B(a) B(b) B(c) 1115... -
Page 10: Technical Data
Installation manual 3.2 Technical data Weight, net Drum volume litres Drum diameter Drum depth Drum speed Rated capacity, filling factor 1:18 (Max. load) 10.6 Rated capacity, filling factor 1:22 (Recommended. load) Heating: Electricity Heating: Gas Air consumption, Electric heating, 6 kW Air consumption, Electric heating, 8 kW Air consumption, Gas heating, 6 kW Air consumption, Gas heating, 8 kW... -
Page 11: Machines With Heat Pump
Installation manual 3.4 Machines with heat pump 3.4.1 Drawing fig.8005A Operating panel Door opening, ⌀ 400 mm Electrical connection Drain (condensed water) Drain (cooling water) Water connection 1685 1410 1505... -
Page 12: Technical Data
Installation manual 3.4.2 Technical data Weight, net Drum volume litres Drum diameter Drum depth Drum speed, medium load Rated capacity, filling factor 1:18 (Max. load) 10.6 Rated capacity, filling factor 1:22 (Max. recommended load) Sound power/pressure level at drying* dB(A) 71/56 Average heat emission per drying cycle used to assess ventilation need** * Sound power levels measured according to ISO 60704. -
Page 13: Setup
Installation manual 4 Setup 4.1 Unpacking Cut and remove the two plastic straps between the machine and pallet. There is one strap on each side of the machine. fig.7676 Remove the machine from the pallet. Note! When moving the machine, handle it with care. The drum has no transport clamps. Place the machine on its final position. -
Page 14: Recycling Instruction For Packaging
Installation manual 4.2 Recycling instruction for packaging fig.X02405 Fig. Description Code Type Wrapping film LDPE 4 Plastics Corner protection PS 6 Plastics Cardboard packaging PAP 20 Paper Pallet FOR 50 Wood Cable Tie Nylon Plastic bag PET 1 Plastics... -
Page 15: Siting
Installation manual 4.3 Siting The figure shows recommended distance to walls and/or other machines. fig.X00959 Note! The machine should be positioned so that there will be enough space for working, both for the user and service personnel. Respecting the given recommendations will provide easy access for maintenance and service operations. In case of space limitations, it is possible to install machines without respecting to the given recommendations. -
Page 16: Water Connection (Only For Machines With Heat Pump)
Installation manual 4.5 Water connection (only for machines with heat pump) All water intake connections to the machine should be fitted with manual shut-off valves and filters, to facilitate instal- lation and servicing. Water pipes and hoses should be flushed clean before installation. The machine shall be connected with new water hoses. -
Page 17: Marine Installation
Installation manual 5 Marine installation To ensure steadiness of the machine it is important to fasten the machine to the foundation. Fasten four fittings to the foundation using four x M10 set screws. Note! The four fittings are not supplied with the machine and must be ordered as kit No. 487193544. Fasten the machine to the fittings. -
Page 18: Evacuation System
Installation manual 6 Evacuation system 6.1 Air principle The fan creates low pressure in the machine, drawing air into the drum via the heating unit. The heated air passes through the garments and the drum holes. The air then flows out through a lint filter positioned in the door. After this, the air is evacuated through the fan and ex- haust system. -
Page 19: Exhaust Duct
Installation manual 6.3 Exhaust duct • Only rigid or flexible metal duct should be used for exhausting. • Plastic ducting is not to be used. • Recommended material for exhaust is galvanized steel. • The duct is not to be assembled with screws or other fastening means that extend into the duct and catch lint. •... -
Page 20: Exhaust Dimensioning
Installation manual 6.5 Exhaust dimensioning It is important that the machine has correct air volume compared to each machines power. If the air flow is smaller or larger this will result in a longer drying period. If the outlet pipe is long or the ventilation is not properly designed we recommend to clean the outlet pipes periodi- cally. -
Page 21: Gas Connection
Installation manual 7 Gas connection 7.1 Fasten the label Before installing the machine fasten the label “Read the user instructions” on the inside of the door in a suitable place and at the front panel. The label must have the correct country code, choose the correct label from the gas kit. Read the technical instructions before installing the appli-... -
Page 22: Gas Installation
Installation manual 7.3 Gas installation This gas appliance is build to run on natural gas (group I2H and I2E), commonly identified by GNH. This default gas appliance is built to be installed at not over than 610 m (2001 ft) high altitude otherwise a kit for high altitude must be installed to the machine. - Page 23 Installation manual Natural gas Gas category Inlet pressure Nozzle pres- Nozzle size (⌀ Air reducing/ Label number May be avail- (mbar) sure (mbar) restriction plate able in follow- (mm) ing countries 2H, 2E 2.35 Default AT, BG, CZ, DK, EE, FI, GR, HR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI,...
-
Page 24: Test Run
Installation manual Town gas Gas category Inlet pressure Nozzle pres- Nozzle size (⌀ Air reducing/ Label number May be avail- (mbar) sure (mbar) restriction plate able in follow- (mm) ing countries 4.45 487042240 Default DK, IT 4.45 487042240 490376103 7.5 Test run •... - Page 25 Installation manual • If converting to LPG, also mount the air reducing plate (A). fig.7535A • Loosen the measuring branch screw (2) 1/4 turn; connect a manometer to the measuring branch. • Connect the power to the machine and select a program with heat. •...
-
Page 26: Data Label
INJECTOR:Ø 2.65 NATURAL GAS : G20 (INLET PRESS.: 20-25 MBAR, CAL. VAL. 37780 KJ/M3) For safety reasons use only genuine spare parts. Made in Sweden Electrolux Professional AB 341 80 Ljungby, Sweden WXXXXX 9868XXXXXX Product no.: 09XXX / 99XXXXX Serial no.:... -
Page 27: Electrical Connection
Installation manual 8 Electrical connection 8.1 Electrical installation The electrical installation may only be carried out by qualified personnel. Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break- er. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers are not necessary but is recommended. - Page 28 Installation manual Machines with heat pump Demount the cover panel from the supply unit. Connect the earth and other wires as shown. 1NAC 220–240 Green/Yellow The machine is delivered ac- Blue cording to this figure. Black Brown 2NAC 380–415 Green/Yellow The machine can also be con- Blue nected according to this figure.
-
Page 29: Three-Phase Connection
Installation manual 8.3 Three-phase connection Demount the cover panel from the supply unit. Connect the earth and other wires as shown. 3NAC 3NAC When the installation is completed remount the cover panel and check: • That the drum is empty. •... - Page 30 Installation manual Machines with heat pump Demount the cover panel from the supply unit. Connect the earth and other wires as shown. 3NAC 3NAC When the installation is completed remount the cover panel and check: • That the drum is empty. •...
-
Page 31: Electrical Connections
Installation manual 8.4 Electrical connections Electrical connections Heating alternative Main voltage Heating power Total power Recommended fuse Electric heated 220–240V 1/1N~ 50/60 6.0/8.0 6.4/8.4 32/50 220–240V 3~ 50/60 6.0/8.0 6.4/8.4 20/25 380-415V 3N/3~ 50/60 6.0/8.0 6.4/8.4 10/16 440V 3~ 6.0/8.0 6.4/8.4 10/16 480V 3~... -
Page 32: Functions For I/O-Cards
Installation manual 8.5 Functions for I/O-cards The electrical schematic can be one of the following: 8.5.1 Central payment (2J) To start the machine from a central payment system, the payment system must transmit a start pulse 300–3000 ms (500 ms is recommended) with a minimum pause of 300 ms (500 ms is recommended) between two pulses. The start pulse can be either 230V or 24V. -
Page 33: Central Payment (2J)
Installation manual 8.5.2 Central payment (2J) The central payment or booking system shall transmit an active (high) signal to the machine once permission has been granted to start the machine. The signal must remain active (high) during drying. When the signal gets inactive (low) the machine will abort ongoing program and enter cooling. -
Page 34: External Coin Meter/Central Payment (2K)
Installation manual 8.5.3 External coin meter/Central payment (2K) The signal received from external coin meters must be a pulse between 300–3000 ms (500 ms is recommended) with a minimum pause of 300 ms (500 ms is recommended) between two pulses. fig.7438... -
Page 35: Price Reduction (2K)
Installation manual 8.5.4 Price reduction (2K) By maintaining an activated (high) signal on connection 5 ("Price red"), the price of the program can be reduced. This function has a number of uses, including providing reductions during a specific period of the day. Whilst the signal re- mains active (high), the price of the program is reduced (or the time is increased on time programs), by the percent- age entered in the price programming menu. -
Page 36: Reversing The Door
Installation manual 9 Reversing the door Disconnect the power to the machine. Demount the hinge (A) and refit the screws into the same holes in order to secure the panel on the back. Mount the hinge (A) at the bottom of the opposite side. Demount the door by carefully lifting it of the front. - Page 37 Installation manual Demount the door handle and remount the screws. Mount the door handle on the opposite side using the existing scews. Mount the door by lifting it back on the fitting on the opposite side. Mount the hinge (B) at the top. fig.7658 Demount the magnetic door lock (E) and magnet for switch (F) and mount on the opposite side.
-
Page 38: At First Power Up
Installation manual 10 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. Follow the instructions on the display. •... -
Page 39: Function Check
Installation manual 11 Function check May only be carried out by qualified personnel. A function check must be made when the installation is finished and before the machine can be ready to be used. Whenever a repair has been made, a function check must be performed before the machine can be used again. Check the automatic stop of the machine •... -
Page 40: Disposal Information
Installation manual 12 Disposal information 12.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 44 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
