OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
MODELS TD/3 &
TDA/1
Domestic

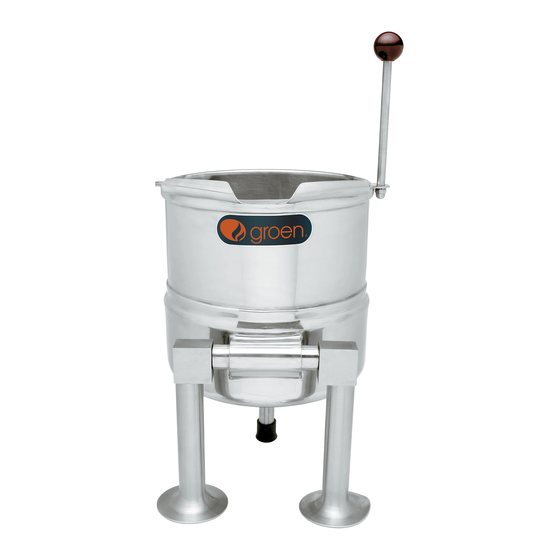

STEAM JACKETED KETTLE
· Stainless Steel
· Table Top Mounted
· Direct Steam Heated
· Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this
equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed dam-
age. Unified Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
PART NUMBER 121006, REV. G (08/17)
888-994-7636, fax 888-864-7636
unifiedbrands.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Groen TDC/3-3
Summary of Contents for Groen TDC/3-3
- Page 1 OPERATOR MANUAL IMPORTANT INFORMATION, KEEP FOR OPERATOR This manual provides information for: MODELS TD/3 & TDA/1 Domestic STEAM JACKETED KETTLE · Stainless Steel · Table Top Mounted · Direct Steam Heated · Tilting THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
-
Page 2: Important Operator Warnings
IMPORTANT - READ FIRST - IMPORTANT CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL. WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS CONTAINED IN THIS MANUAL. - Page 3 IMPORTANT - READ FIRST - IMPORTANT CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN. WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED.
-
Page 4: Table Of Contents
Table of Contents Important Operator Warnings .............page 2-3 References..................page 4 Equipment Description..............page 5 Inspection and Unpacking ............page 6 Installation ..................page 7 Initial Start-Up................page 8 Operation ................... page 9-10 Sequence of Operation ..............page 11 Cleaning..................page 12 Maintenance................. -
Page 5: Equipment Description
Capacity Diameter Depth Width TDC/3 3 Qt (0.75 Gal) 10 inches 4-7/8 inches 15 inches 13-1/4 inches TDC/3-3 2.8 liter 254 mm 124 mm 381 mm 337 mm 6 Qt (1.5 Gal) 12 inches 14 inches 15 inches 15-1/4 inches TDC/3-6 5.7 liter... -
Page 6: Inspection And Unpacking
Inspection & Unpacking CAUTION The kettle will arrive completely assembled and wrapped in protective plastic, AVOID NAILS AND SPLINTERS WHEN strapped and bolted on a skid, enclosed in a cardboard crate. Immediately on receipt REMOVING KETTLES FROM WOODEN remove the box and plastic wrap, and inspect the unit for damage. Report any CRATES. -
Page 7: Installation
Installation WARNING Installation under a ventilation hood is recommended. Consult local codes. THIS UNIT MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK Install and anchor the kettle on a level and rigid surface. Recommended WITH STEAM PLUMBING. IMPROPER mounting surface is 16 gauge (.060” thick) top with a lower reinforcement INSTALLATION CAN CAUSE INJURY TO of C4 structural channel. -
Page 8: Initial Start-Up
Initial Start-Up Now that the kettle has been installed, you should test it to ensure that it is operating IMPORTANT correctly. BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE Remove all literature and packing materials from inside and outside of the unit. OPERATING INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED Pour a small amount of water into the kettle. -
Page 9: Operation
Operation WARNING To heat the kettle, open the steam inlet valve. Adjusting the valve allows you to AVOID EXPOSURE TO ESCAPING STEAM, control the heating rate. Opening the valve more allows steam to flow into the jacket WHICH CAN CAUSE SEVERE BURNS. faster, and heats the product faster. - Page 10 Operation WARNING Basket Insert AVOID ALL DIRECT CONTACT WITH HOT An optional kettle basket insert (10 Quart and larger) can assist in cook- SURFACES. DIRECT SKIN CONTACT COULD ing water boiled products, including eggs, potatoes, vegetables, shell RESULT IN SEVERE BURNS. fish, pasta and rice.
-
Page 11: Sequence Of Operation
Sequence of Operation The following “action-reaction” outline is provided to help the user understand the function of the equipment. When the steam inlet valve is opened, steam flows into the jacket at a pressure determined by the boiler system or by the pressure reducing valve that serves the kettle. -
Page 12: Cleaning
Cleaning WARNING OM-TD Suggested Tools: OM-TD AVOID ANY DIRECT CONTACT WITH HOT A good cleaner SURFACES. DIRECT SKIN CONTACT COULD OM-TD another container, being sure to avoid OM-TD Kettle brushes in good condition RESULT IN SEVERE BURNS. contact with hot product and hot basket A good sanitizer or. -
Page 13: Maintenance
Maintenance CAUTION NOTICE: Contact an authorized representative when USE OF ANY REPLACEMENT PARTS repairs are required. OTHER THAN THOSE SUPPLIED BY THE MANUFACTURER OR AN AUTHORIZED A Maintenance and Service Log is provided at the back of this manual. Each time SUPPLIER WILL VOID ALL WARRANTIES maintenance is performed on your kettle, enter the date on which the work was done, AND COULD INJURE THE OPERATOR OR... -
Page 14: Troubleshooting
Troubleshooting Your kettle will operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. If the actions suggested do not solve the problem, call your qualified Service Representative. If an item on the list is followed by X, the work should be done by a qualified service representative. -
Page 15: Part Lists/Diagram
Parts List Parts List 3 - 24 Quart Models Model TDC/3 Description Part No. PEDESTAL ASSEMBLY 081572 PEDESTAL CAP 081574 NUT, HEX JAM 1-3/4” OD 081707 PACKING RING SET 002033 WASHER PACKING 002019 SPRING 002025 WASHER 5/8” NEOPRENE 003242 TIP, CRUTCH 1” ID 002032 HANDLE ASSEMBLY 012694... - Page 16 Parts List 40/48 Quart Models TDA/1-40, 48 KETTLE BODY TABLE KETTLE BODY PT# QUART CAPACITY 304SS 316SS TDA/1-40 MS1040 MS95365 TDA/1-48 159818 159277 Description Part No. KNOB 012691 12-1/2” RING 012692 SHAFT HANDLE 018963 LOCK WASHER 005618 ACORN NUT 003188 ELBOW TDA 001038 O-RING...
- Page 17 Trunnion Packings for 3-24 Quart Models OM-TD OM-TD NOTE: THESE 5 RINGS COMPRISE ONE SET OF PACKING & MUST BE ASSEMBLED IN Diagram THE MANNER SHOWN. PART NO 002033 Trunnion Packings MODEL TDC/3 FEMALE PACKING RING ADAPTER MALE PACKING RING ADAPTER PEDESTAL CAP 081754 Pedestal Cap 081754 SPRING PART NO.
-
Page 18: Service Log
Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Maintenance Performed Performed By OM-TD...
