Assembly of fl ue pipe with rear outlet
The product is assembled with the smoke outlet fi tted for a
top outlet as standard. If you want a rear outlet, proceed as
follows:
• Position the product correctly (see fi g. 1).

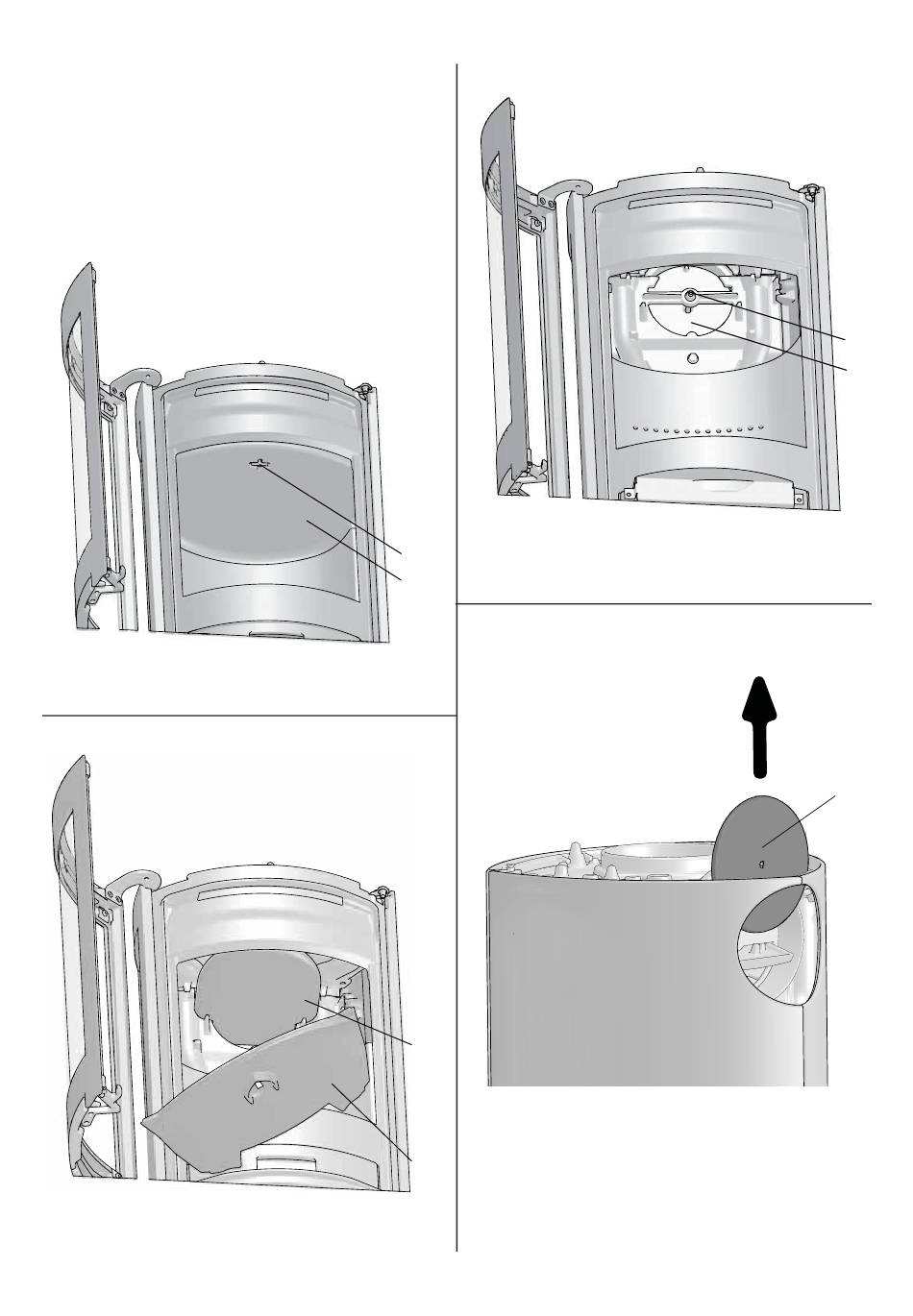

The fi rst step when changing a top outlet to a rear outlet is
to remove the baffl e and exhaust defl ectors inside the burn
chamber.
Fig. 23
1. Lift the baffl e and turn the key (B) 90° in the baffl e (A) and
then remove the key.
2. Lift the rear edge of the baffl e (A) and tilt it out
Fig. 24
3. Lift the rear edge of the lower exhaust defl ector (C) and
tilt it out.
4. Then remove the upper exhaust defl ector (D).
Fig. 25
5. Unscrew the screw (E) that is holding the cover (F) in place.
B
A
Fig. 26
D
6. Pull the cover (F) up.
C
ENGLISH
E
F
F
