4.5 Assembly with an external air
supply (optional extra)

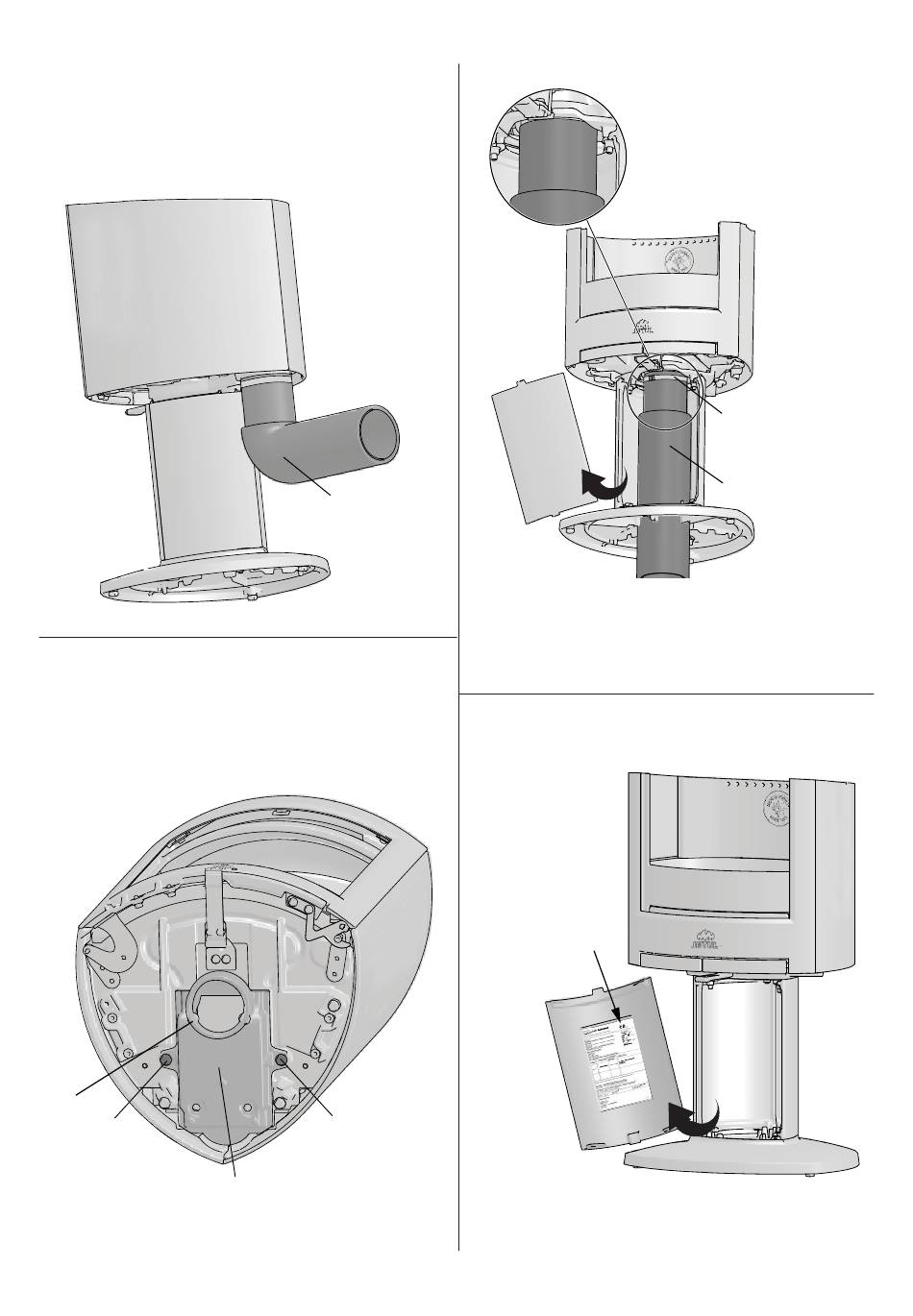

Jøtul F 363 - rear outlet
Fig. 17
Jøtul F 363 - outside air connection
through the fl oor
If the Jøtul F 363 Advance is to be installed with an external air
supply through the fl oor, the outside air inlet (A) must fi rst be
rotated.
Fig. 18
B
C
1. Unscrew the screws (C). Rotate the outside air cover so
that the opening is positioned in the middle.
External
air supply
C
A
Fig. 19
2. The external air kit is attached to the external air inlet on
the underside of the burn chamber. NB: If a rotating set
is to be installed, this must be fi tted before the stove
is raised into the upright position. See the assembly
instructions included in the rotation set.
4.6 Location of approval label
Fig. 20
Approval label
1. Remove the front cover from the pedestal.
2. Attach the approval label (A), which is inside the ash pan,
to the inside of the front cover. (This label is important for
the approval of the product).
ENGLISH
If installing a
rotation set (optional extra)
do not use the hose clip
Hose clip
External air supply
