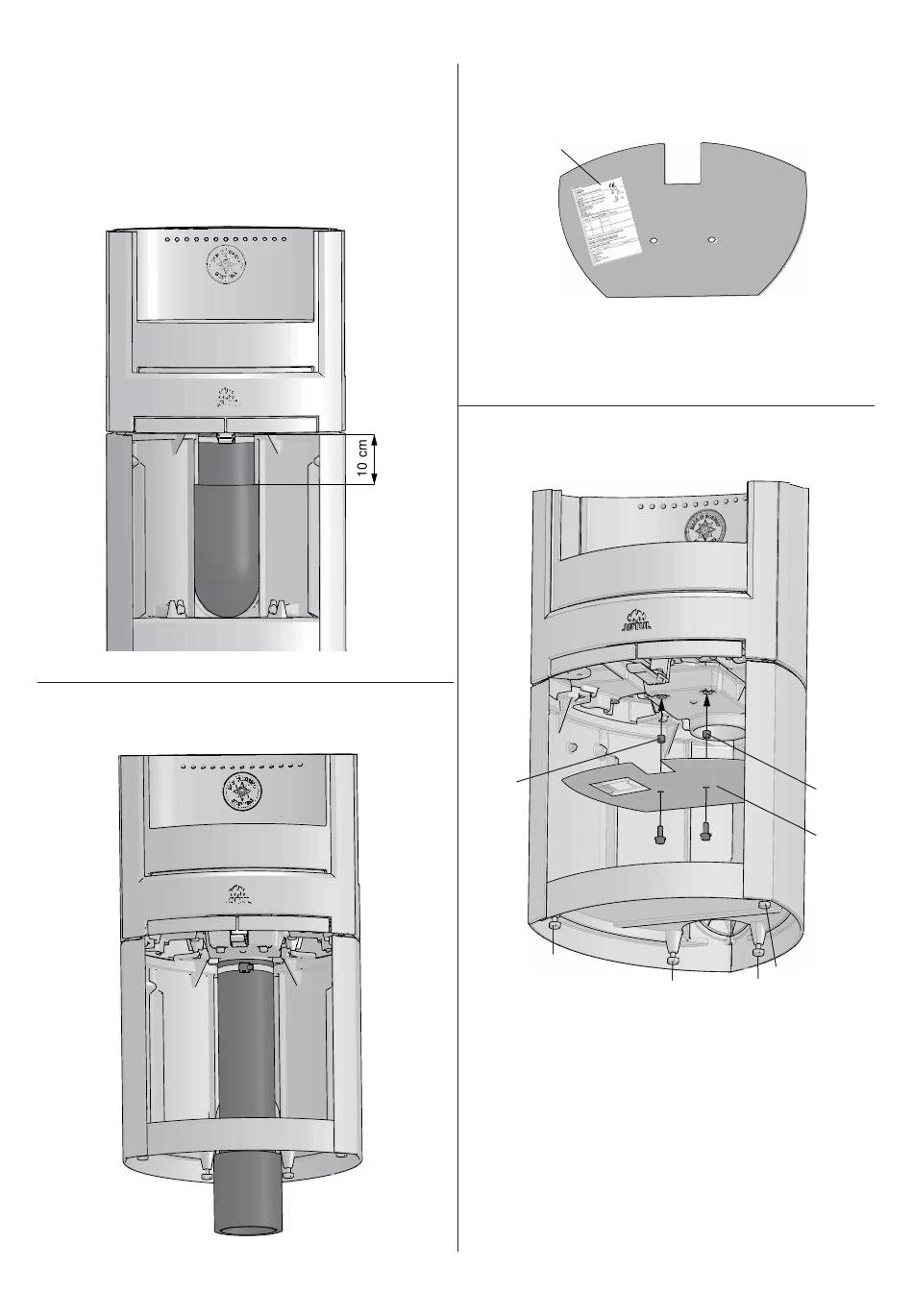

4.3 Assembly with an external air
supply (optional extra)
Jøtul F 361 - rear outlet
If an external air supply is to be installed, see the assembly
instructions provided for the external air kit.
Fig. 9
Jøtul F 361 - outside air connection through the fl oor
Fig. 10
4.4 Location of approval label
Fig. 11
A
5. Attach the approval label, which is inside the ash pan, to
the underside of the burn chamber's heat shield. (This
label is important for the approval of the product).
Fig. 12
C
D
1. Put the rear plate into place (A) in the base.
2. Secure the heat shield provided (A) to the burn chamber
using the screws (B) and sleeves (C) from the bag of screws.
3. Level the product using the 4 adjustment screws (D).
NB: If using a glass fl oor plate (optional extra), the
base must be raised approximately 8 mm from the
fl oor so that the fl oor plate can be pushed under the
front edge of the base.
4. If an external air supply is to be used, pull the fl ex hose
through the hole in the bottom plate and attach it to the
smoke outlet using a hose clip. Make sure the hose is long
enough so that joints are not necessary.
ENGLISH
C
A
B
B
D
D
D
11
