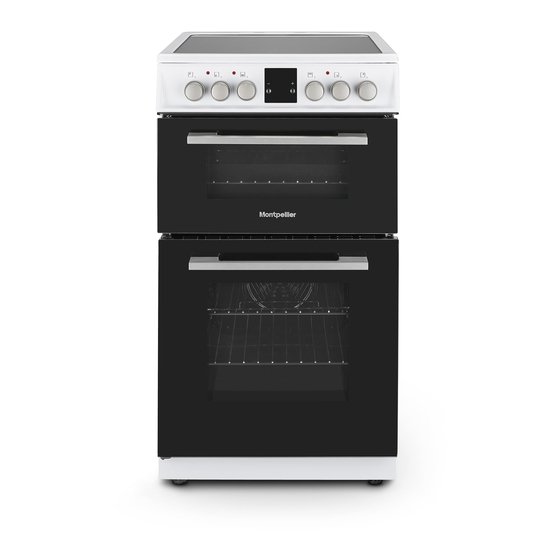

50cm Ceramic Freestanding Double Oven.
MDOC50FW/K/S - White/Black/Silver
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDOC50FW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for montpellier MDOC50FW

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 50cm Ceramic Freestanding Double Oven. MDOC50FW/K/S - White/Black/Silver Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................7 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................9 2.INSTALLATION AND PREPARATION FOR USE ............11 2.1 Instructions for the Installer ..................11 2.2 Electrical Connection and Safety..................12 2.3 Anti-tilting kit .........................13 2.4 Adjusting the feet ......................13 3.PRODUCT FEATURES ....................14...
  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within.
  • Page 5 CAUTION: “In case of hotplate glass breakage”: - immediately shut off all burners and any electrical heating element and isolate the appliance from the power supply - do not touch the appliance surface - do not use the appliance • Do not operate the appliance with an external timer or separate remote-control system.
  • Page 6 • Your appliance is produced in accordance with all applicable local and international standards and regulations. • Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous.
  • Page 7: Installation Warnings

    1.2 inStallation WarninGs • Do not operate the appliance before it is fully installed. • The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people.
  • Page 8 • Under no circumstances should the oven be lined with aluminium foil as overheating may occur. • Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product. Do not leave the cooker unattended when cooking with solid or liquid oils.
  • Page 9: During Cleaning And Maintenance

    1.4 DurinG CleaninG anD MaintenanCe • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents when needed.
  • Page 10 Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 11: Installation And Preparation For Use

    2. INSTALLATION AND PREPARATION FOR USE • The appliance can be placed close to other furniture on condition that, in the WARNING : This appliance must be area where the appliance is set up, the installed by an authorised service furniture’s height does not exceed the person or qualified technician, height of the cooktop.
  • Page 12: Electrical Connection And Safety

    2.2 eleCtriCal ConneCtion anD Safety • If the appliance is not connected to the mains with a plug, a all-pole WARNING: The electrical connection disconnector (with at least 3 mm contact of this appliance should be carried out spacing) must be used in order to meet by an authorised service person or the safety regulations.
  • Page 13: Anti-Tilting Kit

    Product Dimensions A (mm) B (mm) (Width X Depth X Height) (Cm) 60x60x90 (Double Oven) 297.5 50x60x90 (Double Oven) 247.5 90x60x85 60x60x90 309.5 60x60x85 309.5 50x60x90 247.5 50x60x85 247.5 50x50x90 247.5 2.3 anti-tiltinG kit 50x50x85 247.5 2.4 aDjuStinG the feet Your product stands on four adjustable Screw (x1) feet.
  • Page 14: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Cooktop 2. Control Panel 3. Top Oven Door Handle 4. Top Oven Door 5.
  • Page 15: Use Of Product

    4. USE OF PRODUCT Hints and Tips Important: When ceramic heaters are 4.1 hob ControlS operated in higher heat settings, the heated areas may be seen switching Ceramic Heater on and off. This is due to a safety device The ceramic heater is controlled by a 6 which prevents the glass from overheating.
  • Page 16: Oven Functions

    4.2 OVEN FUNCTIONS Upper Heating Main Oven. Function: Switch on the UPPER function Defrost Function: using the top oven Switch on the function control knob. DEFROST function The oven thermostat using the main oven function control knob. and warning lights will illuminate, and the The oven’s warning upper heating element will switch on.
  • Page 17: Use Of The Digital Minute Minder

    4.3 uSe of the DiGital Sound Adjustment Minute MinDer. To adjust the volume of the audible warning sound, while the current time of day is displayed, press and hold the “-” button for Time Adjustment 1-2 seconds until an audible signal sounds. After this, each time the “-”...
  • Page 18: Cleaning And Maintenance

    5. CLEANING AND Catalytic Cleaning MAINTENANCE Catalytic liners are installed within the oven cavity. These are the matte-finished, light- coloured panels on the sides and/or the 5.1 CleaninG matte-finished panel at the rear of the oven. They work by collecting any grease and oil residue during cooking.
  • Page 19 Cleaning the Enamelled Parts Cleaning the Ceramic Glass Ceramic glass can hold heavy utensils but • Clean the enamelled parts of your may be broken if it is hit with a sharp object. appliance on a regular basis. WARNING : Ceramic Cooktops - if the surface is cracked, to avoid the •...
  • Page 20 Removal of the Oven Door Removal of the Inner Glass Before cleaning the oven door glass, You must remove the oven door glass you must remove the oven door, as before cleaning, as shown below. shown 1. Push the glass in the direction of B and below.
  • Page 21: Maintenance

    5.2 MaintenanCe Removal of the Wire Racks To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up and out of the WARNING: The maintenance of this locating holes.
  • Page 22: Troubleshooting&Transport

    6. TROUBLESHOOTING&TRANSPORT 6.1 troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. The hob or cooking zones There is no power supply.
  • Page 23: Technical Specifications

    7. TECHNICAL SPECIFICATIONS 7.1 enerGy fiChe Brand Model MDOC50FK MDOC50FS MDOC50FW Type of Oven ELECTRIC Mass 45,4 Energy Efficiency Index - conventional 106,7 Energy Efficiency Index - fan forced Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,73 Energy consumption (electricity) - fan forced...
  • Page 24 Brand Model MDOC50FK MDOC50FS MDOC50FW Type of Hob Electric Number of Cooking Zones Heating Technology-1 Radiant Size-1 Ø14,5 Energy Consumption-1 Wh/kg 192,0 Heating Technology-2 Radiant Size-2 Ø14,5 Energy Consumption-2 Wh/kg 192,0 Heating Technology-3 Radiant Size-3 Ø18,0 Energy Consumption-3 Wh/kg 192,0...
  • Page 25 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 26 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This manual is also suitable for:

Mdoc50fkMdoc50fs
