montpellier
Installation and Operating Instructions
MODEL: MON-SFOP67MFGG

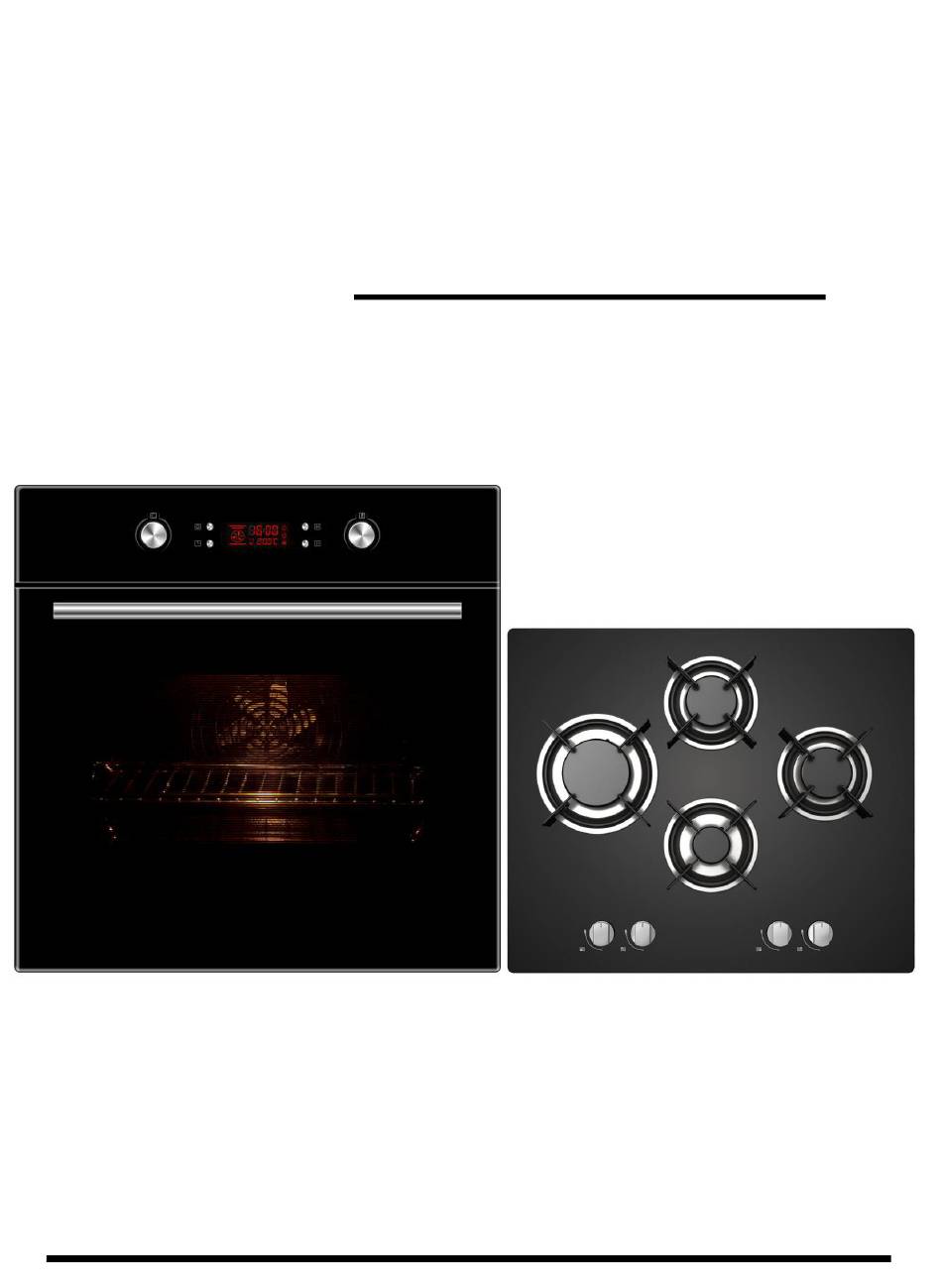

Gas on Glass Oven & Hob Pack
(Pictures indicative of model supplied)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
.
this manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for montpellier MON-SFOP67MFGG
Summary of Contents for montpellier MON-SFOP67MFGG
- Page 1 Installation and Operating Instructions MODEL: MON-SFOP67MFGG Gas on Glass Oven & Hob Pack (Pictures indicative of model supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this Montpellier branded appliance . It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.

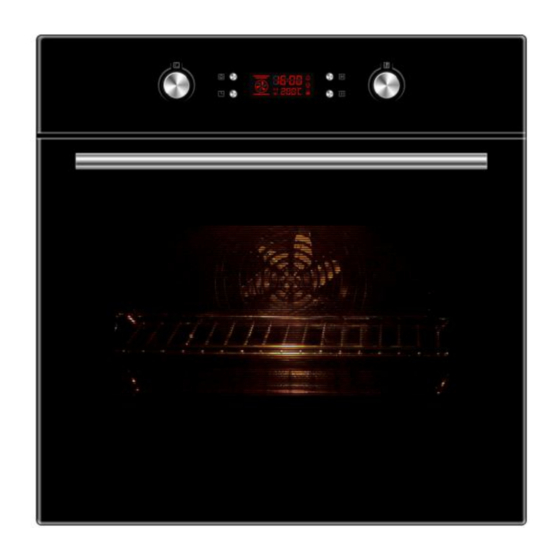

- Page 4 Description Of The Appliances 1. Oven Function Control 2. Oven Thermostat Control 3. LED Timer 4. Door Handle 5. Glass Oven Door (Picture indicative of model supplied)
- Page 5 1. Ceramic Glass 2. 1Kw Burner 3. 1.5Kw Burner (x 2) 4. 3.0Kw Burner 5. Burner Control Knob (x 4) (Picture indicative of model supplied)
- Page 6 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 7 Section 1. Installation These appliances must be installed by a Qualified Electrician & Gas Safe Engineer! Remove all packaging, protective film and securing tape from the appliances. Position the appliances in a dry atmosphere. The following dimensions are provided as a guide for installation –...
- Page 8 1.1.2. Hob: The Hob ‘Cut-out’ dimensions are 553mm (W) by 473mm (D) The worktop should have a minimum thickness of 30mm. You must ensure a minimum clearance of 700mm between the surface of the Hob and a cupboard or cooker hood above. ...
- Page 9 1.2. Electrical Connection - Oven This appliance must be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing, by a Qualified Electrician. Please note that a switchable spur should be accessible above the work surface in order that the power can be turned off by the consumer.
- Page 10 1.4. Secure the Oven & Hob in Position Finally, use the screws to secure the oven to the kitchen cabinetry and the clips/screws to secure the hob to the work surface (as shown below). Use the screws supplied to secure the oven to the cabinet.
- Page 11 Section 2. Safety Advice These appliances must be installed by a Qualified Electrician and Gas Safe Engineer. Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. These appliances are guaranteed for Domestic Use Only. The appliances are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been...
- Page 12 Section 3. Operating the Appliance 3.1. Oven Control Panel 1. Function Control Knob (9 Functions) 2. LED Timer Display Panel 3. Oven Thermostat Control Knob (0 to 250 Degrees C) 4. Clock Setting Button 5. Start Button 6. Stop Button 7.
- Page 13 The correct time should now be displayed and set. 3.2.2. Cooking Functions Turn the Function Control Knob (1) to the required Oven function as shown in the table below. 3.2.3. Oven Temperature Turn the Oven Thermostat Control Knob (3) to the required oven temperature.
- Page 14 3.2.4. Using The LED Timer Full Timer operation as follows (N.B. K1 is Function Control Knob and K2 is Oven Thermostat Control Knob):...
- Page 16 3.3. Operating the Hob Press and turn the required burner Control Knob anti- clockwise to the maximum position, ensuring that you maintain pressure on the control knob until the burner has lit and the flame is stable. If the burner fails to ignite correctly, turn the Control Knob back to the ‘Off’...
- Page 17 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Oven Clean spillages from inside the oven as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 18 4.3. Changing the Oven Bulb Proceed as follows when the glass is cold: Unscrew the glass cover Remove the bulb Fit new like for like bulb (*) Replace glass cover (*) Must be a 300° like for like replacement oven bulb available from specialist hardware &...
- Page 19 If you need to clean in between the glass door panels, remove the 2 screws and the end panel (as shown left) and then carefully slide the glass out of the door frame. Clean the glass panels and carefully slide the glass back into the door frame.
- Page 20 YOUR GUARANTEE IS VALID ONLY IN THE UK. To Register your Appliance simply complete the card in your appliance pack and return it with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com SERVICE HELP-LINE Should your appliance develop a fault, please call the Repairtech Service Helpline on: 01527-888133 Please remember to have all your product details available, including the...
- Page 21 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
