montpellier
Installation and Operating Instructions
MODEL: MON-SFOP60MC
Ceramic Hob & Oven Pack
(Pictures indicative of model supplied)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
.
this manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for montpellier MON-SFOP60MC
Summary of Contents for montpellier MON-SFOP60MC

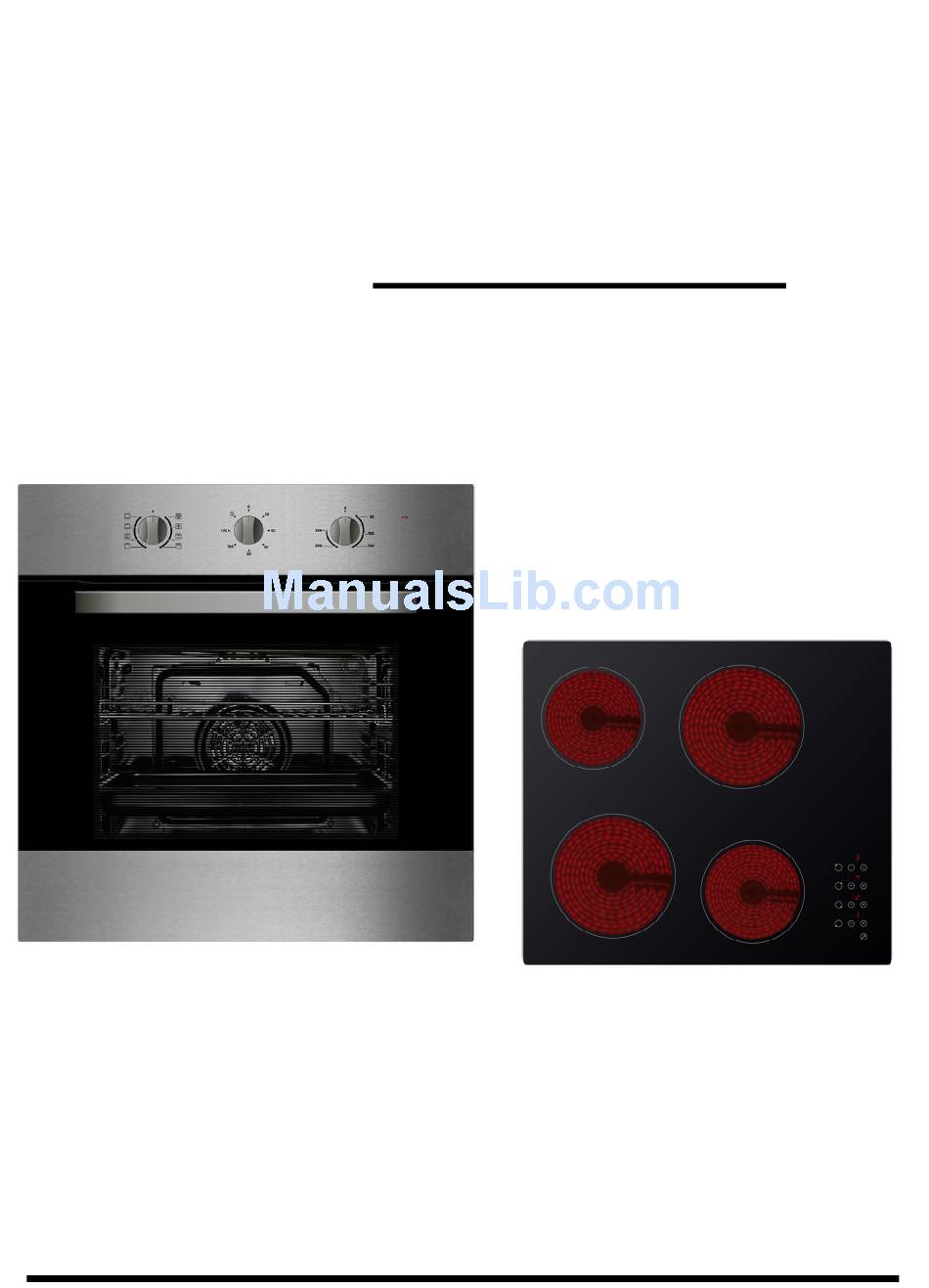

- Page 1 Installation and Operating Instructions MODEL: MON-SFOP60MC Ceramic Hob & Oven Pack (Pictures indicative of model supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this Montpellier branded appliance . It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.

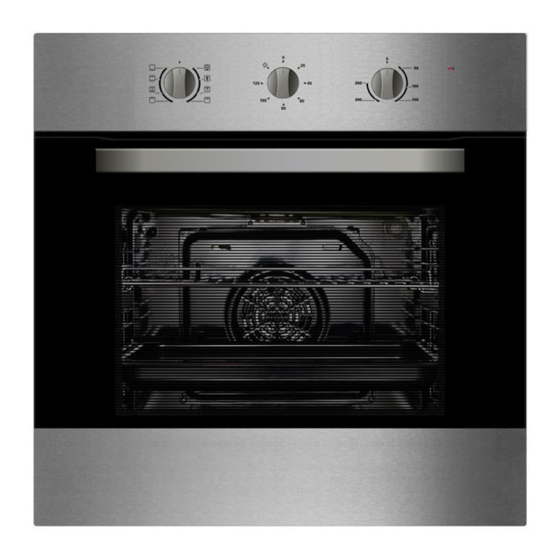

- Page 4 Description Of The Appliances 1. Oven Function Control 2. Oven Thermostat Control 3. 120 Minute Timer 4. Door Handle 5. Glass Oven Door (Picture indicative of model supplied)
- Page 5 1. Ceramic Glass 2. 1200w Heat Zone (x 2) 3. 1800w Heat Zone (x 2) 4. ‘Touch’ Control Panel (Picture indicative of model supplied)
- Page 6 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 7 Section 1. Installation This appliance must be installed by a Qualified Electrician! Remove all packaging, protective film and securing tape from the appliances. Position the appliances in a dry atmosphere. The following dimensions are provided as a guide for installation –...
- Page 8 1.1.2. Hob:...
- Page 9 1.2. Electrical Connection These appliances must both be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing, by a Qualified Electrician. Please note that a switchable spur should be accessible above the work surface in order that the power can be turned off by the consumer.
- Page 10 1.3. Secure the Oven & Hob in Position Finally, use the screws to secure the oven to the kitchen cabinetry and the clips/screws to secure the hob to the work surface (as shown below).
- Page 11 Section 2. Safety Advice These appliances must both be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing, by a Qualified Electrician. Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage.
- Page 12 Following installation make sure that the power cable is not trapped underneath the appliance. Keep the appliance surfaces clean. Failure to do this could lead to the appliance malfunctioning. The surface of this appliances will get extremely hot during use. Take care when using the appliances and keep children well away.The interior and surface of this appliance will remain hot after it has been turned off.
- Page 13 Section 3. Operating the Appliance 3.1. Oven Control Panel 1. Function Control Knob (8 Functions) 2. Timer Control Knob (Maximum 120 Minutes) 3. Temperature Control Knob (0 to 250 Degrees C) 4. Temperature Indicator Light 3.2. Cooking & Functions To use the Oven you must set the Timer, select the Function and set the required Temperature as follows: It is important that you use only ‘oven proof’...
- Page 14 3.2.1. Setting The Timer You must set the Timer in order to use the oven: Either set the Timer Control Knob to the position for ‘continuous’ use, or Select a time between the ‘0’ and ‘120’ minutes setting. (When the set time has elapsed you will hear an audible signal and the oven will cut off).
- Page 15 3.2.3. Oven Temperature Turn the Oven Thermostat Control Knob to the required oven temperature. A red indicator light will show whilst the oven is reaching temperature. When the set temperature has been achieved, the light will go out. When you have finished using the oven, you must turn the thermostat and function control knobs back to the off position.
- Page 16 3.4. Operating the Hob It is important that you use only metal pans specifically designed and/or approved for use with Halogen Hobs. Never allow melamine or plastic containers to come in contact with the heat zones. Touch the required Heat Zone On/Off button until all indicators light up.
- Page 17 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Oven Clean spillages from inside the oven as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 18 4.3. Changing the Oven Bulb Proceed as follows when the glass is cold: Unscrew the glass cover Remove the bulb Fit new like for like bulb (*) Replace glass cover (*) Must be a 300° like for like replacement oven bulb available from specialist hardware &...
- Page 19 4.5. What to do if something goes wrong There is no power to the appliance: Check there is not a power cut Check there is power to the electric socket/appliance. The oven operates but the oven light is not working: Replace the oven bulb as described in section 4.3.
- Page 20 YOUR GUARANTEE IS VALID ONLY IN THE UK. To Register your Appliance simply complete the card in your appliance pack and return it with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com SERVICE HELP-LINE Should your appliance develop a fault, please call the Repairtech Service Helpline on: 01527-888133 Please remember to have all your product details available, including the...
- Page 21 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
