montpellier
Installation and Operating Instructions
MODEL: MON-SFOP59MFGG
Built-In Single Electric Oven
& Gas Hob Pack
(Picture indicative of model supplied)
Please read these instructions carefully before attempting to install or use this appliance. It
is advisable to keep these instructions in a safe place for future reference.
Advertisement
Related Manuals for montpellier MON-SFOP59MFGG
Summary of Contents for montpellier MON-SFOP59MFGG
- Page 1 Installation and Operating Instructions MODEL: MON-SFOP59MFGG Built-In Single Electric Oven & Gas Hob Pack (Picture indicative of model supplied) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction Thank you for choosing this Montpellier branded appliance . It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.

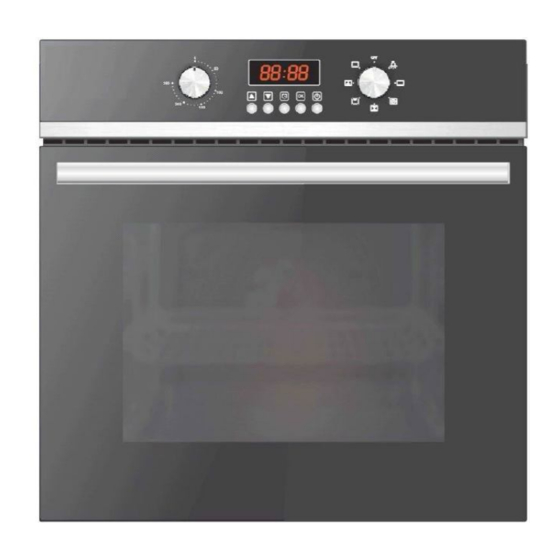

- Page 4 Description Of The Appliances 1. Oven 1. Oven Function Control 2. Oven Thermostat Control 3. LED Display & Timer 4. Door Handle 5. Glass Oven Door (Picture indicative of model supplied)
- Page 5 2. Hotplate 1. Large 3KW Burner 2. Medium 1.75KW Burner 3. Medium 1.75KW Burner 4. Small 1.0KW Burner 5. Burner Control Knobs x 4 (Picture indicative of model supplied)
- Page 6 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 7 Section 1. Installation Remove all packaging, protective film and securing tape from the appliances. Position the appliances in a dry atmosphere. The following dimensions are provided as a guide for installation – your installer will carry out the installation in accordance with the current regulations.
- Page 8 2. Hotplate 1.2. Electrical Connection 1.2.1. Oven This appliance has a total Power Rating of 2500W and can be fitted with a 13 Amp plug and plugged into a standard, switchable 13 Amp socket. Alternatively, the product can be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing.
- Page 9 1.1.2. Hotplate This appliance can be fitted with a 13 Amp plug and plugged into a standard, switchable 13 Amp socket. Alternatively, the product can be ‘hard wired’ into a suitable fused spur adjacent to the appliance housing. In this case the product must be installed by a Qualified Electrician.
- Page 10 1.3. Secure the Oven in Position Finally, use the four screws to secure the oven to the kitchen cabinetry. 1.4. Hotplate Technical Data This hotplate must be installed by a ‘Gas Safe’ approved engineer!!
- Page 11 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. This appliance is guaranteed for Domestic Use Only. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the...
- Page 12 Section 3. Operating the Appliances 3.1. Oven Control Panel 3.2. Cooking & Functions 3.2.1. Setting The Clock/Timer Press the Clock symbol and use the ‘+’ and ‘-‘ buttons to set the current time, then press the ‘Set’ button (far right hand button) to set/lock the time.
- Page 13 3.2.2. Cooking Functions Turn the Oven Function Control (1) clockwise to the required function. An indicator light will show whilst the oven is on: Top Heat Top/Base Base Heat Fan/Top/Base Fan Only Grill (*) Grill with Fan (*) Your oven may have 2 x Grill settings, standard grill as shown and a high power grill with graphics showing two rows of the grill symbol.
- Page 14 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply and ensure that the appliance is completely cool. 4.1. Cleaning the Oven Clean spillages from inside the oven as soon as possible after use. Always ensure that the surface has cooled down before cleaning.
- Page 15 4.3. Removing the Oven Door In order to improve access when cleaning the oven, you can remove the door as follows: Lift the two safety catches up then close the oven door partially. Now lift the door upwards and away from the oven.
- Page 16 4.4. What to do if something goes wrong There is no power to the appliance: Check there is not a power cut Check there is power to the electric socket/appliance Check the fuse in the plug The oven operates but the oven light is not working: Replace the oven bulb as described in section 4.2.
- Page 17 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
