Summary of Contents for Retevis NR30

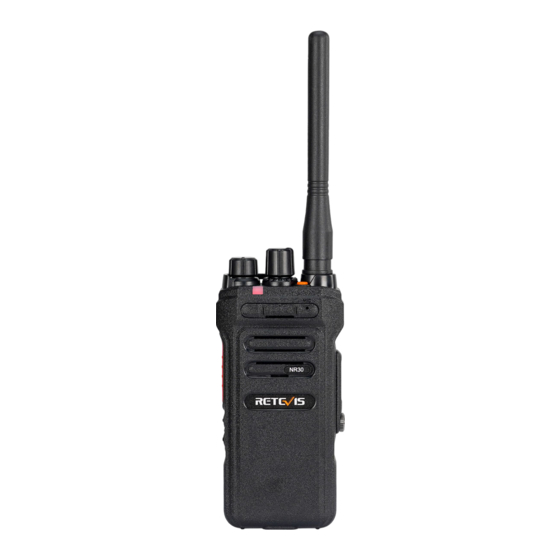

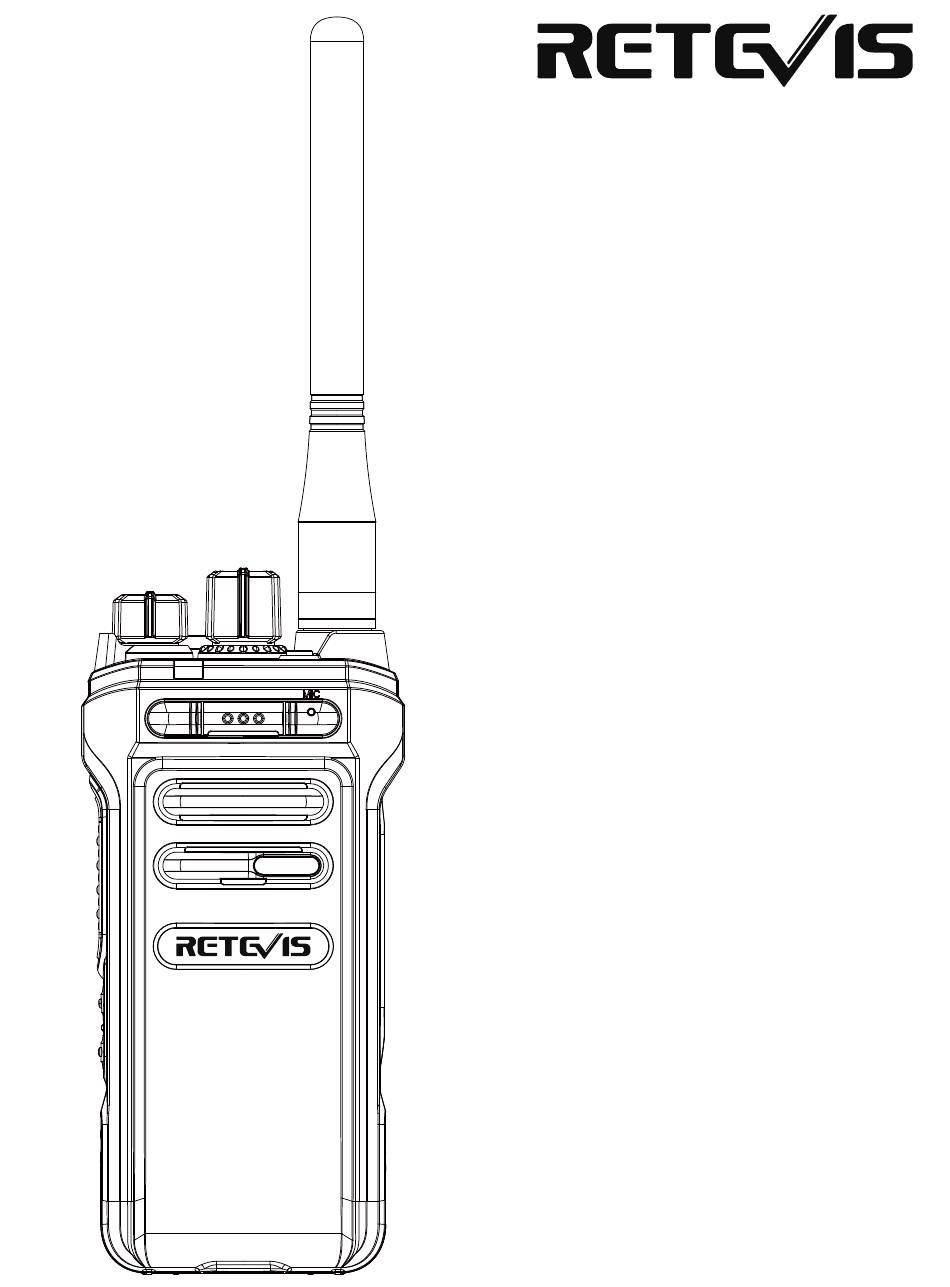

- Page 1 NR30 NR30 USER’S MANUAR...
-
Page 2: Table Of Contents
Radio Function..................Charging Instructions................Function Operations................Specifications..................Factory Setting..................WARNINGS..................... GUARANTEE..................For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it. -
Page 3: Warranty
• In the process of charging, slight heat of the battery pack is normal. • The radio's using should be complied with the local radio laws and regulations. Radio Function Antenna Channel Knob Volume/Power Knob Alarm/Group Call Key Indicator Speaker NR30 Belt Clip PTT Key SP/Headphone/ Programming Jack PF1 Key PF2 Key... -
Page 4: Charging Instructions
List Name Function List Name Function Channel Knob Channel Adjustment Speaker Voice output Power/ Turn on/off the radio / Transmitting Volume Knob Volume adjustment Indicator Indicate working status Programming function Antenna Transmit and receive Programming function wireless signal Alarm/Group Call Alarm/Group call Belt Clip Portable... -
Page 5: Specifications
PF1(Programming) Factory default, shortly press: Monitor Long press: Power switch PF2(Programming) Factory default, shortly press: Scan Long press: Noise reduction Alarm/Group Call Key Shortly press: Alarm Long press: Group call Monitor Function Shortly/Long press the PF1/PF2 key set with monitor function to turn on the function and monitor whether there is audio transmission on the selected channel. -
Page 6: Factory Setting
Factory Setting CH NO. TX-Frequency（MHz） RX-Frequency（MHz） Code(Hz) 462.5625 462.5625 67.0 462.5875 462.5875 118.8 462.6125 462.6125 127.3 462.6375 462.6375 131.8 462.6625 462.6625 136.5 462.6875 462.6875 141.3 462.7125 462.7125 146.2 467.5625 467.5625 D243N 467.5875 467.5875 D032N 467.6125 467.6125 D047N 467.6375 467.6375 D051N 467.6625 467.6625 D053N... - Page 7 Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
- Page 8 RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU declaration of conformity is available at the following internet address: www.retevis.com. •Restriction Information...
- Page 9 To When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
-
Page 10: Warnings
•The adapter shall be installed near the equipment and shall be easily accessible Approved Accessories •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. -
Page 11: Guarantee
Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. 3.The user can get warranty and after-sales service as below: ●Contact the seller where you buy. - Page 12 Shenzhen Retevis Technology Co.,Ltd. Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis...
