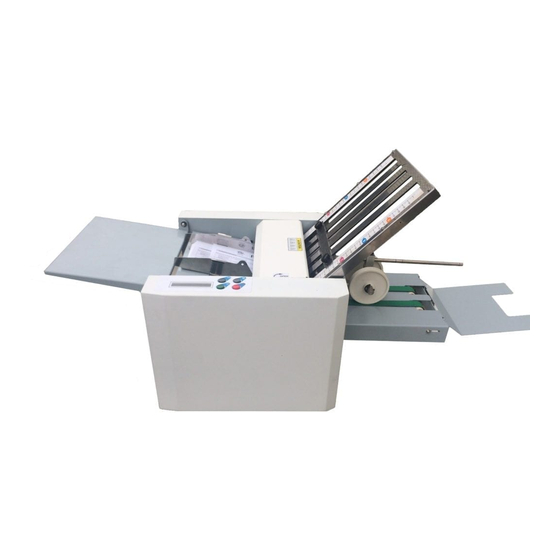

- Page 1 SF-12M Tabletop Paper Folder OPERATOR MANUAL 6/2019 SECOND EDITION...
-
Page 3: Specifications
Control Panel Outfeed Conveyor Front Cover FUNCTION The SF-12M Low-Volume Document Folder is designed to fold various paper sizes. The fold plates are manually adjusted for C, V, Z and double parallel folds. SPECIFICATIONS Hopper Capacity Up to 250 sheets 64g/m2... -
Page 4: Unpacking And Setup
Upper Fold Plate Power Cord 3. Place the SF-12M on a sturdy, level surface. Lower the output conveyor into its fully open position. 4. Open the paper infeed tray 5. Attach power cable to receptacle, and plug into appropriate wall outlet. -
Page 5: Installing Fold Plates
INSTALLING FOLD PLATES Upper Fold Plate Lower Fold Plate Fold stop Half fold diverter Fold stop Fold stop knobs Upper Fold Plate Install the upper fold plate at an angle, as shown. Align the notches on each side of the fold plate with the pins on each side of the machine body. - Page 6 Lower Fold Plate Install the lower fold plate at an angle, as shown. Align the notches on the fold plate with the lower fold plate pins. Push gently on the fold plate to lock it into position. Lower fold plate Lower fold plate notches Lower fold plate pins Lower fold plate seated on pins...
- Page 7 Setting Outfeed Stacker Wheels 1. A zip tie is used to hold the outfeed wheels in place during shipping. Cut and remove the tie before proceeding. Adjust outfeed wheels to match the fold type and paper size. NOTE: This is important for proper outfeeding.
-
Page 8: Control Panel
Press to change batch counting quantity and interval CLEAR/RESET Button Press to clear counter Counter: The SF-12M has a 3 digit resettable counter that will count up as the paper is folded. To reset the counter, press and hold the “C” button for 3 seconds. -
Page 9: Setting Custom Folds
Paper Out: If the control panel reads “NO PAPER”, check the infeed tray and reload paper. The screen will reset when paper is loaded. Setting Custom Folds Example 1: Uneven “C” Measure the length of panel “A” Panel A Adjust the upper fold plate so that the stop plate lines up with the measurements of the panel “A”... -
Page 10: Troubleshooting
Troubleshooting PROBLEM: SOLUTION: Folder will not start Check that power cord is plugged into the folder and an electrical outlet Check that the power switch is ON Paper will not feed Adjust the paper guides so a single sheet of paper slides freely between the guides without excessive play Check to be sure the paper is properly loaded in the infeed tray, with the leading edge under the feed tires.
