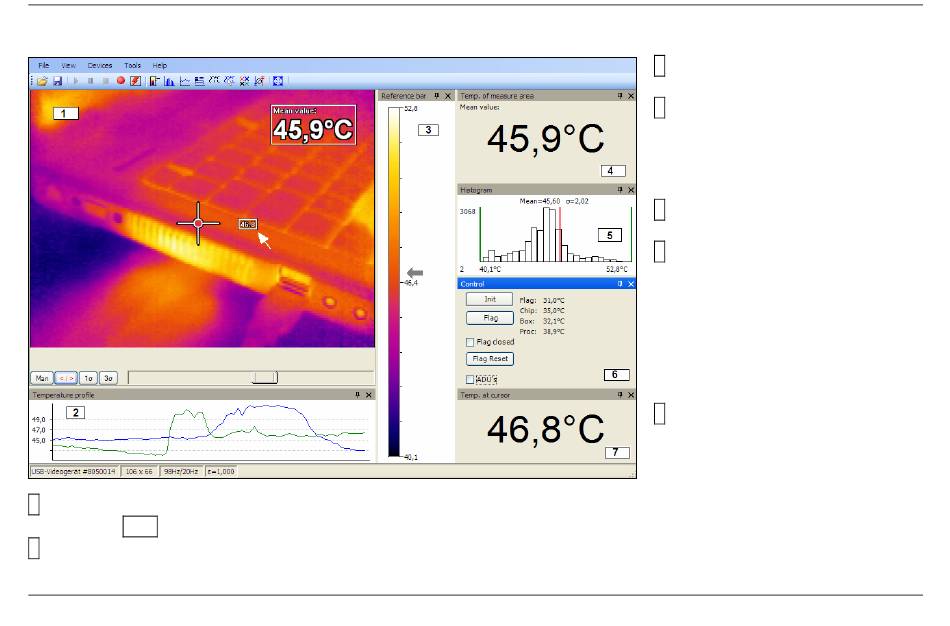

Overview

6 Control: Shows temperatures of different components of the PI; manual activation of the Flag by pressing
the Flag button.
7 Temp. at cursor: The temperature of each pixel can be shown by moving the cursor over the infrared image.
optris PI – E2008-06-A
1 IR-Live picture from the
camera
2 Temperature profile:
Shows the temperatures
along max. 2 lines, which
can have any size and
position inside the picture.
3 Reference bar: Shows the
scaling of the palette.
4 Temperature of measure
area: Shows the
temperature according to
the selected measurement
function (cross hairs/
Rectangle) – this value is
shown also inside the IR
picture (above right).
5 Histogram: Shows the
statistic distribution of
single temperature values.
