Summary of Contents for optris PI

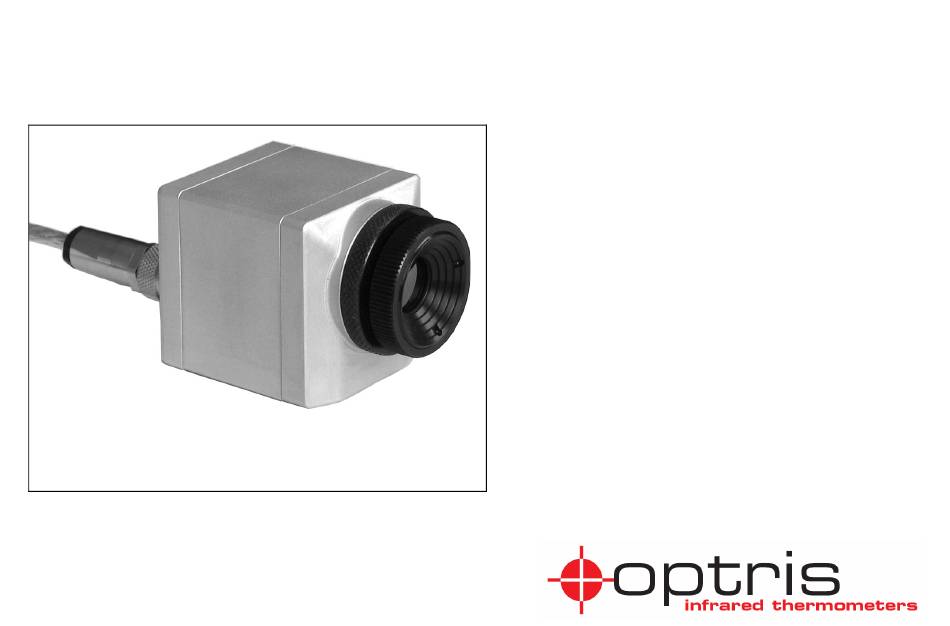

- Page 1 ® ¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯ Thermal Imager Operators manual...
- Page 3 If the failure results from misuse or neglect the user has to pay for the repair. In that case you may ask for a cost estimate beforehand. optris PI – E2008-06-A...
-
Page 4: Table Of Contents
Determination of unknown Emissivities General Specifications Characteristic Emissivities Electrical Specifications Appendix A – Emissivity Table Metals Measurement Specifications Appendix B – Emissivity Table Non Metals Mechanical Installation Electrical Installation Process Interface Start-Up Software PI Connect Installation Overview Menus optris PI – E2008-06-A... -
Page 5: Welcome

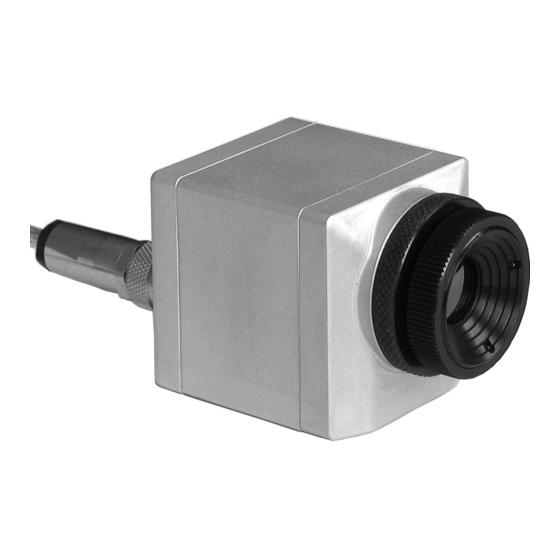

Thank you for choosing the optris PI thermal imager! The optris PI calculates the surface temperature based on the emitted infrared energy of objects [► Basics of Infrared Thermometry]. The two-dimensional detector (FPA - focal plain array) allows a measurement of 160 x 120 pixels and will be shown as thermographic image using standardized palettes. -
Page 6: Maintenance
In case of problems or questions which may arise when you use the infrared camera, please contact our service department. Factory Default Settings The unit has the following presetting at time of delivery: Temperature range -20...100 °C Emissivity 0,970 Process interface (PIF) inactive Interprocess Communication (IPC) inactive Measurement function Cross hairs (3x3 pixels) optris PI – E2008-06-A... -
Page 7: Technical Data
5 VDC (powered via USB 2.0 interface) Current draw max. 500 mA Output Process Interface (PIF out) 0-10 V (TObj, TInt or Flag status) Input Process Interface (PIF in) 0-10 V (Emissivity, Flag control) Digital interface USB 2.0 optris PI – E2008-06-A... -
Page 8: Measurement Specifications
Cross hairs (1x1, 3x3 or 5x5 pixels); free adjustable location Measurement rectangle; Size scalable; free adjustable location Both of these functions can be combined with the signal processing features: Average, MAX, MIN value. Software PIConnect at ambient temperature 23±5 °C; whichever is greater optris PI – E2008-06-A... -
Page 9: Mechanical Installation
Mechanical Installation The PI is equipped with two metric M4 thread holes on the bottom side (6 mm depth) and can be installed either directly via these threads or with help of the tripod mount (also on bottom side). optris PI - drawing... -
Page 10: Electrical Installation
Electrical Installation At the back side of the PI you will find two connector plugs. Please connect the supplied USB cable with the right plug. The left connector plug is only used for the process interface. Backside of camera with connectors... -
Page 11: Process Interface
Process Interface The PI is equipped with a process interface, which can be programmed via the software as Input [PIF in] (to control the camera) or as Output [PIF out] (to control the process). PIF in PIF out Emissivity Object temperature... -
Page 12: Software Pi Connect
Display of the thermal image in real time (100 Hz) with a wide range of measurement functions Recording function (video, radiometric video, snap shot) Analysis and post processing of infrared images/ videos Complete set up of parameters and remote control of the camera optris PI – E2008-06-A... -
Page 13: Overview
Control: Shows temperatures of different components of the PI; manual activation of the Flag by pressing the Flag button. Temp. at cursor: The temperature of each pixel can be shown by moving the cursor over the infrared image. -
Page 14: Menus
Save Captured Video is used for saving of thermographic video files (standard AVI format or radiometric RAVI format). Reopen shows a list of recently opened files. Play, Pause, Stop and Record are controlling the recording and play back of video files. Snapshot is used for saving of single pictures (JPG). optris PI – E2008-06-A... - Page 15 With the function Image information you can decide, which information you would like to see inside the infrared image window. Tools Menu The menu item Options opens a selection screen for extensive settings for the camera parameters as well as for the display of the infrared images. optris PI – E2008-06-A...
-
Page 16: Settings
Settings The menu Tools\ Options\ General opens the following window: Palette: Selection of a color palette for the display of the infrared image Directory: Directory for saving of infrared image and video files optris PI – E2008-06-A... - Page 17 Definition of the shut cycle of the flag Emissivity: Setting of the emissivity Temperature range: Selection of a temperature measurement range Process interface (PIF in): Programming of the PIF as input (0-10 V) to control the emissivity setting or flag remotely optris PI – E2008-06-A...
- Page 18 Process interface (PIF out): Programming of the PIF as output (0-10 V) to give out the object temperature, the internal temperature or the flag status optris PI – E2008-06-A...
- Page 19 Register: Measuring Measure area: Selection of the measurement function (cross hairs, rectangle) Temperature profile: Definition of length and position of the temperature profile optris PI – E2008-06-A...
- Page 20 Definition of a maximum recording time Radiometric recording: If activated the recording will be done as *.ravi – file. Later this can be opened with the software PI Connect only (no compatibility with media player software) optris PI – E2008-06-A...
- Page 21 Interprocess Communication (IPC): Enables the embedding of color, temperature or ADU values into other applications with a DLL. Reduce displayed frames: Control of the displayed picture information Standard setting: Skipping Display framerate: Frame rate used inside the software optris PI – E2008-06-A...
-
Page 22: Measurement Functions
Measurement Functions The PI Connect supports the following measurement functions: Cross hairs The temperature will be measured at one point. The cross hairs can be placed at any position. The measurement point can have the size of 1x1, 3x3 or 5x5 pixel. - Page 23 Size and position of the rectangle inside the picture can be defined as desired. Temperature profile This function can be used in addition to both of the above mentioned. Maximum two profile lines can be placed inside the infrared image. optris PI – E2008-06-A...
-
Page 24: Basics Of Infrared Thermometry
Distance to Spot size. The spectral filter selects the wavelength range, which is relevant for the temperature measurement. The detector in cooperation with the processing electronics transforms the emitted infrared radiation into electrical signals. optris PI – E2008-06-A... -
Page 25: Emissivity
ACLSED) onto the measuring object, which covers it completely. Now set the emissivity to 0,95 and take the temperature of the sticker. Afterwards, determine the temperature of the adjacent area on the measuring object and adjust the emissivity according to the value of the temperature of the sticker. optris PI – E2008-06-A... -
Page 26: Characteristic Emissivities
►Appendix A and B. These are average values, only. The actual emissivity of a material depends on the following factors: temperature measuring angle geometry of the surface thickness of the material constitution of the surface (polished, oxidized, rough, sandblast) spectral range of the measurement transmissivity (e.g. with thin films) optris PI – E2008-06-A... -
Page 27: Appendix A - Emissivity Table Metals
0,7-0,9 Iron non oxidized 0,05-0,2 non oxidized 0,05 rusted 0,5-0,7 Titanium polished 0,05-0,2 oxidized 0,5-0,9 oxidized 0,5-0,6 forged, blunt Wolfram polished 0,03-0,1 Iron, casted non oxidized Zinc polished 0,02 oxidized 0,6-0,95 oxidized Lead polished 0,05-0,1 optris PI – E2008-06-A... -
Page 28: Appendix B - Emissivity Table Non Metals
Glass 0,85 Grit 0,95 Gypsum 0,8-0,95 0,98 Limestone 0,98 Paint non alkaline 0,9-0,95 Paper any color 0,95 Plastic >50 µm non transparent 0,95 Rubber 0,95 Sand Snow Soil 0,9-0,98 Textiles 0,95 Water 0,93 Wood natural 0,9-0,95 optris PI – E2008-06-A...
