IP Digital to RF Analog Converter
Stock #
6733
© Blonder Tongue Labs, Inc.
All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
Model Name
Description

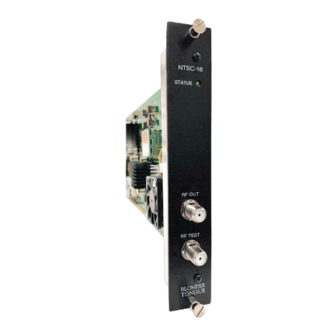

NXG-NTSC16
IP Digital to RF Analog Converter Module; 16 Channels
PRELIMINARY
Subject to Change
ISO 9001:2015 Certified
NXG-NTSC16
User Manual
P/N: 651252600A | Rev: 113020
Advertisement
Table of Contents
Related Manuals for Blonder tongue NXG-NTSC16
Summary of Contents for Blonder tongue NXG-NTSC16
- Page 1 IP Digital to RF Analog Converter Module; 16 Channels PRELIMINARY Subject to Change P/N: 651252600A | Rev: 113020 © Blonder Tongue Labs, Inc. ISO 9001:2015 Certified All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.
- Page 2 Returning Product for Repair (or Credit) A Return Material Authorization (RMA) Number is required on all products returned to Blonder Tongue, regardless if the product is being returned for repair or credit. Before returning product, please contact the Blonder Tongue Service www.blondertongue.com Department at 1-800-523-6049, Ext.
-
Page 3: Table Of Contents
NXG-NTSC16 Module User Manual Table of Contents SECTION 1 – GENERAL & SAFETY INSTRUCTIONS ....................... 4 SECTION 2 – PRODUCT SUMMARY ..........................5 2.1 PRODUCT APPLICATION & FEATURES ........................5 2.2 MODULE SPECIFICATION ............................6 2.3 MODULE INSTALLATION ............................6 SECTION 3 –... -
Page 4: Section 1 - General & Safety Instructions
å Do not use accessories or attachments not recommended by Blonder Tongue, å Do not overload wall outlets or extension cords, as this can result in a risk of fire as they may cause hazards, and will void the warranty. -
Page 5: Section 2 - Product Summary
2.1 Product Application & Features Application: The NXG-NTSC16 output module is a multi-channel Digital to Analog RF converter, designed to convert up to 16 HD or SD programs and the primary audio channel to 16 NTSC modulated RF analog channels. -
Page 6: Module Specification
6 NXG-NTSC16 Module User Manual 2.2 Module Specification Input Stream Output Stream 16x SPTS from NXG Backplane RF Connector: 1x “F” Female Video Format: MPEG-2; H.264 ; H.265 Standard: NTSC Analog, Modulated HEVC Video Resolution: 480i Frequency Range: 54 to 1002 MHz (59.94, 60... -
Page 7: Section 3 - Module Status And General Management
NXG-NTSC16 Module User Manual Section 3 – Module Status and General Management 3.1 “16Ch NTSC Modulator Module: Status” Tab The “16Ch NTSC Modulator Module: Status” tab (Figure 3.1) displays the general health and module information at a glance. The information is provided as a quick way to monitor the module or assist with troubleshooting issues that may arise. -
Page 8: 16Ch Ntsc Modulator Module: System" Tab
8 NXG-NTSC16 Module User Manual 3.1 “16Ch NTSC Modulator Module: Status” Tab (continued) Figure 3.1b - “16Ch NTSC Modulator Module: Status” Tab - Decoders Section In the Decoder Device section (Figure 3.1b), the following decoder-specific information is displayed: Device: Indicates the the decoders DC1 & DC2 displays information for each module decoder input. These will populate other data once set up and enabled. -
Page 9: Section 4 - Configuring The Decoders
NXG-NTSC16 Module User Manual Section 4 – Configuring the Decoders 4.1 “Decode/Output: Status” Tab The “Decode/Output: Status” Tab (Figure 4.1) is a “read-only” screen which indicates the status of each decoder. A visual status of the pipeline is also shown on the left side. When hovering over a decode block, the corresponding status table, to the right, is highlighted. -
Page 10: Decode/Output: Settings" Tab
10 NXG-NTSC16 Module User Manual 4.2 “Decode/Output: Settings” Tab The “Decode/Output: Settings” Tab (Figure 4.2) allows the user to configure each decoder (DC) and displays status information about the input and output streams. A visual status of the pipeline is also shown on the left side. When hovering over a decode block, the corresponding status table, to the right, is highlighted. -
Page 11: Decode/Output: Global Output" Tab
NXG-NTSC16 Module User Manual 4.3 “Decode/Output: Global Output” Tab The “Decode/Output: Global Output” Tab (Figure 4.3) allows the user to configure global settings for all output streams. The configurable options are as follows: Figure 4.3 - “Decode/Output: Global Output” Tab - Global Output Configuration Global Output Level: Allows the user to select the output level for all streams. -
Page 12: Section 5 - Firmware Updates
12 NXG-NTSC16 Module User Manual Section 5 – Firmware Updates The “Firmware Update” tab (Figures 5a, 5b, 5c, and 5d) is part of the Master Controller Module interface, and is used for all installed modules. It is located on the right side of the main menu allowing the user to review currently installed firmware versions and provides a quick and easy way to apply any new updates. -
Page 13: Section 6 - Troubleshooting
NXG-NTSC16 Module User Manual Section 6 – Troubleshooting For technical support please contact us at 1-800-523-6049 between the hours of 8am and 5pm EST. - Page 14 14 NXG-NTSC16 Module User Manual...
- Page 15 10. The cost of the extended warranty is 8% of the purchase price for a 1 or 2 year extension beyond the Blonder Tongue standard warranty. e.g. A product price of $1000 will be $80 for the 1 year (12 mos) and additional $80 for 2 year (24 mos) extension for a total of $160.
- Page 16 BT may determine) any product manufactured by BT which proves to be defective in materials or workmanship or fails to Blonder Tongue Laboratories, Inc. (BT) will at its sole option, either repair or replace (with a new or factory reconditioned product, as BT may the case of software, licensed) by Seller which is defective in materials or workmanship or fails to meet the applicable specifications that are in effect on the date of meet the specifications which are in effect on the date of shipment or such other specifications as may have been expressly...
