7. Mechanical Design and EMI/ESD Shielding

7.1. PCB Size

Mechanical dimensions:
According to Mini-ITX specification Figure 2 and Figure 3

7.2. Maximum component height

top side:
bottom side:

7.3. Mounting Holes

The base plate is located at the bottom of the eDM-CB-SM-IPCS system. The eDM-CB-SM-IPCS with the SMARC module
mounted on top of it rests on threaded standoffs located at the base plate matching mounting holes type "A" and "B".

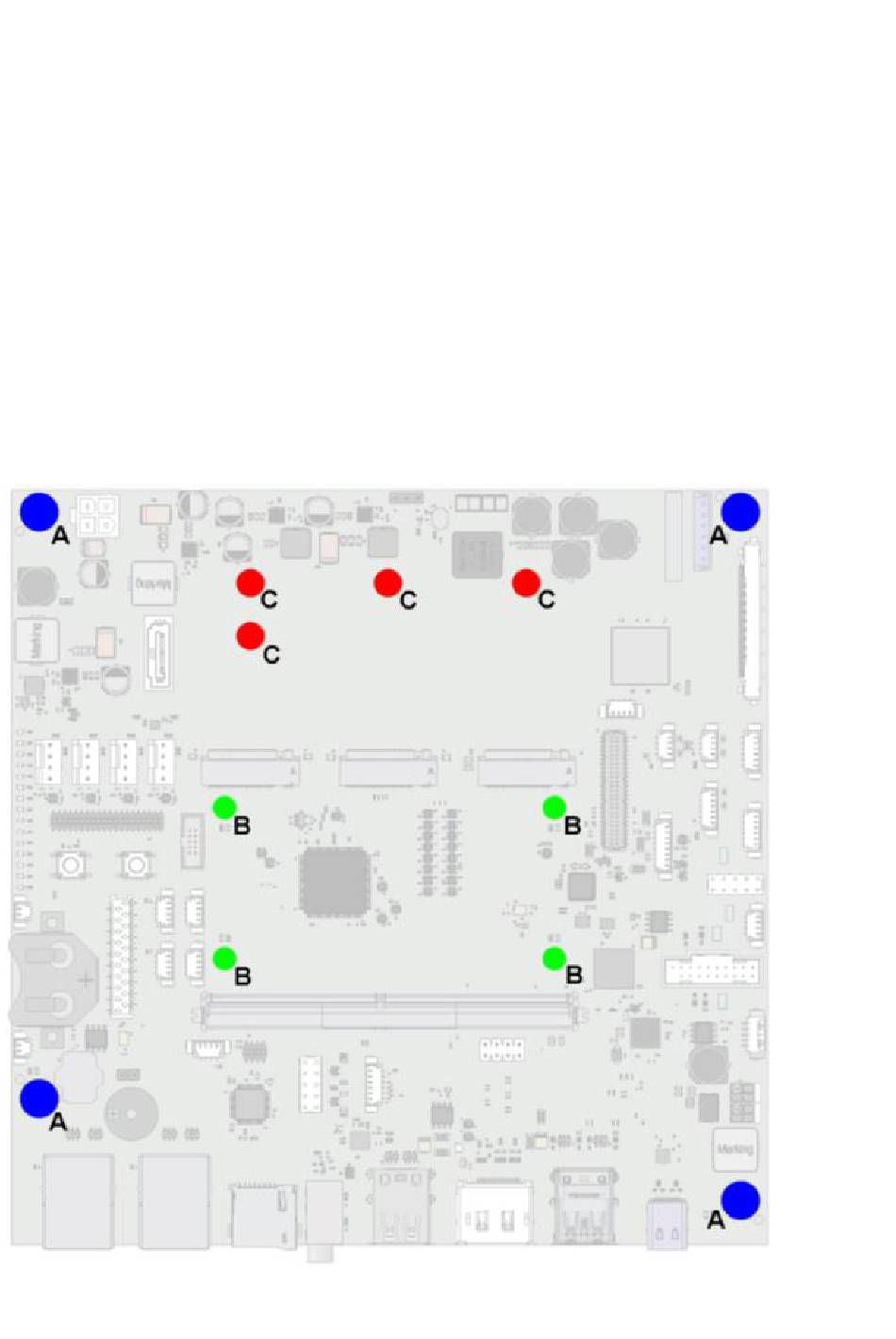

Figure 50 Mounting Holes
170,0 mm x 170,0 mm x 1,6 mm
17,0 mm (Dual USB-A connector at I/O shield)
6,0 mm
