4.21. V-By-One Display Connector

Reference Designator: J32
JAE FI-RE51S-HF connector with 51 positions, shielded, right-angled
Description
V-By-One connector supporting next generation flat panels with graphics resolution up to 4k (2160p).
Interfaces used
DP1 port from SMARC module over DisplayPort to Vx1 Bridge Novatek NT68410UBG.
Display Power Supply: V_TCON_5V_10V_12V can be selected through Jumper J60 between 5V/10V/12V.
The maximum current of 4.0A can be continuously sourced. Short overload up to 5A for Display test-mode is
allowed.
The overcurrent protection is by set eFuse to 5.3A
Display Power Supply
The VDD (V-TCON) power supply is default selected to VCC 12.0V (S0) by J60.
Attention! The V-By-One panel-power can only be supplied either through the "V-By-One Displayconnector" J32 or
the "V-By-One Display-Power-connector" J56

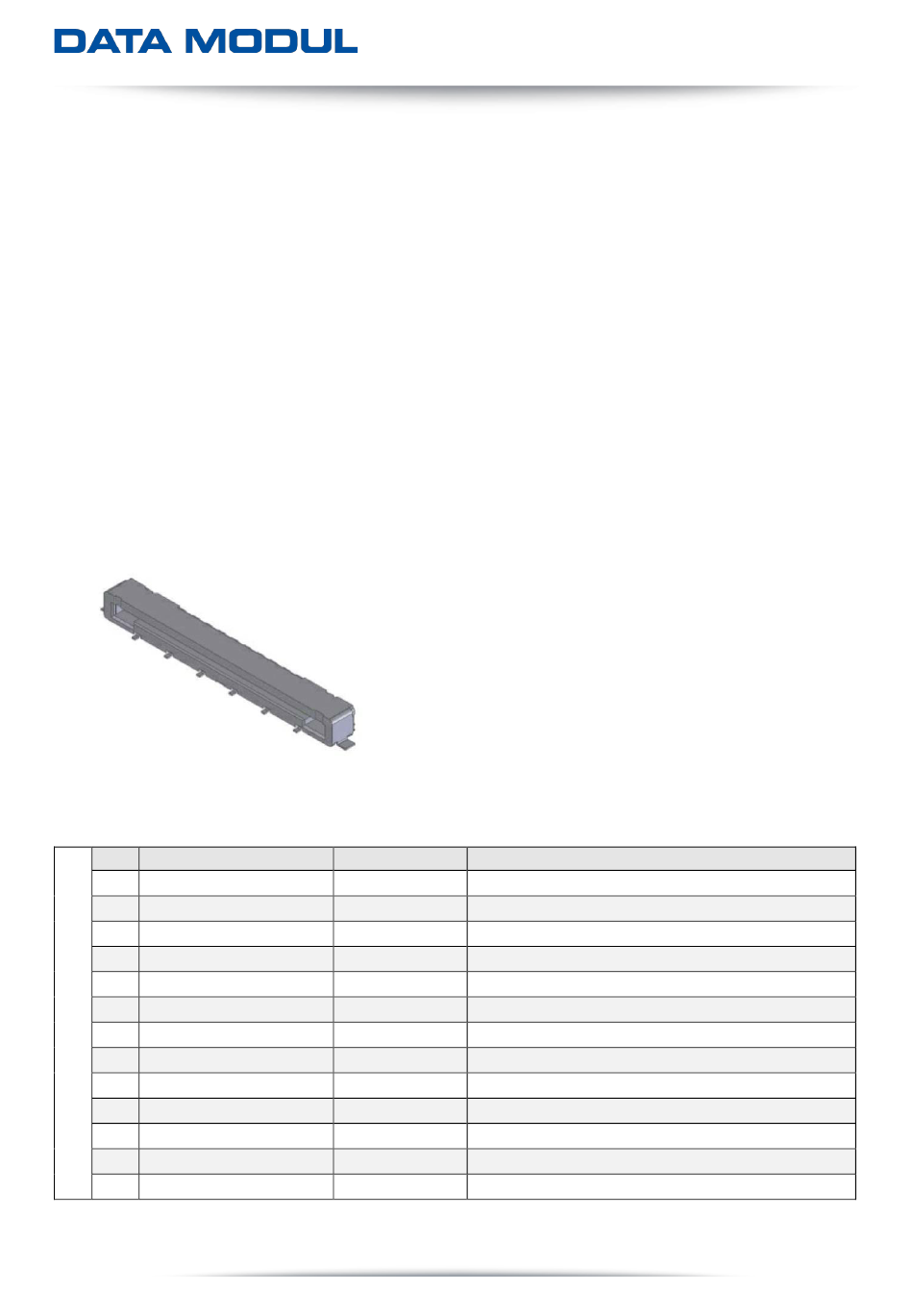

Connector drawing and contact-numbering scheme
Figure 30 Connector – J32
Pinout according to Data Modul Inhouse-Standard DMIS12
Pin Signal / Function
1 GND
2 VX1_TX7_P
3 VX1_TX7_N
4 GND
5 VX1_TX6_P
6 VX1_TX6_N
J32
7 GND
8 VX1_TX5_P
9 VX1_TX5_N
10 GND
11 VX1_TX4_P
12 VX1_TX4_N
13 GND
48
Pin Type Signal Description
GND V-By-One HS CML ground
O DP (CML) V-By-One HS lane 7 (CML), positive pin
O DP (CML) V-By-One HS lane 7 (CML), negative pin
GND V-By-One HS CML ground
O DP (CML) V-By-One HS lane 6 (CML), positive pin
O DP (CML) V-By-One HS lane 6 (CML), negative pin
GND V-By-One HS CML ground
O DP (CML) V-By-One HS lane 5 (CML), positive pin
O DP (CML) V-By-One HS lane 5 (CML), negative pin
GND V-By-One HS CML ground
O DP (CML) V-By-One HS lane (CML), positive pin
O DP (CML) V-By-One HS lane 4 (CML), negative pin
GND V-By-One HS CML ground
