Pinout
Pin Signal / Function
J61 1 PWRBTN_KEY#
2 Ground

5. Jumpers, Switches and Status LEDs

5.1. Boot-Select Jumper

Reference Designator: – J44
Description
The carrier board provides array of 4 jumper-positions connected to FORCE_RECOV# and the BOOT_SEL[0:2]#
signals of the SMARC module to allow any boot-device defined by the SMARC specification using a 8-pin header
2,54mm pitch THT

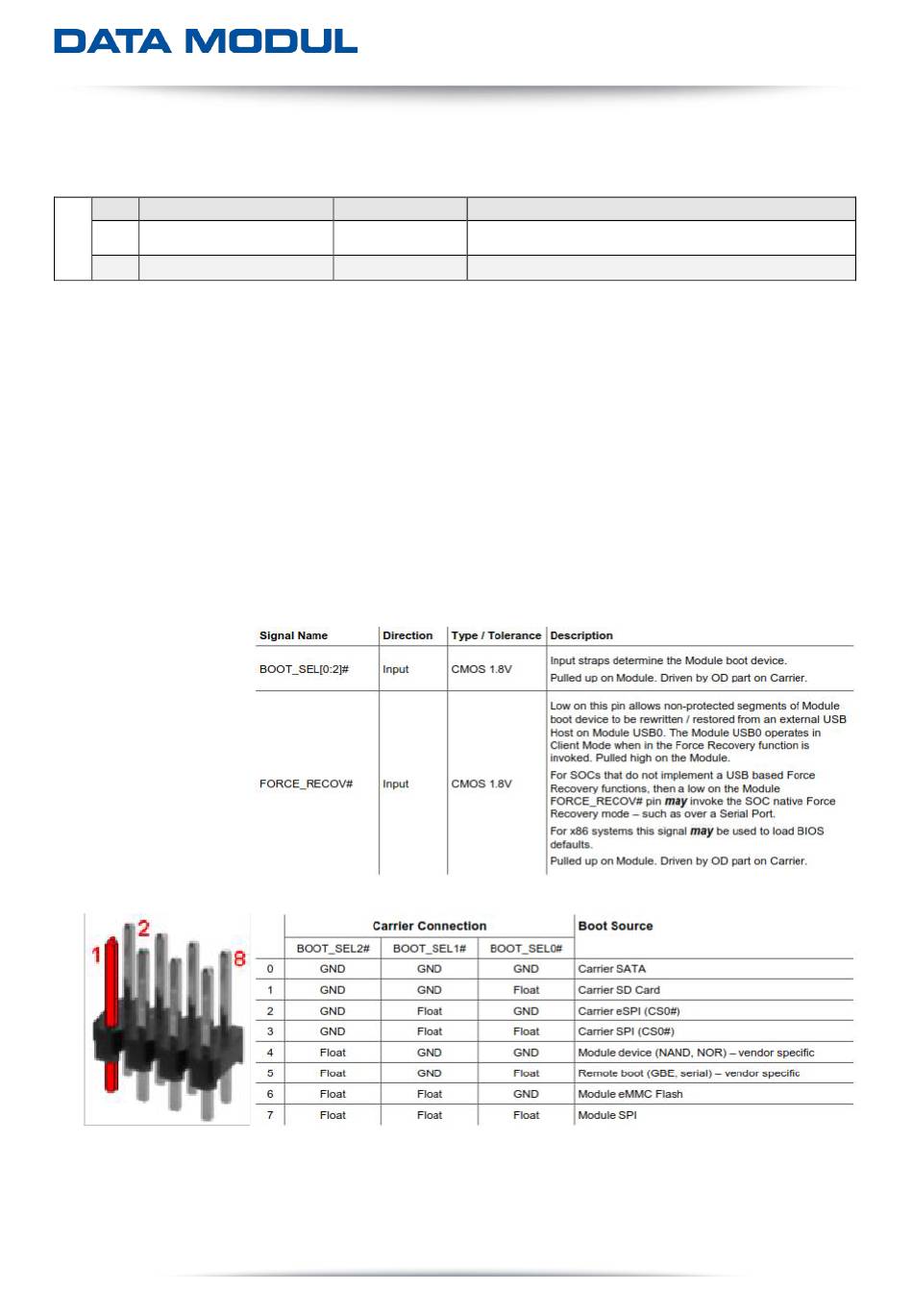

Component drawing and function table
Figure 45 Connector – J44
64
Pin Type Signal Description
Power-Button Input to uC. 499kOhm pull-up to 3.3V on
I (OD 3.3V)
CB.
GND Connected to ground potential of the PCB
