4.22. V-By-One Display-Power-Connector (TCON)

Reference Designator: J56
2.50mm Pitch JST EH connector, wire-to-board header, THT, straight, 6 circuits
Description
Optional V-TCON power supply connector for Vx1 Display.
Interfaces used
Optional Vx1 Display Power Supply: V_TCON_5V_10V_12V can be selected through Jumper J60 between
5V/10V/12V.
The maximum current of 4.0A can be continuously sourced. Short overload up to 5A for Display test-mode is
allowed.
The overcurrent protection is by set eFuse to 5.3A
Attention! The V-By-One panel-power can only be supplied either through the "V-By-One Display Connector" J56 or
"V-By-One Display-Power-Connector" J32.
Connector drawing and contact-numbering scheme

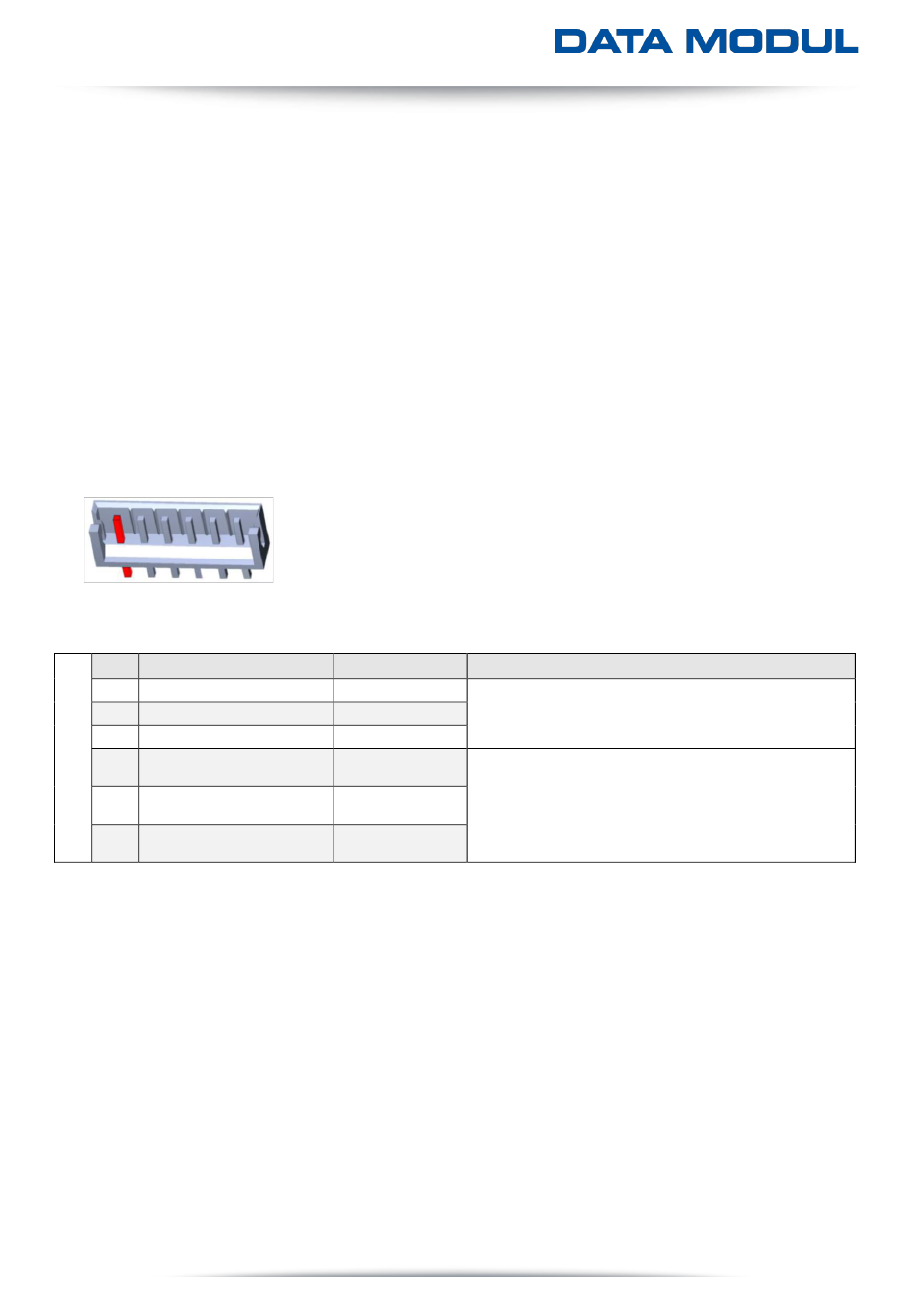

Figure 31 Connector – J56
Pinout
Pin Signal / Function
1 GND
2 GND
3 GND
J56
V_TCON_5V_10V_12V
4
(5.0V, 10.0V or 12.0V)
V_TCON_5V_10V_12V
5
(5.0V, 10.0V or 12.0V)
V_TCON_5V_10V_12V
6
(5.0V, 10.0V or 12.0V)
12048321 Rev. 01 (Draft)
Pin Type Signal Description
GND
GND Power ground for panel supply
GND
Power
Power Power-supply for the panel; 5,0V, 10,0V or 12,0V
Power
