3.5. DisplayPort Connector

Reference Designator: – J28
Description
One standard DisplayPort connector is provided on the front of the eDM-CB-SM-IPCS.
Interface used
DisplayPort DP0 from the SMARC module. The graphic performance is depended on used SMARC module.

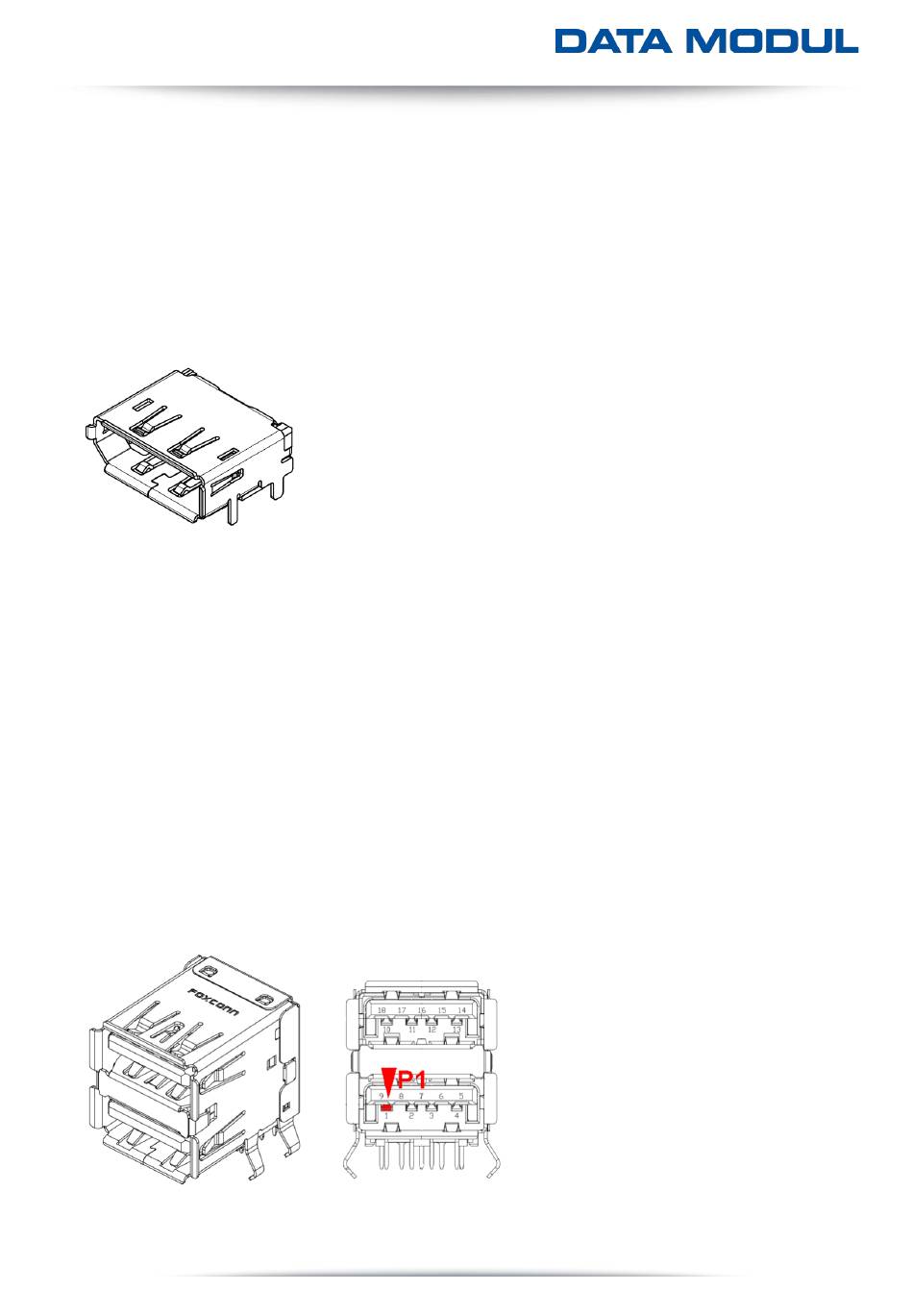

Connector drawing and contact-numbering scheme
Figure 7 Connector – J28

3.6. USB 3.0 Dual Type-A Connector

Reference Designator: – J24
Description
Standard USB 3.0 Dual Type-A connector with supported cable length of max. 1,5 m.
Shared Port: USB 2.0 and 3.0
Availability of one or the other interface dependent on exact product variant based on this electronic design.
For manual modifications of the Port routing, see Chapter "Functional Exclusives and Shared Resources".
Interfaces used
USB 3.0 port 2 (shared port)
USB 2.0 port 2 (shared port)
Supplied by 5.0 V S5 voltage
Current limited to 900 mA for each port.
Connector drawing and contact-numbering scheme
Figure 8 Connector – J24
12048321 Rev. 01 (Draft)
Port 2 (upper port) is shared with the USB Type-C connector J26.
and 3 for the SMARC module
and 3 of the SMARC module
