4.31. RTC-Battery Internal Connector

Reference Designator: – J54
1.25mm Pitch Molex PicoBlade wire-to-board header, SMT, straight, 2 circuits
Description
J54 is external RTC-Battery connection terminal with double protection against overcurrent and reversed polarity by
diode and resistor in serial. The external RTC-Battery can be connected parallel to the on board CR2023 coin cell
(J55).

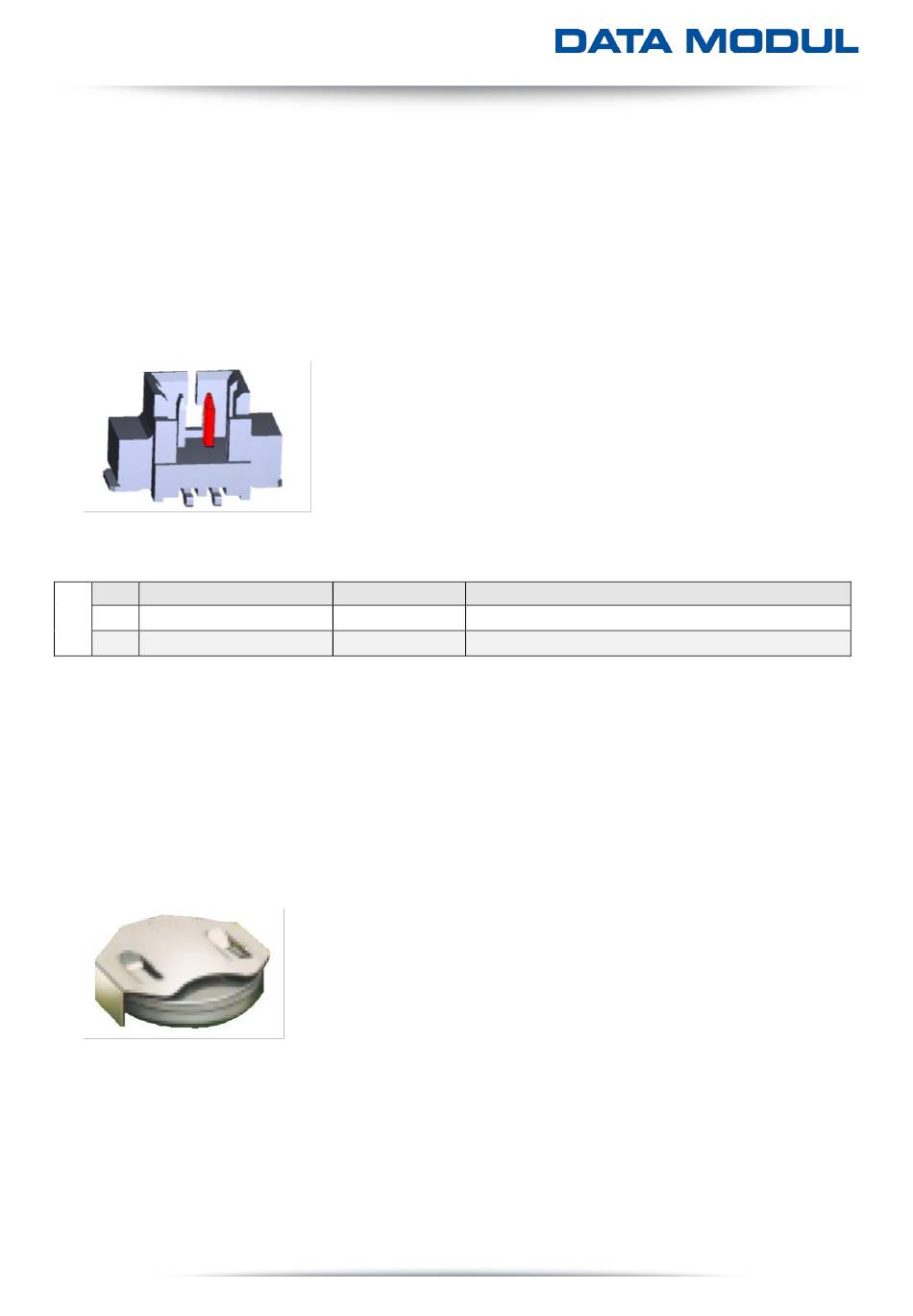

Connector drawing and contact-numbering scheme
Figure 40 Connector – J54
Pinout
Pin Signal / Function
J54 1 V_3V0_BATCONN
2 GND

4.32. RTC-Battery CR2023 Socket

Reference Designator: – J55
Description
The J55 is a RTC-Battery CR2023 socket. The RTC-Battery is protected against overcurrent and reversed polarity
by diode and resistor in serial. The external RTC-Battery can be connected parallel to the on board CR2023 coin cell
(J54).
Connector drawing and contact-numbering scheme
Figure 41 Connector – J55
12048321 Rev. 01 (Draft)
Pin Type Signal Description
Power Coin cell positive (+) pole
GND Coin cell negative (-) pole
