Summary of Contents for SeaLevel COMM+4 3064

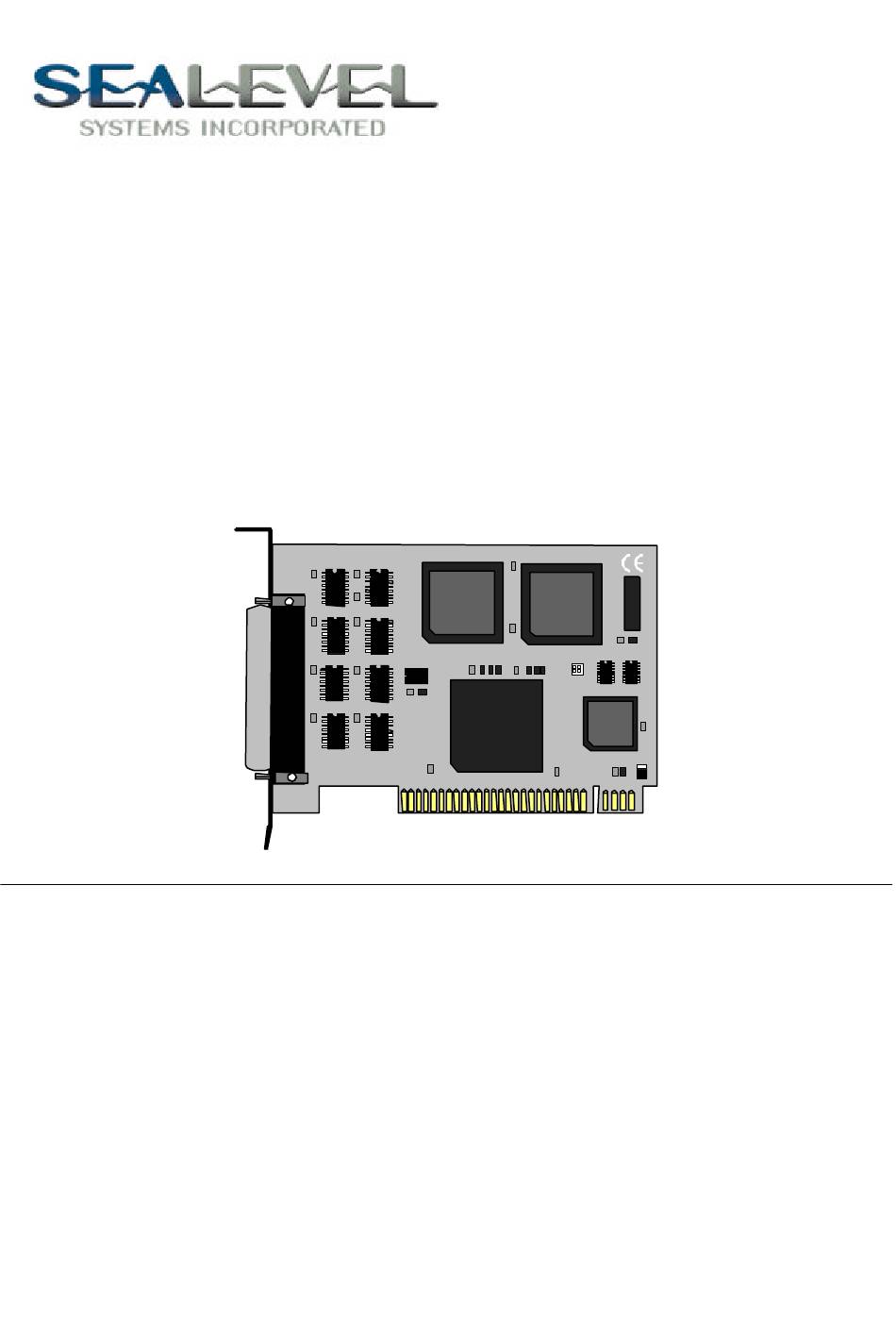

- Page 1 ™ COMM+4 USER’S MANUAL Part Number 3064, 3065, 3066 Sealevel Systems, Inc Phone: (864) 843-4343 155 Technology Place Fax: (864) 843-3067 P.O. Box 830 www.sealevel.com Liberty, SC 29657...
- Page 2 Sections: Installation Address Selection Interrupt Selection Technical Description Specifications Warranty Figures: Address Table Dipswitch S1 Illustration Port Correlation Table Connector Pin-Outs Silk-Screen Schematic © Copyright 1995 Sealevel Systems Incorporated ________________________________________________________________________ Sealevel Systems SIO-485 Page 1...
- Page 3 In the example below, the address 2E0 Hex is selected as a base. Address 2E0 in binary is XX 10 111X XXXX where X = a non- selectable address bit. A9 A8 A7 A6 A5 Figure 2 DIP-Switch S1 ________________________________________________________________________ Sealevel Systems SIO-485 Page 2...
- Page 4 Operating System Installation For Windows Users Start by choosing Install Software at the beginning of the CD. Choose Asynchronous COM: Port Software, SeaCOM. Other Operating Systems Refer to the appropriate section of the Serial Utilities Software. ________________________________________________________________________ Sealevel Systems SIO-485 Page 3...
- Page 5 IRQ line. The IRQ can be set at jumper E1 for IRQ 2, 3, 4, or 5. In the following example the IRQ is set as IRQ 3. Figure 4 Header E1, IRQ Selection ________________________________________________________________________ Sealevel Systems SIO-485 Page 4...
- Page 6 0 - 90% R.H. Non Condensing. 0 - 90% Non Condensing Power Consumption SUPPLY LINE +12 VDc -12 VDc +5 VDc RATING(mA) 50 mA 50 mA 550 mA Mean Time Between Failures (MTBF) Greater Than 150,000 Hrs. (Calculated) ________________________________________________________________________ Sealevel Systems SIO-485 Page 5...
- Page 7 Sealevel Systems, Inc. provides a lifetime warranty for this product. Should this product fail to be in good working order at any time during this period, Sealevel Systems will, at its option, replace or repair it at no additional charge except as set forth in the following terms.
