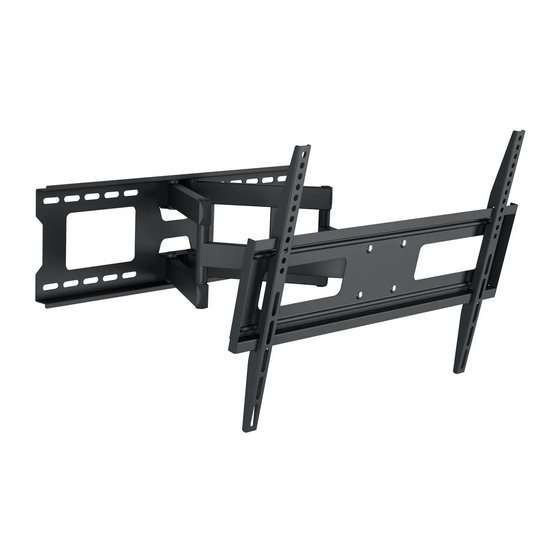

vogel's MA 4040 Series Full Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MA 4040 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all
about safe, efficient installation, and how to use your new mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could
put you, your TV, and your family at substantial risk.
MA 4040 Series - English
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MA 4040 Series and is the answer not in the manual?

Questions and answers

Related Manuals for vogel's MA 4040 Series

Summary of Contents for vogel's MA 4040 Series

  • Page 1 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. MA 4040 Series - English...
  • Page 2   Handle and transport the product with care.   Repack the product when transporting or not using it for a longer period of time.   Lifting your TV is a two-person job. Don’t be bold! MA 4040 Series - English...

  • Page 3: What's In Your Box

    Something missing? Make sure your packaging has everything in place: A. Wall mount B. Strips C. Instructions D. Bolts for fastening strips on TV   M6 bolts   M8 bolts E. Spacers F. Washers G. Fischer© Plugs (fischer© DuoPower) H. Bolts MA 4040 Series - English...
  • Page 4 For walls with wooden studs: Stud finder   For concrete/brick walls: 8mm or 5/16” concrete / brick drill   No. 10 socket wrench or socket attachment   Pencil   Spirit level or spirit level app MA 4040 Series - English...
  • Page 5 Step 1: Attach the strips to the TV   1. Carefully put the TV on a clean surface without obstacles. Make sure the strips are positioned correctly, the screw on the strip should be lower on the MA 4040 Series - English...
  • Page 6 Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly. Refer to the user manual of your TV for the correct mounting material. MA 4040 Series - English...
  • Page 7   2. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when seated.   3. Hold the wall mount Ⓐ against the wall and mark the location of the 4 holes. Use a spirit level to level the wall mount. MA 4040 Series - English...
  • Page 8 Up for some smooth sailing? Pre-drill the holes with a 5mm concrete/brick drill.   6. Attach the wall mount Ⓐ to the wall with the bolts Ⓗ , washers Ⓕ , and plugs Ⓖ . MA 4040 Series - English...
  • Page 9   2. Don’t just guess! Always use a stud finder to determine the position of studs.   3. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when seated. MA 4040 Series - English...
  • Page 10 If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact. MA 4040 Series - English...
  • Page 11 Lifting your TV is a two-person job. Don’t be bold!   2. Tighten the screws on the strips Ⓑ to fasten the strips Ⓑ to the wall mount Ⓐ . Job done now! Enjoy watching your TV! MA 4040 Series - English...
  • Page 12   2. Try which tilt position creates the perfect viewing angle for you. Make sure the screen is in line with your eye level when seated for some well-deserved TV time.   3. Tighten the two bolts at the top of the wall mount Ⓐ when satisfied. MA 4040 Series - English...
  • Page 13   2. Loosen the screws on the strips Ⓒ to release the TV.   3. Lift your TV off of the wall mount Ⓐ , and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. MA 4040 Series - English...
  • Page 14 Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com www.vogels.com/contact facebook.com/ VogelsForSure/ instagram.com/ vogels_official/ www.youtube.com/ c/VogelsForSure MA 4040 Series - English...

  • Page 15: Simple Troubleshooting

    ‘Which bolts or screws do I need to Vogel's offers a complete assembly kit with all mounting use?’ materials included in the box, for both your TV and wall.
  • Page 16 TV. Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! MA 4040 Series - English...
  • Page 17 If the product is used for different equipment than is mentioned on or in the packing. Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands Vogel’s Products BV 2022 © All rights reserved. MA 4040 Series - English...
