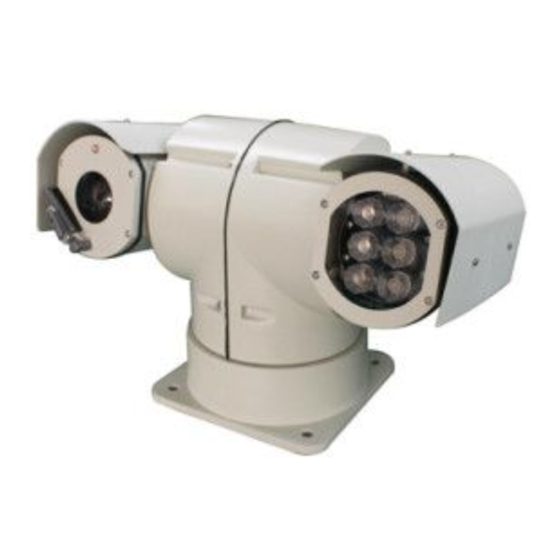

TVI High Speed PTZ
Operation Manual
Prior to operation, please carefully read this manual！


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASH56NVIR-TVI30 and is the answer not in the manual?

Questions and answers

Related Manuals for COP-USA ASH56NVIR-TVI30

Summary of Contents for COP-USA ASH56NVIR-TVI30

  • Page 1 TVI High Speed PTZ Operation Manual Prior to operation, please carefully read this manual！  ...
  • Page 2 Safety attentions: Caution: Electric shock, Do not open Caution: For preventing electric shock, no removal without authorization, no parts inside may be repaired by the users themselves, which may be only done by the qualified staff. A flash of light in equilateral triangle is used for reminding user that “there are non-insulated dangerous voltage points nearby this product”, endanger the personnel safety.

  • Page 3: Table Of Contents

    CONTENTS Attention ………………………………………………………………………………………………………………………………………………………………….5 Chapter I Functions and features ……………………………………………………………………………………………………………………………………7 1.1 PTZ Specifications………………………………………………………………………………………………………………………………………………..7 1.2 Auxiliary lighting…………………………………………………………………………………………………………………………………………………..8 1.3 PTZ functions………………………………………………………………………………………………………………………………………………………8 Chapter II Network menu Setting..………………………………………………………………………………………………………………………………………11 2.1 System connection diagram………………………………………………………………………………………………………………………………………11 2.2 ONVIF Discovery Tool configuration camera IP address………………………………………………………………………………………………………12 2.3 Log in the network………………………………………………………………………………………………………………………………………………….14 2.4 Video control install…………………………………………………………………………………………………………………………………………………15 2.5 Video preview……………………………………………………………………………………………………………………………………………………….18 2.6 Device parameters…………………………………………………………………………………………………………………………………………………..24...
  • Page 4 Warning………………………………………………………………………………………………………………………………………………….47 Ambient requirements…………………………………………………………………………………………………………………………………….47 Cabling safety………………………………………………………………………………………………………………………………………………….48 Installation preparation………………………………………………………………………………………………………………………………………….48 4.6 Installation methods…………………………………………………………………………………………………………………………………………………..49 4.7 Installation description………………………………………………………………………………………………………………………………………………..50 4.8 Outgoing lines of PTZ…………………………………………………………………………………………………………………………………………………53 Annex I: Technical parameters for auxiliary lighting………………………………………………………………………………………………………………………56 Annex II:Troubleshooting……………………………………………………………………………………………………………………………………………………57 Annex III:24VAC line gauge and transmission distance relationship……………………………………………………………………………………………………58 Annex IV: Lightning and surge protection………………………………………………………………………………………………………………………………….60 Annex V: Maintenance of the terms of service…………………………………………………………………………………………………………………………….61  ...

  • Page 5: Attention

    Attention Don’t look straight at the laser window lest your eyes or skin might be exposed under direct and scattering laser. Keep the illuminated object more than 8m from the laser window.  Electrical safety The installation and use of this product must strictly comply with national and local electrical standards. It has self-provided power supply. Power is supplied to the product in two modes: DC12V (on-board) and AC24V (ordinary PTZ) (refer to product identification or connecting line identification).
  • Page 6 maintenance personnel.  Environmental requirements Temperature: -35 ~+55 Humidity: 90% Air pressure: 86-106kpa  Installation request  Install the device at a location with sufficient bearing capacity. Do no store, install or use the product in an inflammable, explosive and dangerous area. ...

  • Page 7: Chapter I Functions And Features

    Chapter I Functions and features 1.1 PTZ Specifications Power supply AC24V 50/60Hz 2.50A Power consumption Preset position 255pcs Cruising 8gorup, each group contain 255 presets 8pcs, each pcs can record 1024pcs PTZ order Pattern 1channel alarm input, 1channel alarm output Alarm 8 area Privacy mask...

  • Page 8: Auxiliary Lighting

    1.2 Auxiliary lighting  Optional accessories Accessory 1 Ordinary Infrared Accessory 2 Synchronous Infrared Accessory 3 Synchronous Laser Note: The detailed parameters of the accessories are shown in Annex I: Technical parameters for auxiliary lighting. 1.3 PTZ functions The network PTZ camera is an embedded digital surveillance product integrating a megapixel high-definition camera, a universal speed-variable PTZ and a network video server.
  • Page 9 Support auto iris and auto electronic shutter and adapt to various surveillance environments   Long-focus speed restriction: The PTZ may automatically adjust its manual control speed based on the current focus of the camera. The larger the magnification of the camera is, the lower the manual control speed will be, to ensure fast and accurate object search. ...
  • Page 10 degree.During focusing, the laser light spot does not bounce. After special treatment, the laser transmittance of the optical lens may exceed 98%.  Homogenization of laser light spot: As the light source adopts a semiconductor laser unit with optical output, after the laser light source is incorporated into the optical fiber and transmitted, a unique homogenization technology will be adopted to make the lighting effect more uniform and clearer.

  • Page 11: Chapter Ii Network Menu Setting

    Chapter II Network menu Setting 2.1 System connection diagram 11 ...

  • Page 12: Onvif Discovery Tool Configuration Camera Ip Address

    2.2 ONVIF Discovery Tool configuration camera IP address In system CD,we support ONVIF Discovery Tool for user, it can used for device management test:  Search IP camera or Video server device which in the network  View IP,Hardware...etc information ...
  • Page 13 dialog box, can configurate IP adrress..etc.After modity, click”SAVE”, it will show you a tip to tell you are sucess, then click”Reboot” to re-start the device. Test whether connected After setup IP address, click left bottom of PC: Start--all program--attachment”,open”Command Prompt”,use PING command to test whether PC has connected with IP camera.

  • Page 14: Log In The Network

    2.3 Log in the network This chapter introduce how to access IP camera through web browser. This manual’s interface are under Windows XP and IE8. When through IE brower to preview IP camrea’s image, need install VLC.EXE software firstly, after install, open IE, input IP address (Default: 192.168.1.8),Enter into login interface.

  • Page 15: Video Control Install

    2.4 Video Activex install Log into user interface, you can click top right”Player download” Interface will popup player download dialog box,shown as right Picture,choose”Run”, will popup below dialog box: Click’Run”,install video Activex. 15 ...
  • Page 16 Click “Next” ,continue install Choose a disk to install this software, then click”Install”, Continue install. 16 ...
  • Page 17 After install,as right picture,Click”Close”,finish Install, close IE. Then Login PTZ IP address, can view video. Ps: If your Activex in your PC is old version, IE will popup information, to ask you install newest Activex version. 17 ...

  • Page 18: Video Preview

    2.5 Video preview  Note：It always has delay if transmission by IP, it depends on user’s PC CPU and qualities of switcher and router.Normally, MP IP video has <500ms delay. 18 ...
  • Page 19 Area 1: Toolbar: Click into corresponding function ICON Explan Enter the image code stream, PTZ, camera control interface Into network parameters and speed dome function Settings Enter the picture management or local video playback and download System information display Player Activex download Exit user interface, back to Login interface Area 2: Support Main stream,sub-stream 2kinds stream preveiw, at the righ area 3 open corresponding preview images.
  • Page 20 2.5.1 PTZ control After open preview image, each key in the right of interface means: Speed key Setup PTZ totate speed. Direction Control PTZ”up,top left,top right,down,left bottom,right bottom,right,left. Click icon,can call OSD menu Zoom Change lens zoom(invalid for auto Zoom camer) Focal Change lens’...
  • Page 21 2.5.2 Camera spcification After open device preview, choose right side “Camera”, specification as below:(Different camera module, specification will different) Display camera brand Camera brand Display camera model Camera model ON/OFF D-zoom Zoom speed Auto/Manual Focus mode Day/Night/Auto ICR Mode Auto/Manual/SP/AV AE Mode 1-1/10000 Shutter speed...
  • Page 22 2.5.3 Advanced setup After open device preview, choose”AUX”, specfication is as bleow: Night vision Mode OFF/ON/AUTO Period 0-60 Threshold 0-255 Gain 0-64 Wiper Mode One /limit/N time Time 10-600 Start Start wiper Stop Stop wiper Other Defrost User hearter to defrost 22 ...
  • Page 23 2.5.4 Image setup After open device preview, choose”Image”, specfication is as bleow: Noise reduction Enable Disable/ON/Auto Mode 2D/3D/3D+/Strong noise reduction/Mixed noise reduction Level 0-168 Edge enhance Enable Disable/ON Level 0-31 Image adjust Brightness 0-127 Contrast 0-127 Saturation 0-255 Flip Image up and down prevision Mirror Image left and right prevision Default setting...

  • Page 24: Device Parameters

    2.6 Device parameters 2.6.1 Network parameters Go into <Device parameters>→<Network parameters>.then you can setup network parameters. As other IP device, connect and use IP caemra, must let IP camera’s IP address Full-Mesh as user PC’s IP address. Please note that: In the sameLAN, IP address can not be the same, it will has clash, and let device can’t work.
  • Page 25 2.6.2 Portocol setup Onvif protocol default open, Device ID is 28181 server assign to the camera’s ID , Registered password is needed for the corresponding device ID password， device is in 28181 domains,sever ID is 28181’s server ID, server’s IP is 28181’s IP address, sever port is sever provide to outside’s port NO. Alarm device ID is when the caemra catch alarm information, will according to this ID to send alarm information.
  • Page 26 2.6.3 Stream setup Enter<Device parameters>→<Stream setup>, can setting stream Stream type: Main stream, sub-stream,both of them are video stream, also can do customize setting for size,frame,rate,Frame interval, level. All these seting are used for adjust video (or preview) image quality and storage file bit. Main stream are default choose, sub-stream can be choose, but not default choose. Full frame rate is default output frame rate of camera,MAX.frame rate Frame interval: also means Keyframe, 1 frame interval, will influence with image quality and stream.
  • Page 27 Auto snapshot Auto capture can be close, also can tranmission to SD card,FTP, also can uploading to SD card & FTP to save. Trigger set time means at regular intervals will capture a picture by PTZ. FTP uploading, address: FTP server address. PORT: FTP server port, default is 21,user name: FTP username, PW: FTP pw, uploading path: FTP uploading path,default is Root directory, FTP mode: FTP server work mode, default is PASV.
  • Page 28 When record time too long, can make video file integral point automatic subdivision,this can convenience to search or playback image file. When TF card’s free space is lower than setting value, will stop record or automatic to delete oldest record file then record again. 2.6.5 Video setup Input can set as 1080P25、1080P30、720P50、720P60, change this option will change camera video type,and influence coding and ouput video.
  • Page 29 2.6.6 Alarm setup  Alarm input attribute contain high level and low level. Please accrording to input alarm device and real used control type to choose best suitable attribute. Normally close: Normally open circuit, when alram signal trigger connect circuit; Normally open: Normally short out, when alarm signal trigger switch off circuit.
  • Page 30 2.6.8 Other setup  Auto flip: When camera come to the tilt position, pan can auto run 180°, ON/OFF for option.  Speed limit: When camera in high zoo, PTZ or speed dome will automatic let speed slow, ON/OFF for optiona. ...
  • Page 31 2.6.9 Interface setup Hide character which on the top left of preview interface(OSD menu can are all hide both in analog image or IP image)/Image mode(Display image mode OSD menu)/TXT mode(Display TXT mode OSD menu)、subtitle position, typeface’s size, edge distance,code flow superposition, and other thing to edit. Edge distance means preview interface top left character the distance of video edge.
  • Page 32 When chooseTXT mode will display below function menu, superposition divide to 3 TXT subtitle, TXT content can be custom English or Chinese or anyother character, also can be PTZ or speed dome buit-in common variations,through variations can catch some dynamic information. For instance: In “connect”...
  • Page 33 2.6.10 System setup It can setup timezone, local time,PW. Click”Restor factory setting” will change to factory setting. Click”Reboot” ,device will auto re-start. Before update, please confirm that updata routine is copy in PC, choose”Browse” to add update file, click”upload”,screen will display above dialog box” This could take a few minutes,please be patient!”...

  • Page 34: File Management

    2.7 File management Time quantum not write anything, Click search directly, will display all file which storage in TF.It can display: file name, time, file size, type,support file’s download and delete function. means this file is video, click this icon will open video file to palyback, click will back to file management interface.
  • Page 35 module or not.  Storage: Flash file system size display total capacity of program memory chips,when update program is less than free-space, can update. SD file system display TF total capacity,and relevant use consituation.  Network: Display PTZ’s MAC address\IP\Sub-way mask\gatway information.

  • Page 36: Chapter Iii Osd Menu Setup

    Chapter III OSD menu setup (This menu can display on screen and IE interface,call 64 preset or click PTZ which in the middle of direction control, as below menu, up and down joystic control move, left and right is enter or choose menu) 3.1 Main menu ...
  • Page 37 D-zoom: Setup digital zoom. ON/OFF   Zoom Speed: Zomm speed 0-7 adjustable.  Focus Mode: Camera focus mode,auto/manual  ICR Mode: Low light setup, day/night/auto AE Mode: Manual/Auto/shutter priority/IRIS  priority  Shutter Speed: Shutter level:1-10000 for option.  Exp Comp: Exp Comp setup, ON/OFF ...

  • Page 38: Ptz Setup

     NR: Denoise, ON/OFF/AUTO NR Mode: Setup denoise mode: 2D,3D,3D+,strong noise reduction,superposition of noise reduction  NR level: 0-168 level  EE: Edge enhance, ON/OFF  EE level: adjust Edge enhance level,0-31  Brightness: -128-+127 adjustable  Contrast: Adjust contrast -128-+127 ...
  • Page 39  Add: Enter to patrol edit sub-menu.  Preset: Current position 1-255 preset for option.  Dwel time: Patrol this preset can stop time 5S～ 60S for option.  Patrol Speed: Patrol to next position’s speed. 1-8 step for option. ...
  • Page 40 Clear: Clear scan setup and return.   Bck to previous menu.  Pattern Setting: Enter pattern setup sub-menu  Pattern No. Edit pattern,1-8 for option.  Tilt: Enter pattern No.,can setup title for pattern,it has Chineese,English,No.punctuation mark..etc.  Record: Record pattern self-learning. Choose start position, press”OPEN” key to continue record. ...
  • Page 41  Schedule setting: Enter schedule setting sub-menu  Schedule No.: Schedule 1-8 for option. Title: Enter schedul No., can setup schedule title,it has Chineese,English,No.punctuation mark..etc.  Date: Schedule edit,setup Sunday--Satday  Time: Schedule time edit Start hour: Start time setup, hour choose Start min: Start time setup, min.
  • Page 42 Alarm setting: Enter alarm setup sub-menu   Alarm:1 alarm  Title: Enter alarm title, can setup alarm title,it has Chinese,English,No. Punctuation mark...etc  Alarm Trigger: Choose trigger alram’s condition, normally open /Normally close for option.  Priority: Setup alarm priority. Higest/High/Midele/Low for option. ...
  • Page 43 Peripheral: Enter advanced setup sub-menu   NV mode: Auto,ON,OFF  Nv CYCLE: Night vision surveillance cycle time setup,1-60s for option.  NV Threshold: Photosensitive resistance strength 0～255 for option.. When light is lower than this value, night vision device will auto open. ...

  • Page 44: S Y S T E M S E T U

    dome will back to the orignal point. When PTZ or speed dome in a patrol , will not back to oringal point. If you no need it back to orignal point, please let this option OFF.  Park time: Set park action time,means in how many time if PTZ or speed dome do not be controled, it iwll be back to orignal point, 1-99mins for option. ...
  • Page 45 OSD display: Display and hide for option.   OSD position: Default Top left,Middle top, Top right, left Middle,right,left bottom, right bottom for option.  Font Size: 12-28 for option  Edge: 0-128 for option. Margins: Save setting and retun. ...
  • Page 46  Input format:Setup input format:1080P25/1080P30/720P50/720P60 for optiona.  OK: Save and return.  Cancel: Cancel setup and retun.  Compas setting: Setup North. Correct setup north, When PTZ run, can display current direction. Total 8 direction can display.  Factory setting: Setup back to factory setting sub-menu. ...

  • Page 47: Chapter Iv Ptz Installation Description

    Chapter IV PTZ Installation Description 4.1 Safety measures 4.1.1 Qualification of installation or maintenance workers  Submission of qualification certificate for CCTV system install or maintenance, and qualification certificates for relevant works (such as high altitude operations etc), these workers must have the following elementary knowledge and skills; ...

  • Page 48: Cabling Safety

    4.4 Cabling safety  The signal transmission lines must keep a distance of at least 50m from high-voltage devices or high-voltage cables.  Outdoor cables should be laid under eaves if possible.  In open fields, cables shall be laid in sealed and earthed underground steel pipes and aerial cabling is forbidden. ...

  • Page 49: Installation Methods

    4.5.4 PTZ power-on self-test To ensure normal operation of the PTZ on the installation site, please connect the system control lines, video lines and power lines of the PTZ into the corresponding sockets before installation (the wiring shall strictly comply with the labeling instructions of system control lines, video lines and power lines) and do power-on self-test.

  • Page 50: Installation Description

    B、Wall mounting – applicable to ordinary infrared, infrared synchronous and laser synchronous ordinary PTZ The above two installation methods are described in details in this manual below. 4.7 Installation description Preparatory work: 1）Remove the PTZ pedestal. 2）Toggle the corresponding information by referring to the schematic of the toggle switch regarding to address, protocol and baud rate. 3）Install the pedestal and ensure the tightness of the waterproof seal ring (Fig.
  • Page 51 Fig. 2 4.7.1 Installation of the sun shade: 1）Take 4pcs M3×5 cross pan head stainless steel screws, 4pcs 3.2×8×0.7 PTFE washers and a protective cover from the accessories. 2） Use the 4pcs screws and 4pcs washers (one screw corresponds to one washer) to fix the sun shade onto the lifting posts of the central frames on the two sides (Fig.
  • Page 52 Fig. 4 Fig. 5 3）Use 4pcsM8×30 stainless steel bolts each provided with one spring washer and one flat washer to fix the shock absorber to the PTZ pedestal, as shown in Fig. 6: Fig 6 4.7.3 Wall mounting Take out the wall bracket from the package, drill four M8 metal expansion bolt installing holes on the installation surface by an electric impact drill by using the chassis of the wall bracket as a sample plate, and insert expansion tubes into the holes (Fig.

  • Page 53: Outgoing Lines Of Ptz

    Fig. 7 Take out the PTZ from the package, run the control line, video line and power line of the system through the bracket and fix the bracket onto the wall with four M8 bolts each provided with one φ8 spring washer and two φ8×φ18 flat stainless steel washers (Fig. 8). Fasten the PTZ onto the wall bracket with four M8×30 stainless steel bolts as well as flat washers, spring washers and nuts (Fig.
  • Page 54 Fig. 10 Note: Marking of alarm lines 2) Outgoing lines of alarm Alarm control lines are connected as shown in Fig. 11. After the PTZ identifies an alarm signal, it may immediately start the camera according to the setting of the program and switch the images of the alarm zone to the main monitor. The dome at the alarm point is adjusted to monitor the preset recording points and record the situation of the alarm zone in the fastest way.
  • Page 55 Fig.11 55 ...

  • Page 56: Annex I: Technical Parameters For Auxiliary Lighting

    Annex I: Technical parameters for auxiliary lighting Infrared illuminant High brightness LEDx36pcs Wavelength 850nm Projection distance >100m Ordinary infrared Power consumption Control of the infrared lamp Auto/manual Life of the infrared lamp >20000h Infrared illuminant Generation-3 semi light source Wavelength 850nm Way to identify the integrated Automatic...

  • Page 57: Annex Ii:troubleshooting

    Annex II: Troubleshooting Problem Phenomenon Possible cause RS485 line port connect wrong. Can’t control PTZ Control protocol,ID or baud rate in RS485 of IP camera not same as IP camera’s IP address had been modified. If yes, please use ONVIF Can’t connect IP camera Discovery Tool to test IP and re-set IP address.

  • Page 58: Annex Iii:24Vac Line Gauge And Transmission Distance Relationship

    Annex III: 24VAC line gauge and transmission distance relationship If the line gauge is specified, and the loss of 24VAC voltage is less than 10%, the recommended maximum transmission distance is shown as table below. (For AC equipment, the maximum permissible voltage loss is 10%. For example: the rated power of one equipment is 80VA, installed at the place 35 feet away from the transformer (10m), the required minimum line gauge is 0.8000mm.
  • Page 59 23（7） 37（11） 59（17） 150（45） 21（6） 34（10） 55（16） 139（42） 20（6） 32（9） 51（15） 129（39） 18（5） 30（9） 47（14） 120（36） 17（5） 28（8） 44（13） 113（34） 16（4） 26（7） 42（12） 106（32） 15（4） 25（7） 39（11） 100（30） 14（4） 23（7） 37（11） 95（28） 14（4） 22（6） 35（10） 90（27） 59 ...

  • Page 60: Annex Iv: Lightning And Surge Protection

    Annex IV: Lightning and surge protection This product adopts TVS pole lightning-proof technology to effectively protect against the damages of pulse signals such as transient lightning below 1.5KW, and surge etc to equipment. However, if mounted outdoor, the necessary protective measures must be provided as required: ...

  • Page 61: Annex V: Maintenance Of The Terms Of Service

    Annex V: Maintenance of the terms of service 1、Warranty terms  Within one year after delivered, if found any defects caused by materials or workmanships, the factory shall be responsible for free repair or replace;  The warranty period of all repaired or replaced parts shall be 90 days since delivered; ...
  • Page 62 PRESET  CALL  SET  51  WIPER STOP  WIPER START  52  DEFOG OFF  DEFOG ON  64  OSD MENU  OSD MENU  65  PATROL 1 START  PATROL 1 QUICK SETUP  66  PATROL 2 START  PATROL 2 QUICK SETUP  67  SCAN 1 START  SCAN 1 LEFT LIMIT  68  SCAN 2 START  SCAN 1 RIGHT LIMIT  69  PATTERN 1 START  SCAN 2 LEFT LIMIT  70  PATTERN 2 START  SCAN 2 RIGHT LIMIT  71  ICR DAY     72  ICR NIGHT  PARK ACTION=SCAN 1  73  ICR AUTO  PARK ACTION=PATROL 1  74  WIPER RUN ONCE ...
