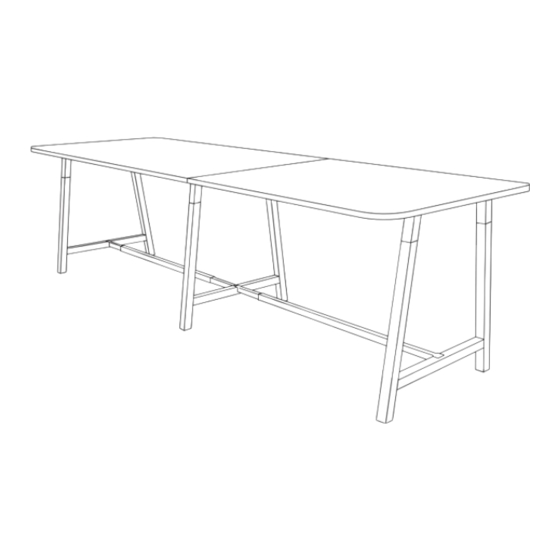

- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 10...
-
Page 2: Need Help
www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm COMPONENTS Table top x2 Leg Quadro wood A (Half leg) x3 Leg wood A add on x6 Leg bottom beam x3 Upper beam x2 Lower beam x2 Plastic bracket x8... - Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 01 Plastic bracket holes facing to the other side. You will notice two colored Both legs must have the colour Insert the Leg wood add on (C) into the stickers located on each leg.
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 02 Now use corner pads (N) You will notice two holes in each Now insert the Leg bottom beam (D) Leg wood add on (C).
- Page 5 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 02 STEP 01 TOP VIEW Using Allen Key provided, attach 2 plastic brackets (G) per exterior leg, Using Allen Key provided, attach M8x20MM Socket head (J)- and 4 plastic brackets for the shared leg (as per picture above) using screw socket half way into leg for all legs...
- Page 6 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 03 Adjust extendable beam (E) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800...
- Page 7 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 04 Adjust extendable beams (F) to desired length. Remove plastic inserts Loosen 2 bolts on beam using allen key Extent lower beam to the same distance as upper beam Insert plastic inserts back into the beam Page 7 of 10...
- Page 8 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 05 TOP VIEW STEP 06 Attach Upper Beams (E) to legs using nut insert. Frame looks like this. Using Allen Key, attach Upper Beams (E) See point attached with Sockets (I).
- Page 9 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 07 Frame looks like this. Using Allen Key. Tighen Sockets (I) on the Lower Beams (F) using Allen Key (O). Insert plastic spacers to improve regidity. Attach two Sockets (I) to the side of each lower side beams (as shown in the picture).
- Page 10 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 Radius Corners Sizes: 3200x1100 mm STEP 08 TABLE TOP BOTTOM VIEW nut insert nut insert nut insert nut insert Place desktops ontop of frame. Nut inserts in top will align with plastic joiner brackets using M6x30MM (L) sockets attached top to frame.
