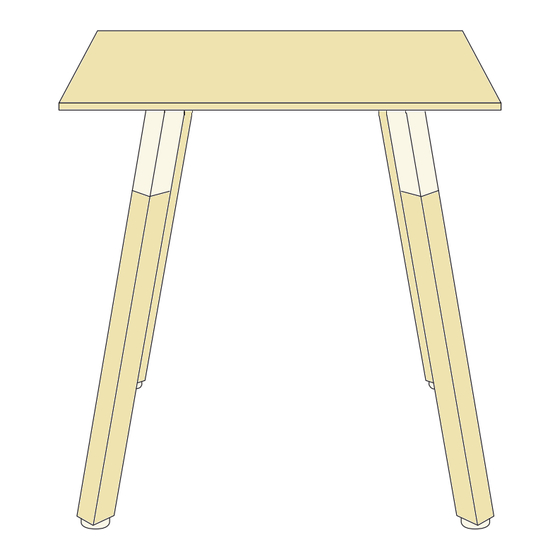

- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood CT Need help! Single Legs Call us on 1300 527 665 Sizes: 800D, 1000D Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 5...
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood CT Need help! Single Legs Call us on 1300 527 665 COMPONENTS Table top x1 Counter table Leg Quadro Wood x4 SCREWS Wood Screws x16 M6x30mm Mushroom head screws x4 Allen key x1 Page 2 of 5...
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood CT Need help! Single Legs Call us on 1300 527 665 STEP 01 VIEW FRONTAL VIEW Using Allen Key provided, attach Mushroom Head Screw (D) for all legs as shown in the illustration. Page 3 of 5...
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood CT Need help! Single Legs Call us on 1300 527 665 STEP 02 Ask a second person to help turn the table and base over. Screw the table tops to the bases using woodscrews (C) through the following holes.
- Page 5 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood CT Need help! Single Legs Call us on 1300 527 665 If you purchased with wheels Ask a second person to help turn the table and base over. Screw the table tops to the bases using woodscrews (D) through the following holes.
