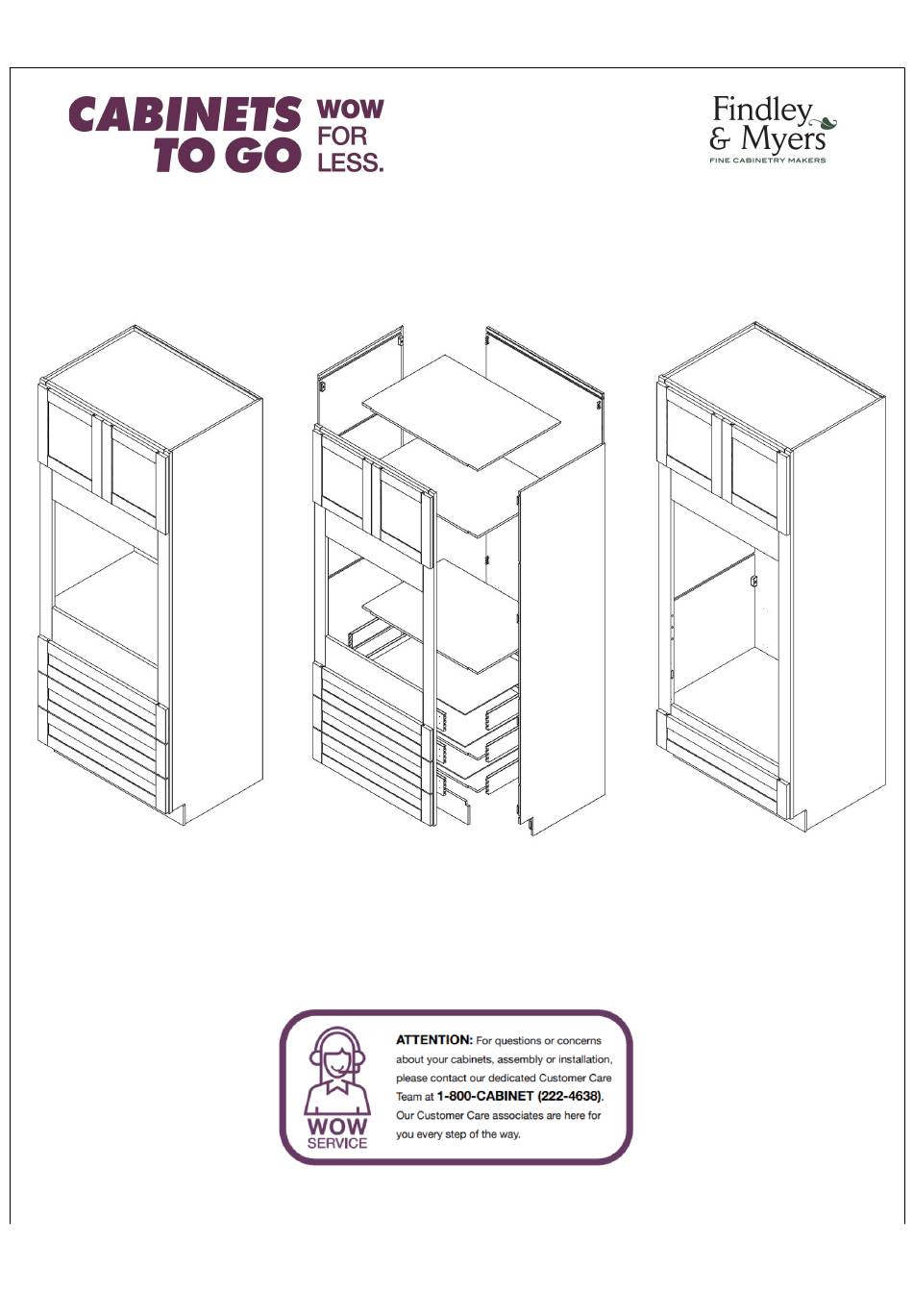

- Page 1 ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for all Single/Double Oven Cabinets ITEM# OC3384, OC3390 Page 1...
-
Page 2: General Instructions
►General Instructions: Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. Carefully read the instructions before starting the installation. During assembly, please follow all generally accepted safety procedures. Failure to adhere to the following instructions will invalidate the warranty and Cabinets To Go will decline any responsibility for any damages caused. Any installation which does not correspond to the instructions may result in defects, malfunctioning parts, significant damage and/or injury. Before the assembly begins, check that all appropriate and required plumbing and electrical connections exist. Before drilling, make absolutely sure that there are no pipes (gas, water,electricity, heating, etc.) at the drilling location. Cabinets To Go will not be held responsible for failure to follow these instructions. PRIOR TO ASSEMBLY, PLEASE MAKE SURE YOU HAVE ONE FACE FRAME BOX AND ONE CARCASS BOX, WHICH HAVE ALL THE PARTS IN THE QUANTITIES MENTIONED BELOW. IF YOU ARE MISSING ANY PARTS, PLEASE STOP AND CONTACT CUSTOMER CARE IMMEDIATELY AT 1-800- CABINET. - Page 3 SKIP THIS PAGE FOR SINGLE OVEN CABINETS If installing a double oven, you will want to NOTE: perform this step first to prepare the frame. Using a saw, cut the frame as shown below to remove the un-needed rails. { NOTE:Lay Frame and Doors on a flat smooth soft work surface to prevent damage.
- Page 4 Install the glide brackets (d) to the Back Panel (C) using screws (b). (Figure 1) { NOTE: Lay Back Panel on a flat smooth soft work surface to assemble. } Figure 1 Assemble the Side Panels (A,B) onto the Frame (E) by connecting the male and female cam locks and using a screwdriver to turn the lock clockwise.
- Page 5 Insert the Top & Bottom Panel (D) into the grooves of the Side Panels and Frame. (Figure 3) Figure 3 Install the toe kick (G) onto the side panels (A,B) and lock the cam locks. (Figure 4) Figure 4 Page 5...
- Page 6 Insert the Fixed Shelves (F) into the grooves of the Side Panels and Frame. (Figure 5) Figure 5 Install the Back Panel (C) onto the side panels (A,B) and lock the cam locks. (Figure 6) Figure 6 Page 6...
- Page 7 Assemble the drawer front (H) onto the drawer box front using the supplied screws (a). Place bumpers (c) onto the corners of the drawer front. (Figure 7) Figure 7 Finish assembling the drawer boxes. (H) (Figure 8) { NOTE: You may use a rubber mallet if needed to seat the dove tails.
- Page 8 Attach the Drawer Clips (e) using screws (b) onto the bottom of the drawers. (H) (Figure 9) Figure 9 Attach the Drawer Glides (I) using screws (b) onto the frame and glide brackets installed in Step 1. (Figure 10) Figure 10 Page 8...
- Page 9 Install the remaining bumpers (c) onto the corners of the doors where they come in contact with the frame. (Figure 11) Figure 11 Insert the assembled drawers (H) onto the glides. Push in until you hear clicks from the drawer clips locking into the glides.
-
Page 10: Maintenance
►Maintenance For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaners containing acetone, chlorine or strong bleach. Also, do not use tools as scrapers, metallic brushes, and other products which can scratch or tarnish surfaces. Under no circumstances should you use chrome cleaner on chrome-plated or brass trim, hinges, handles, sockets etc.
