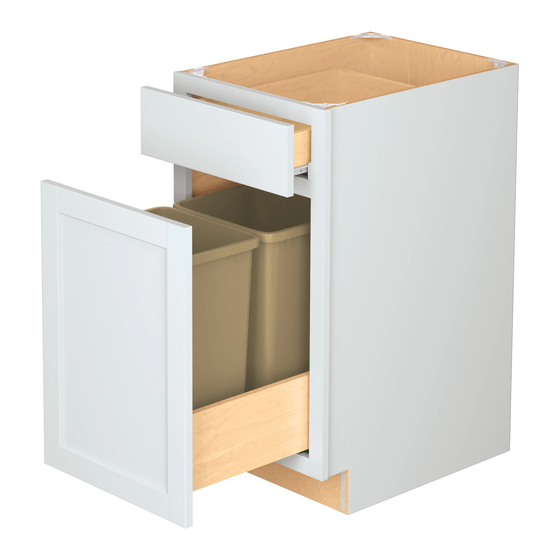

CABINETS TO GO Findley & Myers BC12 Assembly Instructions Manual
Base cabinets
Hide thumbs
Also See for Findley & Myers BC12:
- Assembly instructions (5 pages) ,
- Assembly instructions manual (8 pages)
Related Manuals for CABINETS TO GO Findley & Myers BC12
Summary of Contents for CABINETS TO GO Findley & Myers BC12
- Page 1 ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for all Base Cabinets ITEM# BC12, BC15, BC18, BC21 Page 1...
-
Page 2: General Instructions
►General Instructions: Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. Carefully read the instructions before starting the installation. During assembly, please follow all generally accepted safety procedures. Failure to adhere to the following instructions will invalidate the warranty and Cabinets To Go will decline any responsibility for any damages caused. Any installation which does not correspond to the instructions may result in defects, malfunctioning parts, significant damage and/or injury. Before the assembly begins, check that all appropriate and required plumbing and electrical connections exist. Before drilling, make absolutely sure that there are no pipes (gas, water,electricity, heating, etc.) at the drilling location. Cabinets To Go will not be held responsible for failure to follow these instructions. PRIOR TO ASSEMBLY, PLEASE MAKE SURE YOU HAVE ONE FACE FRAME BOX AND ONE CARCASS BOX, WHICH HAVE ALL THE PARTS IN THE QUANTITIES MENTIONED BELOW. IF YOU ARE MISSING ANY PARTS, PLEASE STOP AND CONTACT CUSTOMER CARE IMMEDIATELY AT 1-800- CABINET. - Page 3 Assemble the Side Panels (A,B) onto the Frame (E) by connecting the male and female cam locks and using a screwdriver to turn the lock clockwise. (Figure 1) {NOTE: Lay Frame and Door on a flat smooth soft work surface to assemble.} Figure 1 Install the glide brackets (f) to the Back Panel (C) using...
- Page 4 Insert the Bottom Panel (F) into the groove of the Side Panels and Frame. (Figure 3) Figure 3 Install the toe kick (G) onto the side panels (A,B) and lock the cam locks. (Figure 4) Figure 4 Page 4...
- Page 5 Install the Back Panel (C) onto the side panels (A,B) and lock the cam locks. (Figure 5) Figure 5 Insert the shelf brackets (a) into the side panels (A,B) in the location of your choosing. Install the shelf (F) onto the brackets. (Figure 6) Figure 6 Page 5...
- Page 6 Attach the Drawer Glides (I) using screws (c) onto the frame and glide brackets installed in Step 2. (Figure 7) Figure 7 Assemble the drawer front (H) onto the drawer box front using the supplied screws (c). Place bumpers (d) onto the corners of the drawer front as shown.
- Page 7 Finish assembling the drawer box. (H) (Figure 9) { NOTE:You may use a rubber mallet if needed to seat the dove tails. } Optional Tools: Rubber Mallet Figure 9 Attach the Drawer Clips (g) using screws (c) onto the bottom of the drawer.
- Page 8 Install the corner brackets (e) using screws (c) in the four top corners. (Figure 11) Figure 11 Install the remaining bumpers (d) onto the corner of the door where it comes in contact with the frame as shown. (Figure 12) Figure 12 Page 8...
-
Page 9: Maintenance
Insert the assembled drawer (H) onto the glides. Push in until you hear clicks from the drawer clips locking into the glides. (Figure 13) Figure 13 ►Maintenance For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaners containing acetone, chlorine or strong bleach. Also, do not use tools as scrapers, metallic brushes, and other products which can scratch or tarnish surfaces.
