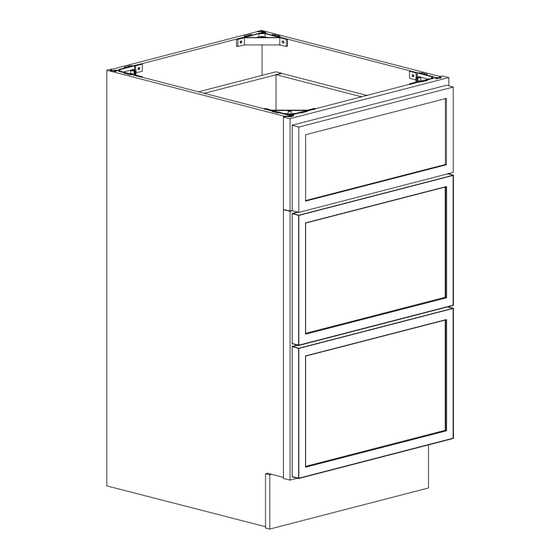

- Page 1 Base Cabinet ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for Base Cabinets DC312 DC315 DC318 DC321 DC324 DC330 DC336...
-
Page 2: Table Of Contents
General Instructions: ► Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. - Page 3 Instructions: ► Place the side panel (A) face down on a flat soft working surface to ensure that the face is not scratched or damaged. (Figure 1). Install the Back Panel, bottom,toe kick: Insert the back panel (B), the bottom (C) and Toe kick (D) into the groove of the side panel (A) and click it into place.
- Page 4 Install the framel: Insert the frame (F) into the groove of the side panel (A), bottom (C). Press down until they click into place. (Figure4) Figure 4 5. Assemble 4 plastic corner by screwdriver and 8 screw 1/2" (Figure 5)
-
Page 5: Bback Panel
Assemble the drawer 1 (X1) Install the drawer front into grove of drawer Install the drawer bottom into drawer box back, bottom, click into place (Figure 2) click into place (Figure 1) Figure 2 Figure 1 Asemble screw 1" into drawer back with drawer Install the drawer side into drawer back, drawer side and drawer front with drawer side(Figure 5) box back and front, click into place (Figure 3) -
Page 6: Aside Panel
Assemble the drawer 2(X2) Install the drawer front into grove of drawer Install the drawer bottom into drawer box back, bottom, click into place (Figure 2) click into place (Figure 1) Figure 2 Figure 1 Asemble screw 1" into drawer back with drawer Install the drawer side into drawer back, drawer side and drawer front with drawer side(Figure 5) box back and front, click into place (Figure 3) -
Page 7: Mdrawer Box Bottom
Assemble the drawer runner inside of cabinet with 2 screws 9/15" (e) for each side Put plastic block into free hole in the back panel (B) .(Figure 8) Figure 8 Assemble 3D locking device with 3 srews 6/15", to move out the slide and put drawer to click into the hook of slide with the hole in back side of drawer back . -
Page 8: Plastic Corner
aintenance: ► M For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaner containing aceton, chlorine or strong bleach. Also, do not use tool as scrapers, metallic brushes, and other products which canscratch or tarnish surfaces. Under no circumstances should you use chrome cleaner on chrome-plated or brass trim, hinges, handles, sockets etc.
