Mitel 5330 Manual

P S
R O G R A M M I N G
Blue text = display prompt.

Press the blue

Press Settings
The display updates
(yours may look different than shown)
Prompts appear in the Information
(top) portion of the screen.
The Footer shows available options

Press Programmable Keys

Select a key to program

Assign a feature to this key.
Note: There are 6 pages of options. Many will not work due to system settings.

Press Speed Call

Press Edit Info
Enter letters much as you would on a cell
phone. Multiple presses of a key on the
keypad will cycle through lower-case
letters first, then upper-case letters.
Pause and the letter is inserted.
Caution: A slight pause may insert the wrong letter.
Use Backspace to correct.
Press   to insert a space.

When finished entering the
name press Edit Number

Use the keypad to enter an internal
extension, or enter .9.
plus the rest of the number

Press OK when done

Press Save to save the entire entry

Press Close if done, or begin to program another key

Press Close again to exit the Settings menus
SUPERKEY... May appear on one of your Key-pages. Use for Ringer Adjustments.
(Use the Applications key for all other programming, not Superkey functions.)

Press Superkey (Phone Book appears as shown. Use to lookup
names and extension numbers in your organization.)

Press No to scroll through menus until Ringer Adjust? appears.

Press Ring Adjust, then Ringer Pitch (or Ringer Vol).

Use the volume up/down keys to make selection/changes

Press Superkey when done to exit the menus.
- C K
P E E D A L L E Y S
Green text = key press.
Applications key
.
on any page
for an outside line,
...
3 Key-Pages
3 Key-Pages
1 Key-Page
D
Status: Displays time, date, and icons indicating feature states.
Information: Caller ID, Redial number, and instructions when using applications.
Softkeys: Access specific call control features, which are context sensitive. These keys are
non-programmable, specific to the current state of the phone.
Programmable Keys: Launch specific features/functions. Use the Settings application to
M

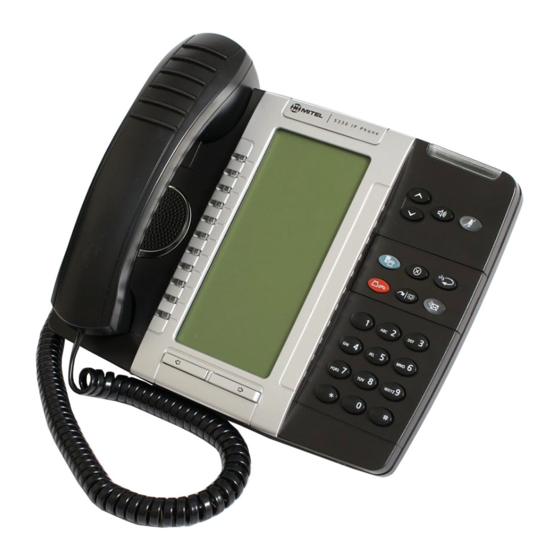

ITEL 5340, 5330, & 5320
IP Phones
Change Volume.
Applications...
Used for
Programming.
Page Navigation
W & K
EFAULT INDOW EYS
program these keys (some will already be
programmed for you).
Footer: Displays page number / indicator.
Page Keys: Navigate key pages
NOTE: The bottom 2 keys on key-page 1 of
Message/Ring Indicator
Up
Speaker Mute
Down
Exit
Applications
Cancel
Redial
Transfer
Hold Message
Conference
(Your display may look different.)
(5340/30)
all phones are your personal lines.
.
