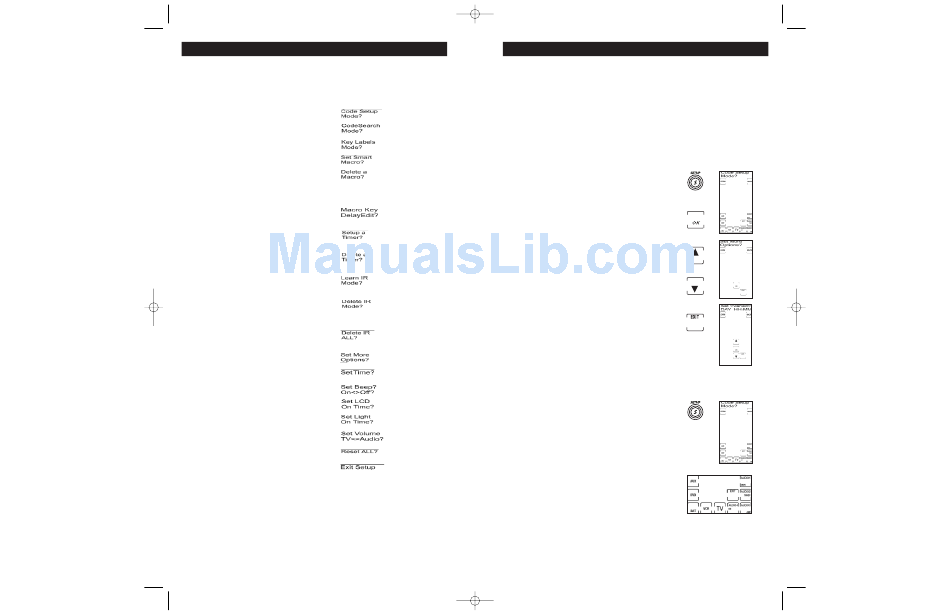

Perform Setup Routine and Procedures
The SETUP key is located towards the lower right-hand side of the RCU1010 unit. The SETUP key
is used to walk you through the steps in setting up the remote. To enter the Setup Mode, press and
hold the SETUP key on the rubber keypad for 2-3 seconds until the LED indicator light remains on.
Successive presses of the SETUP key walk you through all the available setup routines. The following
are the screen selections available in the Setup Mode.
1. Code Setup Mode?
2. Code Search Mode?
3. Key Labels Mode?
4. Set Smart Macro?
5. Delete a Macro?
(Only appears once a Macro
function has been programmed.)
6. Macro Key Delay Edit?
(Only appears once a Macro
function has been programmed.)
7. Setup a Timer?
8. Delete a Timer?
(Only appears once a Timer
function has been set.)
9. Learn IR Mode?
10. Delete IR Mode?
(Only appears once an IR
function has been learned.)
11. Delete IR ALL?
(Only appears once an IR
function has been learned.)
12. Set More Options?
13. Set Time?
14. Set Beep?
15. Set LCD On Time?
16. Set Light (Backlight) On Time?
17. Set Volume TV<>AUDIO?
18. Reset ALL?
19. Exit Setup
To exit the Setup Mode, press and release the LCD EXIT key on the touchscreen. Then press and release
the LCD OK key on the Exit Setup Screen or press and release the SETUP key repeatedly until the LCD
displays the Exit Setup Screen. Press and release the LCD OK key. The remote is now in normal
operation mode.
Programming
The RCU1010 can control up to nine components. In order for the remote to control your components
(TV, VCR, DVD, etc.), you must program it with the corresponding code entry from the Code Lists.
If your TV, VCR, DVD, or satellite receiver is an RCA, PROSCAN or GE brand, the RCU1010 may not
need any programming to control them. To program the codes for your components, you can use one
of three methods: Code List Entry, Code Search or Code Autosearch.
While programming your remote, you may wish to extend the LCD touchscreen display time.
Instructions for this adjustment are below, followed by the three programming options.
Set the LCD Touchscreen Display Time
You can choose the length of time (10, 20, 30...90 seconds) that the touchscreen remains on after the last
keypress. The power-on default is 10 seconds from the last keypress, after which the unit automatically
turns off. To adjust this duration in 10-second increments up to 90 seconds, follow these steps:
1. Press and hold the SETUP key until the touchscreen
shows the Code Setup Mode? Screen. Release the
SETUP key.
2. Press and release the SETUP key repeatedly until
the Set More Options? Screen appears.
3. Press and release the LCD OK key. The Set Time?
Screen now appears in the LCD.
4. Press and release the SETUP key repeatedly until the
Set LCD On Time? Screen appears. Press and release
the LCD OK key.
5. The LCD displays the LCD On for 10 Secs Screen
(or the length of time previously programmed). Press
and release the LCD UP or DOWN ARROW keys to
select the desired On Time. You can only change the
time in 10-second increments from 10 to 90 seconds.
Press and release the LCD OK key twice to confirm
and save your settings.
6. The Set More Options? Screen is displayed. The
Touchscreen Display Time setting is now complete.
To exit the Setup Mode, press and release the EXIT key,
followed by the LCD OK key on the Exit Setup Screen.
Program the Remote Control Using Code List Entry
This is the quickest and easiest programming method. Code Lists are specified in the User's Guide.
1. Manually turn on the component to be controlled
(TV, VCR, DVD, etc.).
2. Press and hold the SETUP key until the touchscreen
shows the Code Setup Mode? Screen. Release the
SETUP key.
3. Press and release the desired component key
(TV, VCR, SAT, etc.) on the touchscreen. For AUX, press
and release the LCD AUX key followed by the desired
component key to be programmed.
The AUX key automatically defaults to CABLE
Note:
mode unless another selection is made.
4. Enter the three-digit code for your component brand
from the corresponding Code Lists at the back of the
User's Guide. If your brand has more than one code
listed, begin with the first code. When a valid code
from the list is entered, the LCD displays the Code
Save Success Screen, followed by the Code Setup
Mode? Screen.
OR
